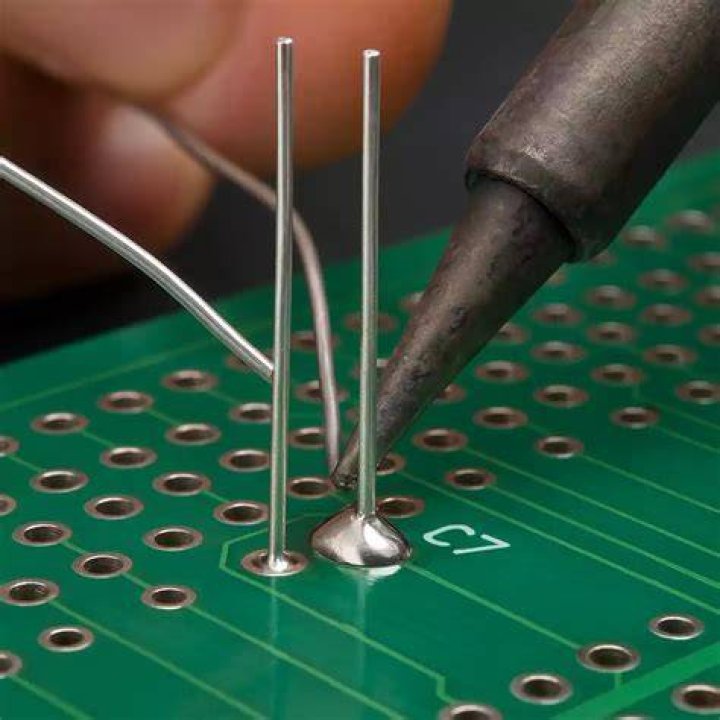

Soldering is a joining process used to join different types of metals together by melting solder. Solder is a metal alloy usually made of tin and lead which is melted using a hot iron. The iron is heated to temperatures above 600 degrees fahrenheit which then cools to create a strong electrical bond.

What is the difference between brazing soldering and welding?

The difference between brazing and soldering is a temperature of 450 degrees centigrade used in brazing, which is much higher than soldering temperature. Unlike welding both soldering and brazing heat the filler metal sparing the base metal from melting and joins the two metals together.

What is the importance of soldering?

Soldering process is used in the electronics industry to bond components together, forming one or more electrical connections. Soldering serves two functions: mechanical support—holding components of an assembly together, and electrical support—forming required electrical connections within a circuit.

What is the brazing process?

brazing, process for joining two pieces of metal that involves the application of heat and the addition of a filler metal. This filler metal, which has a lower melting point than the metals to be joined, is either pre-placed or fed into the joint as the parts are heated.

What are the types of soldering?

• soft soldering, which originally used a tin-lead alloy as the filler metal.
• silver soldering, which uses an alloy containing silver.
• brazing which uses a brass alloy for the filler.

What are the benefits of soldering and brazing?

• Low temperature. …
• Joints can be made be permanently or temporarily. …
• Metals of dissimilar can be joined. …
• Speed of joining. …
• Less chance of damaging parts. …
• Parts of varying thickness can be joined. …
• Easy realignment.

Where do we use brazing?

Ideal for joining dissimilar metals, brazing is a commercially accepted process used in a wide range of industries due to its flexibility and the high integrity to which joints may be produced. This makes it reliable in critical and non-critical applications, and it is one of the most widely used joining methods.

Which is stronger soldering or brazing?

It can be distinguished from soldering by temperature: in brazing the filler metal melts above 840 °F (450 °C). … Because of the higher temperatures a brazed joint is stronger than a soldered joint.

What material is used for brazing?

Base materials suitable for brazing include aluminium, copper, gold, nickel, silver and steel. Primary filler metals used in brazing include aluminium, cobalt, copper, gold, nickel or silver. These primary filler metals are often alloyed with other elements to obtain desirable properties and performance.

What are the steps in soldering?

1. Step 1 – Melting the Solder. This is the very first step in the entire wave soldering process. …
2. Step 2 – Cleaning the Components. This is a very crucial step to be carried out. …
3. Step 3 – Placement of the PCB. …
4. Step 4 – Application of Solder. …
5. Step 5 – Cleaning.

Article first time published on

What are the 3 types of soldering?

In summary, there are three main types of solder: lead-based, lead-free, and flux. Lead-based solders are the best understood, are reliable, and preferred in mission critical applications such as aerospace or medical electronics.

What are the 4 types of solder?

Ans: The three main types of solder are lead-free solder, lead-based solder, and flux-core solders. There is another type known as silver alloy solder. These types are made on the composition of alloys. Apart from this, there are other solder types depending on the form, core style, and application.

What is brazing and types of brazing?

Brazing is a metal-joining process in which two or more metal items are joined together by melting and flowing a filler metal into the joint, with the filler metal having a lower melting point than the adjoining metal. Brazing differs from welding in that it does not involve melting the work pieces.

Which flux is used for brazing?

White flux is useful for brazing copper, brass, steel, stainless steel, and nickel alloys. It has an active temperature range of 1050 -1600°F (565 – 870°C).

Can AC lines be soldered?

Solders are typically considered a plumbing product. But, did you know low-temperature tin/silver solders have higher strength and ductility than typical plumbing solders? This makes them suitable for most residential HVAC connections.

What is flux used for in soldering?

The main purpose of the flux is to prepare the metal surfaces for soldering by cleaning and removing any oxides and impurities. Oxides are formed when metal is exposed to air and may prevent the formation of good solder joints.

Is soldering a welding process?

Like many sheet metal terms, soldering and welding are used interchangeably. … The main difference between welding and soldering is melting. In soldering, metal fabricators heat the metal to be bonded but never melt them. In welding, metal fabricators melt the base metal.

What are the 3 basic principles of soldering?

Key Points for Good Soldering There should be clearly visible lines. There should be correctly shaped fillets. Contact angle θ should be small. There should be no cracks or pinholes.

What is the best solder?

• Kester Solder. First on our list is the Kester Solder, a 0.031 inches diameter steel-based solder with very high conductivity. …
• Maiyum Solder Wire. Next on our list is the Maiyum Tin Lead solder. …
• Wyctin Solder Wire. …
• Austor Solder Wire. …
• Canfield Solder. …
• Hgmzzq Solder Wire.

What is flux in SMT?

In soldering, the function of flux is to chemically react with oxides and quickly produce a fresh, oil-free, and oxide free surface at soldering temperatures so that intermetallic bond can take place. …

Why is tin used in solder?

Benefits of Tin Lead Wire Solder When tin is added into the wire, it provides a lower melting temperature. A lower melting temperature for solder is required when the parts being joined can be negatively impacted at higher temperatures.
