DesignationBase major diameter (thread external)NameE1717 mm (0.669 in)Intermediate Edison Screw (IES), C9E1818 mm (0.709 in)E2626 mm (1.024 in)(Medium one-inch) Edison Screw (ES)E2727 mm (1.063 in)(Medium) Edison Screw (ES)

Is E17 same as candelabra?

The designation refers to the diameter of the base, in millimeters. Candelabra bases are smaller than conventional A-lamps which use a medium base (E26 or E27). … Intermediate base lamps, E17, are far less common than candelabra and can be found in small table lamps, novelty fixtures, and ceiling fans.

Does E26 fit E17?

Enlarge the intermediate socket (E17) to medium socket (E26). Widely used. Works with incandescent, CFL (Energy Efficient) bulbs and LED bulbs.

How do I know what base my bulb is?

To know the base of a light bulb, identify if it is a screw type that has threads around the base, or a pin type that has 2 points of contact on the base. After that, measure the diameter of the screw base, or the distance between the two pins, in millimeters.

What is Type A bulb?

Type A bulbs, also called standard bulbs, are the classic, pear-shaped bulb. They’re used in both residential and commercial applications and screw in using an Edison screw. The most common of these bulbs are lamp bulbs or A19, which are used in all lamps, and A15 appliance bulbs.

Is E12 a candelabra base?

E12 is most commonly used for decorative, candelabra light bulbs. With a smaller screw base, more decorative and compact form factors can be achieved in elaborate ceiling and chandelier lighting fixtures. As a result, the wattage ratings for incandescent E12 bulbs are typically 40W or less.

What is a B11 base?

E12 is the description of the base type of the bulb and is the candelabra Edison screw base. B11 is the description of the bulb type and the candle shape of the glass body. The letter refers to the shape of the bulb, while the number refers to the diameter.

Are E26 and G25 the same?

The G25 shape is usually pared with a E26 (medium) base, similar to that of a standard A19 and come in outputs ranging from 25 watts to 60 watts. G25 LED Bulb Replacements G25 shaped LED bulbs now exist and are a great replacement for decorative and vanity applications.

What size base is a normal light bulb?

The standard light bulb base type is the screw type and has a diameter of 26 millimeters to 27 millimeters. These size connectors are given the name E26 and E27 respectively because they are edison screw connections with a diameter of 26 and 27 millimeters.

Are E12 and E17 the same?

E12 is the smaller “candelabra” base. It’s used for nightlight bulbs, and sometimes for decorative light bulbs used in chandeliers and over bathroom mirrors. E17, “intermediate” base, is in between these two sizes. It’s sometimes used for desk lamps and appliance bulbs, but is not as common.

Article first time published on

Is E17 a medium base?

C9 / E17 / Intermediate Base Bulbs … historically known as the old Christmas light bulb size. Medium / E26 Bulbs (E27 in Europe) … the same size as a standard household bulb.

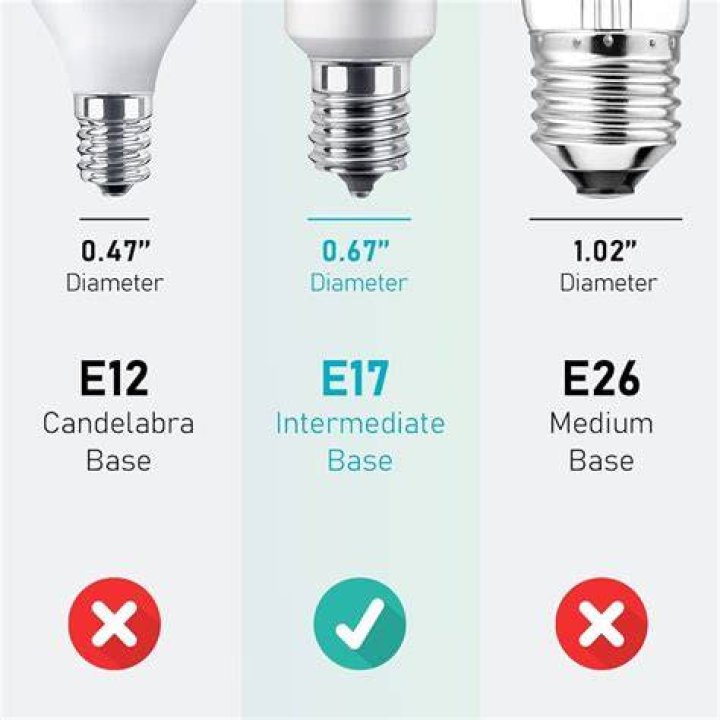

What is an E17 socket?

E17 Intermediate – Edison 17-mm Diameter Like candelabra bulbs with E12 bases, bulbs with E17 bases are used for decorative applications, such as chandeliers, wall sconces, Christmas lights, restaurant pendant lights, ornamental lights, and sign or marquee lights.

What is the difference between B10 and B11 light bulbs?

Technical Jargon: Shape: B10 (1 1/4″ diameter) or B11 (1 3/8″ diameter) Base: Medium (E26) or Candelabra (E12) Wattage: 25W to 60W.

Does E12 fit E11?

E11 (mini candelabra) is 11mm in diameter and is a bit smaller than E12 (candelabra) which is 12mm in diameter. E11’s are most commonly used for small, halogen (hot!) bulbs and E12’s for decorative lights. I used these adapters to fit new 60W-equivalent LED lights into my old halogen fixtures.

What size is B11 bulb?

ShapeDiameter in InchesApprox. Length (Inches)B101-2/83.75-3.9B111-3/83.88C77/82C91-1/82.75-3

Can I use any E12 bulb?

When you need an E12 bulb, you’re looking for that standard screw-in base. Using the standard Edison base makes it easy to mix and match light bulbs and fixtures. As long as you buy the right size of base for your fixture, the bulb should work.

Is E26 bulb same as A19?

An E26 screw-in bulb has a 26 millimeter diameter screw as its mounting method, but the lamp itself can be of a variety of shapes and sizes. The standards that govern the dimensions and design of A19 light bulbs also dictate that it must use an E26 screw base. In other words, all A19 light bulbs also have an E26 base.

How big is an E26 bulb base?

Thus a E26 has a 26 mm base diameter.

What do you call light bulbs with small base?

NameCodeDiameter (mm)IntermediateE1717 mmCandelabraE1212 mmMini CandelabraE1111 mmMiniatureE1010 mm

Is A15 the same as E26?

There’s a “bulb size” and a “base size.” The bulb size is self explanatory. The A15’s are smaller bulbs, while the A19’s are larger. They both fit in a standard household medium base (E26 base.) … A15 bulbs are usually recommended in a close quarters area, maybe on a small lamp or something.

What does E26 bulb mean?

The term E26 refers to a light bulb’s cap or base – the bulb component that allows for both electrical and mechanical contact. The letter “E” in E26 refers to Edison Screw, the most standard of lamp bases, while the numerical “26” refers to its diameter in millimeters (approximately 1 inch).

What is the difference between E27 and E26?

E26 stands for 26 mm and the E27 for 27 mm in diameter. These two standards are interchangeable, meaning a US E26 will fit in a European E27 base, and E27 will fit in a E26 base. The only difference is the voltage (for light bulbs). … Still, it’s important to buy the correct bulb certified for use in your country.

Does E12 fit in E26?

JACKYLED E12 to E26/E27 adapters Fit the E12 light sockets of your light fixtures such as candelabra and lights of ceiling fans to work with the standard E26/E27 light bulbs that are commonly found at stores.

Is B11 the same as E12?

E12 describes the base type of the bulb and is the Edison screw base of the lampstand. … B11 indicates the shape of the light bulb, to avoid confusion when shopping. Confusion often arises because these two codes and descriptions are usually found in the SAME bulb.

Are all candelabra bases the same?

A candelabra base and C7 bulb are the same size and are designed to work together. Even though candelabra or chandelier bulbs may look similar in their packages, the base size is not always the same, hence the specific size distinction.

What is a chandelier base?

Candelabra base bulbs can be used in chandeliers, The candelabra base bulb, also known as the candle or torpedo bulb because of its shape, is made for an E12 or a C7 base. With an adapter, it can fit a standard socket (the screw in base).

What is a C10 bulb?

The 120v C10 EmeryAllen retrofit lamp is an energy efficient alternative to incandescent E12 base lamps. … Its long life (15,000 hours = >10x standard bulbs) is ideal for bath lights, pendants, ceiling fixtures, chandeliers, and outdoor lighting applications.
