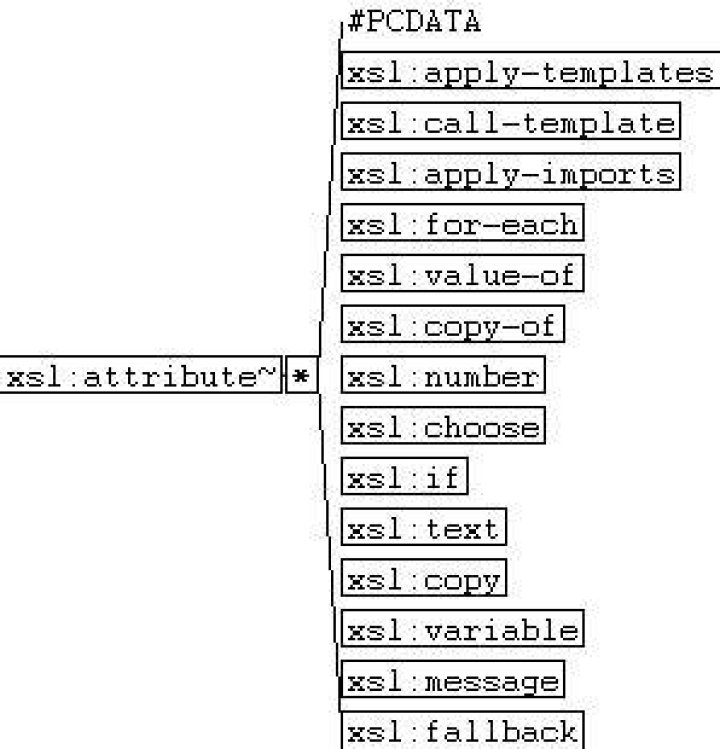

The xsl:attribute element is used to add an attribute value to an xsl:element element or literal result element, or to an element created using xsl:copy. The attribute must be output immediately after the element, with no intervening character data.

What is xsl variable?

Definition and Usage. The <xsl:variable> element is used to declare a local or global variable. Note: The variable is global if it’s declared as a top-level element, and local if it’s declared within a template. Note: Once you have set a variable’s value, you cannot change or modify that value!

What is an xsl tag?

The <xsl:element> element is used to create an element node in the output document.

What does xsl stand for?

In computing, the term Extensible Stylesheet Language (XSL) is used to refer to a family of languages used to transform and render XML documents.

What is xsl value?

The XSLT <xsl:value-of> element is used to extract the value of selected node. It puts the value of selected node as per XPath expression, as text.

How do I concatenate strings in XSLT?

Concat function in XSLT helps to concatenate two strings into single strings. The function Concat() takes any arguments that are not the string is been converted to strings. The cardinality function passed over here in each argument should satisfy zero or one function() respectively.

What is XSL copy?

Definition and Usage. The <xsl:copy> element creates a copy of the current node. Note: Namespace nodes of the current node are automatically copied as well, but child nodes and attributes of the current node are not automatically copied!

How do I view an XSL file?

1. Select File>Open.
2. In the Open dialog, select the XSL file and click Open. The file extension must be . XSL. The selected file opens in the XSL Editor and the XSL Editor menu appears on the menu bar.

Why is XSL important?

XSLT enables you to transform an XML document into another markup language. The most common use of XSLT is to transform information to HTML for display on the Web. But XSLT can also be used to convert information from XML into markup for wireless display, for transmission to PDAs and web-enabled cell phones.

What are the components of XSL explain?

XSL is constituted of three main components: XSLT: a transformation language. XPath: an expression language for addressing parts of XML documents. FO: a vocabulary of formatting objects with their associated formatting properties.

Article first time published on

What is XSL example?

XSL gives a developer the tools to describe exactly which data fields in an XML file to display and exactly where and how to display them. Like any style sheet language, XSL can be used to create a style definition for one XML document or reused for many other XML documents.

What is the role of XSL in processing the XML file?

XSLT is used to transform XML document from one form to another form. XSLT uses Xpath to perform matching of nodes to perform these transformation . The result of applying XSLT to XML document could be an another XML document, HTML, text or any another document from technology perspective.

What is the difference between XML and XSL?

XSL is a powerful language for applying styles to XML documents. … XML also has its own styles language – XSL . XSL stands for Extensible Styles Language and is a very powerful language for applying styles to XML documents. XSL has two parts — a formatting language and a transformation language.

What is xsl apply templates?

The <xsl:apply-templates> element applies a template to the current element or to the current element’s child nodes. If we add a “select” attribute to the <xsl:apply-templates> element, it will process only the child elements that matches the value of the attribute.

What is XML value?

An XML value represents well-formed XML in the form of an XML document, XML content, or an XML sequence. An XML value that is stored in a table as a value of a column defined with the XML data type must be a well-formed XML document.

Which symbol is used to get the attribute value in XSLT?

The <xsl:value-of> element is used to extract the value of a selected node.

How do I copy attributes in XSLT?

1. the use of <xsl:copy-of> to insert source nodes into the output unchanged.
2. the use of the union operator | to select several unrelated nodes at once.
3. that you can copy attribute nodes to a new element as long as it is the first thing you do – before you add any child elements.

What is select in XSLT?

<xsl:value-of> by XML Tutorial. The XSLT <xsl:value-of> element is used to extract a value from an expression defined in the select attribute. The expression defined in the mandatory select attribute is either an XPATH expression (for nodes and/or values) or a variable reference.

Why do we use the select @|node() in the XSL apply templates /> element in an XSLT?

A special characteristic of XML is that attribute nodes are not children of the elements they belong to (although the parent of an attribute is the element it belongs to). This asymmetric relationship makes it necessary to select them separately, hence the @* .

What is normalize space in XSLT?

Introduction to XSLT normalize-space. … The normalize-space function defines a technique used to control whitespace in a given text, and it is a part of the string function in Xpath. The term replaces a sequence of whitespace characters with a single space and returns the string element, and falls in an XPath Function.

How do you count in XSLT?

The syntax says the count function tells the XSLT processor to count each time in which an XML tag found at the XPATH expression. It returns a number value that specifies the number of sequence elements contained in a sequence of items that passes by. The empty set of the count is returned to ‘zero’.

What is position XSLT?

The position() function gives you the position of the current node within the “current node list”, which is whatever was select -ed by the nearest apply-templates or for-each (XSLT 2.0 refers to “items” and “sequences” rather than nodes and node lists but the principle is the same).

How is XSL different from CSS?

XSL is used to refer to a family of languages used to transform and render XML documents. CSS is a style sheet language used for describing the presentation semantics (the look and formatting) of a document written in a markup language.

What is XQuery used for?

Overview. W3C XQuery is a query language for XML. The most common use cases for XQuery involve XML publishing to create XML for Web messages, dynamic web sites, or publishing applications. The original data may be found in XML files, or it may be in a data store such as a relational database.

How do I run an XSL file?

1. Open an XML document in the XML editor.
2. Associate an XSLT style sheet with the XML document. Add an xml-stylesheet processing instruction to the XML document. …
3. On the menu bar, choose XML > Start XSLT Without Debugging. Or, press Ctrl+Alt+F5.

How do I edit an XSL file?

To open an XSL file in the XSL editor, double-click it in the Navigator view, or right-click it and click Open With > XSL Editor. You can edit your XSL files manually, changing the code as necessary. You can use content assist (select Ctrl + Space to invoke it) to help you edit the XSL file.

What is xmlns attribute?

The xmlns attribute specifies the xml namespace for a document. Note: The xmlns attribute is required in XHTML, invalid in HTML 4.01, and optional in HTML5. … This is because the namespace “xmlns= is default, and will be added to the <html> tag even if you do not include it.

What are the three parts of XSL?

• XSLT – It is required for the transformation of the document.
• XPath – It is required for XML document navigation.
• XSL-FO – It is required for XML document formatting.

How does XSL works in programming?

XSLT Processor takes the XSLT stylesheet and applies the transformation rules on the target XML document and then it generates a formatted document in the form of XML, HTML, or text format. This formatted document is then utilized by XSLT formatter to generate the actual output which is to be displayed to the end-user.

What is XSL in Web?

A transformation language for XML documents: XSLT. Originally intended to perform complex styling operations, like the generation of tables of contents and indexes, it is now used as a general purpose XML processing language.

What is the relationship between XML and XSL?

An XSL style sheet is, like with CSS, a file that describes how to display an XML document of a given type. W3C developed XSL because an XML based stylesheet language was needed to transform XML documents. XSL act as an intermediary between the XML elements and Web browser.
