The six chest leads (V1 to V6) “view” the heart in the horizontal plane. The information from the limb electrodes is combined to produce the six limb leads (I, II, III, aVR, aVL, and aVF), which view the heart in the vertical plane. The information from these 12 leads is combined to form a standard electrocardiogram.

What is R wave progression?

CARDIOLOGY, ECG. Poor R wave progression (PRWP) refers to the absence of the normal increase in the size of the R wave in the precordial leads from lead V1 to V6. Normal or expected pattern. As you go from V1 to V6, the height of R wave normally becomes progressively taller from leads V1 through V6.

What is a normal R wave?

The S wave then becomes quite small in lead V6; this is called “normal R wave progression.” When the R wave remains small in leads V3 to V4 — that is, smaller than the S wave — the term “poor R wave progression” is used.

What is V1 lead in ECG?

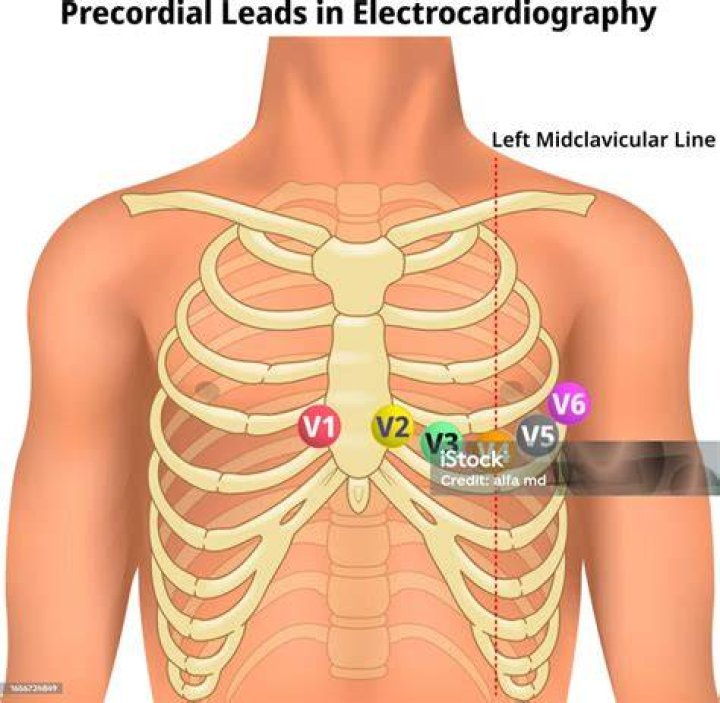

The precordial, or chest leads, (V1,V2,V3,V4,V5 and V6) ‘observe’ the depolarization wave in the frontal plane. Example: V1 is close to the right ventricle and the right atrium. Signals in these areas of the heart have the largest signal in this lead. V6 is the closest to the lateral wall of the left ventricle.

Are V1 V6 unipolar or bipolar?

The electrode leads each have a name. The bipolar extremity leads are called I, II and III. The unipolar extremity leads are called avR, avL and avF, and the chest leads are called V1–V6.

Is poor R progression normal?

Electrocardiographic poor R wave progression (PRWR) is found in patients with anterior myocardial infarction, left ventricular hypertrophy and right ventricular hypertrophy, and is also seen in apparently normal individuals.

How do you read a myocardial infarction ECG?

1. ST segment elevation in the anterior leads (V3 and V4) at the J point and sometimes in the septal or lateral leads, depending on the extent of the MI. …
2. Reciprocal ST segment depression in the inferior leads (II, III and aVF).

How common is poor R wave progression?

Based on the commonly used criteria in practice (R-wave in V3 or V4 ≤2 mm), the prevalence of PRWP in the general population was 1.8% (372/20,739), and based on the Marquette system it was 0.5% (96/20,739).

What causes poor R wave progression on ECG?

Recent studies have shown that poor R-wave progression has the following four distinct major causes: AMI, left ventricular hypertrophy, right ventricular hypertrophy, and a variant of normal with diminished anterior forces. Standard ECG criteria that identify and distinguish these causes have been developed.

How do I know if my ECG is normal?

Normal ECG. A normal ECG is illustrated above. Note that the heart is beating in a regular sinus rhythm between 60 – 100 beats per minute (specifically 82 bpm). All the important intervals on this recording are within normal ranges.

Article first time published on

What can a 6 lead ECG tell you?

It can record heart activity on six different leads at once (I, II, II, aVL, aVR and aVF). It can detect atrial fibrillation (AFib), bradycardia (abnormally low heart rate) and tachycardia (abnormally high heart rate), but promises to also detect other arrhythmias that could indicate heart disease.

How can you tell if an ECG is abnormal?

Abnormal results can signify several issues. These include: Defects or abnormalities in the heart’s shape and size: An abnormal ECG can signal that one or more aspects of the heart’s walls are larger than another meaning that the heart is working harder than normal to pump blood.

What does abnormal R wave mean?

Abstract. Poor R-wave progression is a common ECG finding that is often inconclusively interpreted as suggestive, but not diagnostic, of anterior myocardial infarction (AMI).

What is the R wave amplitude of ECG?

R-wave amplitude R-wave should be < 26 mm in V5 and V6. R-wave amplitude in V5 + S-wave amplitude in V1 should be <35 mm.

What is a terminal R wave?

A terminal R-wave in AVR is often used to identify a TCA overdose, but what does it mean? Along with QRS prolongation, this finding is not specific to a TCA overdose; rather it is pathognomonic for a sodium channel blockade. You will see a wide R-wave in aVR that is greater than 3mm.

What description in lead V6 would be expected with left bundle branch block?

In left bundle branch block it is expected that ST segment depressions and T-wave inversions exist in left sided leads (V5, V6, I and aVL). Simultaneously, V1–V3 should display ST segment elevation and large R-waves. The electrical axis may be unaltered or deviate to the left or (rarely) to the right.

Which of the following is considered a bipolar lead?

Well, the 2 leads situated on the right and left wrist (or shoulders), AVr and AVL respectively, and the lead situated on the left ankle (or left lower abdomen) AVf, make up a triangle, known as “Einthoven’s Triangle”. Information gathered between these leads is known as “bipolar”.

Which lead shows the voltage difference between the left arm and left leg?

Lead II records the difference in potential between the right arm and left leg, with the left leg serving as the positive pole. Lead III records the differences in potential between the left arm and left leg, with the left leg again positive.

What does V1 V2 V3 mean in ECG?

The areas represented on the ECG are summarized below: V1, V2 = RV. V3, V4 = septum. V5, V6 = L side of the heart. Lead I = L side of the heart.

What are the 5 types of myocardial infarction?

ST segment elevation myocardial infarction (STEMI) non-ST segment elevation myocardial infarction (NSTEMI) coronary spasm, or unstable angina.

What is considered an old myocardial infarction?

To report AMI, refer to the following code categories: o Subsequent Myocardial Infarction: Acute myocardial infarction occurring within four weeks (28 days) of a previous acute myocardial infarction, regardless of site. o Old Myocardial Infarction: Reported for any myocardial infarction described as older than four …

What is the meaning of poor R wave progression V4?

Poor wave progression has been variably defined as the failure to of the R wave to progress in amplitude (R<3mm in V3), reversal of the progression (eg R in V2>V3), or delayed transition beyond V4.

What does low R wave mean?

Poor R Wave Progression Overview Poor R-wave progression (PRWP) is a common ECG finding that is often inconclusively interpreted as suggestive, but not diagnostic, of anterior myocardial infarction (AMI). PRWP is defined by R wave height ≤ 3 mm in V3.

What is R wave in heart?

the R wave reflects depolarization of the main mass of the ventricles –hence it is the largest wave. the S wave signifies the final depolarization of the ventricles, at the base of the heart.

What does R wave represents in ECG?

Image: R Wave. As you can see from the diagram, the R wave represents the electrical stimulus as it passes through the main portion of the ventricular walls. The wall of the ventricles are very thick due to the amount of work they have to do and, consequently, more voltage is required.

Is a sinus rhythm normal?

It means the electrical pulse from your sinus node is being properly transmitted throughout the heart muscle. In adults, normal sinus rhythm usually accompanies a heart rate of 60 to 100 bpm. However, it’s possible for sinus rhythm to be faster or slower than this and still be considered normal.

What is anterior myocardial infarction AMI?

Anterior myocardial infarction (AMI) is a common heart disease associated with significant mortality and morbidity. Advancement in diagnosis and treatment options have led to a favorable outcome.

What is normal QT interval?

In general, the normal QT interval is below 400 to 440 milliseconds (ms), or 0.4 to 0.44 seconds. Women have a longer QT interval than men.

What are normal ECG intervals?

PR interval: 120-200 milliseconds. PR segment: 50-120 milliseconds. QRS complex: 80-100 milliseconds. ST segment: 80-120 milliseconds.

How does a KardiaMobile 6L work?

To use the KardiaMobile, you simply place your fingers on the two device sensors for 30 seconds. No electrodes are needed. The results are immediately compiled and then displayed on your smartphone. From there, you have the option to email these results to your doctor.

How do I use the KardiaMobile 6L?

Place your phone or tablet on a table in front of you. Hold the KardiaMobile 6L in your hands with the “A” symbol facing you and pointing up. Now you need to have the single bottom electrode make contact with the bare skin on your left knee or left ankle. At this point the Kardia application will begin your recording.
