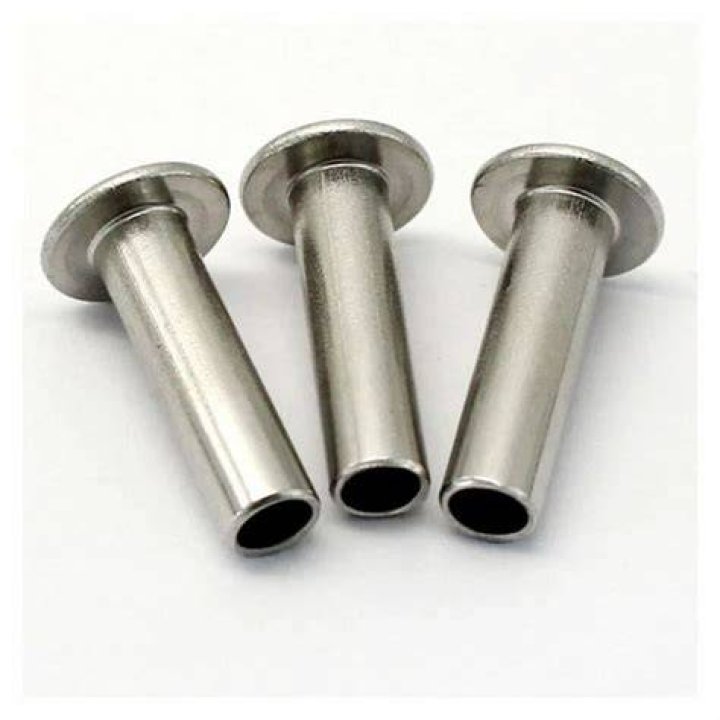

What is tubular rivet

Semi-tubular rivets (also known as tubular rivets) are essentially the same as solid rivets, but with a shallow hole at the tip, opposite the head. This hole causes the tubular portion of the rivet (around the hole) to roll outward when force is applied.

Where are tubular rivets used?

In the world of fasteners, a tubular rivet is a great way to fasten two different pieces together. Rivets are mostly used when you are working with aluminum, thin metal, and even with plastics or leather. Rivets are made to mimic the look of smooth screws when they are set into the metal.

What are the three types of rivets?

There are four basic types of rivets; tubular, blind, solid and split. There are two basic types of threaded inserts; press-in and blind. Also featured are a number of special rivets and fasteners on this page.

What are hollow rivets called?

Rivets with a hollow tip are called semi tubular.

How do you measure tubular rivets?

All rivet lengths, except countersunk head rivets, are measured from the underside of the head to the end of the shank. In applications involving countersunk head rivets, overall length is measured from the top of the head to the end of the shank.

What is a buck rivet?

A bucked rivet is a round fastener that attaches two or more pieces of metal together. The rivet is driven by a pneumatic rivet gun with an attached rivet set shaped according to the shape of the manufactured head of the rivet.

What is a riveter used for?

A hand riveter is a manually operated tool used to install blind rivets. This tool group includes tools which are hand operated and hand powered and those that are hand operated and pneumatically powered. Both types are used to install blind rivets and both function in the same way.

How do you size semi tubular rivets?

The rivet shank diameter can be determined by comparing it to the thickness of the material stack up. Optimally, the ratio between the shank diameter and part thickness should between 1:1 and 1:3 for metal parts (closer to 1:1 for plastic parts).

How are tubular rivets made?

These solid rivets are placed in their holes, with the end opposite the head sticking slightly on the other side. This end is then hammered or bent into a flattened position, fastening the rivet there and forcing the two materials together. … To solve these problems, both the tubular and semi-tubular rivet were created.

What type of rivets are used on aircraft?

Two of the major types of rivets used in the aircraft are the common solid shank type, which must be driven using a bucking bar, and the special (blind) rivets, which may be installed where it is impossible to use a bucking bar. Solid shank rivets are generally used in repair work.

Article first time published on

What is a split rivet?

Split rivets, also known as bifurcated rivets, are a type of self-piercing rivet that are most often used to join softer materials such as textiles, leather, plastic, or wood. … Common uses for split rivets include the production of leather goods, clothing, cloth or soft-sided carrying cases, and similar applications.

What is the difference between a blind rivet and a solid rivet?

Blind rivets, a.k.a. break stem rivets, are tubular fasteners with a mandrel through the center. The blind end expands, and the mandrel is snapped off. … Unlike solid rivets, blind rivets can be installed in joints from only one side of the part—making them “blind” to the opposite side.

What are sealed rivets?

Sealed Dome Rivets are used to join sheets of metal, in varying thicknesses and where the fastening must be water or pressure tight. During installation, the rivet body expands and compresses to secure the material in place permanently.

How much larger should the clinch diameter be than the rivet?

The Reference Clinch Allowance suggested is 100 to 110% of the body diameter. You add the clinch allowance to the combined work piece material thickness to give you your under head rivet length for most applications.

How do you determine the length of a rivet?

The length of a rivet is measured from the underside of the head to the tip of the stem. The head itself is not included in this measurement. The length of the rivet should be equal to the thickness of both objects you are fastening, plus 1.5 times the diameter of the rivet’s stem.

What is pop rivet gun?

A pop rivet gun is made to apply pop rivets to a workpiece, and was invented in 1916 by Hamilton Wylie. This type of rivet gun is unique in its operation, because it does not hammer the rivet into place. Rather, a pop rivet gun will form a rivet in-place.

Can a rivet gun be used as a weapon?

Unlike the Drill, the Rivet Gun is a suitable weapon for any player, regardless of playing style. At the start of the game, it can be used to help determine one’s combat preferences, and will remain a useful tool in one’s arsenal for almost any situation afterwards.

What is a rivet gun made of?

It is usually made of steel or other strong material and is intended to shift vibrating power from the end of the gun onto the rivet head.

Are pop rivets and blind rivets the same?

Pop rivets, also known as blind rivets, are a type of rivet. They are used in applications where there is limited – or no – access to the rear side (blind side) of the parts to be joined.

What are the various types of rivet heads?

Snap head or cup head rivets. Rivets with this kind of heads are used most of all. …
Pan head rivets. In heavy engineering, pan head rivets are used. …
Conical Head Rivet. The conical head rivet is shown in the figure. …
Counter Sunk Head Rivet. …
Flat Head Rivet. …
Buffercated Rivet. …
Hollow Rivet.

Are bolts stronger than rivets?

Screws (wood and sheet metal) are stronger than rivets of the same diameter because they have more cross section, but they have little backing area. Machine screws with washers and nuts are not only extremely strong, they also have a large backing area. Rivets can also be used with washers.

Who invented pop rivets?

The history of POP rivets began in the U.K. in the early 20th century. British inventor Hamilton N. Wylie patented a method for installing tubular rivets from one side, rather than the typical method of pounding the metal shaft down while holding a buckboard against the back of the assembly.

What is the name of rivet head?

To distinguish between the two ends of the rivet, the original head is called the factory head and the deformed end is called the shop head or buck-tail. Because there is effectively a head on each end of an installed rivet, it can support tension loads.

Why are airplanes riveted and not welded?

One reason that airplanes are manufactured with riveted joints instead of welded joints is because the aluminum materials used in their construction isn’t tolerant of heat. Most commercial aircraft are designed with an aluminum body. Not only is aluminum is inexpensive and readily available; it’s also lightweight.

How do you identify aircraft rivets?

Aircraft rivets are identified by the marks on the manufacturer’s head, and the alloys are represented by a letter (or letters) in the part number. Rivets with no head markings are soft 1100 (pure) aluminum, and not used in structural applications.

Are rivets better than screws?

Compared to screws, rivets hold much better. They are impossible to open and won’t shake loose. This is because the screw only has a head on one side whereas the rivet is supporting both sides. … However, the riveted connection capacity is almost the same as screwed connection capacity for 0.55 and 0.75 mm thick steel.

What are rivets used for leather?

Rivets let you attach two or more pieces of leather together when they are set through holes in the leather. They come in a variety of finishes so you can choose rivets that intentionally stand out against your leather or rivets that blend in.

WHAT IS A crimp tube?

Crimp tubes, or crimp beads as they are often called, are sections of tubing (typically seamless) that are intended to be used when finishing beading wire, like Accu-Flex® professional-quality beading wire. … Crimping pliers are then used to crimp the bead to secure it.

What is the riveting process?

Riveting is a forging process that may be used to join parts together by way of a metal part called a rivet. The rivet acts to join the parts through adjacent surfaces. A straight metal piece is connected through the parts. Then both ends are formed over the connection, joining the parts securely.

What is a punch rivet?

In punch riveting, the necessary hole is punched out by the rivet itself. The riveting presses are pneumatically, hydraulically or electrically driven, whereby the pressing systems can not be equipped with a force-path monitoring for process control.
