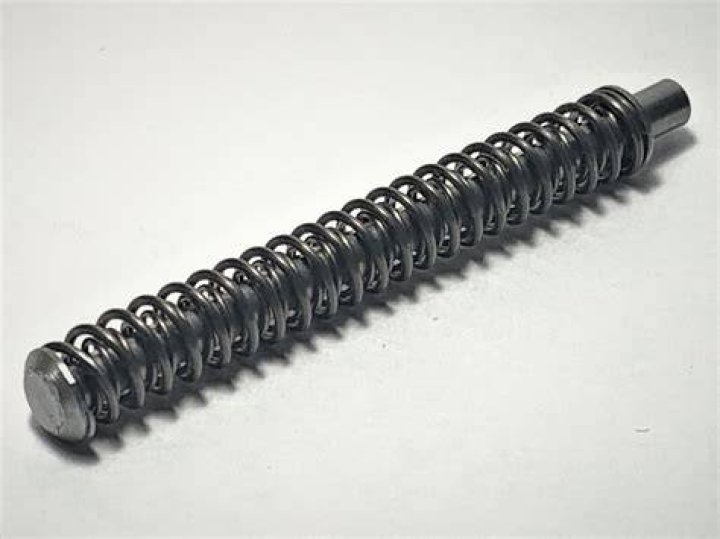

Definition of recoil spring : a spring used to cushion the shock of a recoiling gun or other mechanism.

How does a recoil pull starter work?

The starting cord is wound around a spring-loaded hub that is designed to engage with the engine flywheel. When you pull the cord, the flywheel rotates, which in turn rotates the crankshaft and moves the piston. A magnetic coupling on the flywheel causes the spark plug to fire cyclically as the piston moves,.

What size is 4 starter rope?

#4 (1/8″ Diameter) and #4-1/2 (9/64″ Diameter) rope is used on most chain saws and larger 2-cycle engines. #4-1/2 (9/64″ Diameter), #5 (5/32″ Diameter) and #5-1/2 (11/64″ Diameter) rope is used on most 4-cycle push mower small engines.

How do you shrink stretched springs?

Re: How to resize a spring? Compress it. Heat it up, then compress it and douse it. Shorten it.

What does a starter pawl do?

The purpose of the starter is to turn the engine over and allow it to run on its own. Pulling the rope engages the pawls inside the starter, which locks onto the flywheel and turns the engine over. The recoil spring then retracts the rope.

Where does the spring go in a carburetor?

The throttle return spring is located on the side of the carburetor.

What is a pawl assembly?

The metal and plastic pawl assembly is a complete part that includes the two plastic pawls, the two springs, and the metal housing. … The pawl assembly attaches to the motor\\\’s crankshaft and is used to rotate the shaft, and flywheel when the recoil starter rope is pulled.
