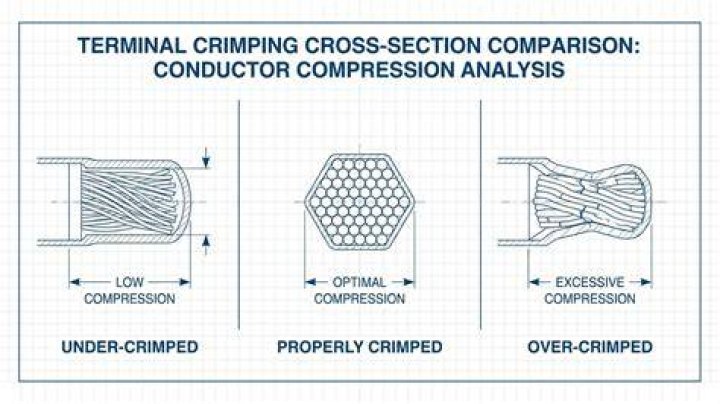

Crimping Tip #3 Avoid Over-Crimping When using automated crimping tools, over-crimping usually translates to inadequate crimp height. Over-crimping could cause excessive extrusions or flares on the bottom of the conductor crimp. It also reduces the circular area of the conductor and increases resistance.

What does crimping a bullet do?

A firm taper crimp on ammunition intended for use in an autoloading firearm is intended to do exactly the opposite; to prevent the bullet from being forced deeper into the case during the feeding cycle. It also serves to ensure reliable feeding by eliminating the sharp edge of the case mouth.

Can you over crimp?

If you crimp too much, you’ll get a round that won’t chamber or won’t shoot accurately. I have a sample that was over-crimped into a jacketed . 45 ACP 230-grain roundnose, and when the case couldn’t be crimped any more (the hard bullet stopped inward progress) the case then buckled.

What is the advantages of crimping?

Crimped connections create an air-tight seal between the connector and the cable, resulting in long-lasting, reliable connections that are protected from environmental conditions such as moisture, sand, dust, and dirt.

When should you crimp a bullet?

And, because of recoil, the bullet needs to be firmly crimped to keep it from moving and thereby altering the length of the cartridge. Finally, as a general rule for any hunting ammunition, I like to crimp the bullet if there is a cannelure in the right place (some bullets have more than one).

Can you solder instead of crimp?

Soldering, unfortunately, doesn’t offer this same level of protection. Crimping offers stronger, more reliable connections than soldering. Soldering uses heated metal to join the cable to the connector. Over time, this filler metal will degrade, which may cause the connection to fail.

How important is bullet seating depth?

Bullet seating depth is critical. You probably already know that a particular combination of primer, powder and bullet can significantly change accuracy in any rifle. … The distance from your bullet’s bearing surface to your barrel’s rifling usually contributes more to accuracy than do powder and primer combinations.

Why do you crimp wires?

Crimping is a common method for compressing a terminal to a wire conductor without the use of soldering. When done correctly, a crimp creates a mechanically sound connection that resists corrosion, gas, and liquids. If you’ve ever crimped a terminal to a wire, you know that it’s not the most glamorous of tasks.

Are butt connectors better than solder?

At its most basic, a butt splice is a fast, effective way of connecting and securing the ends of two wires without having to solder them. While soldering has its advantages, the time and cost involved can be prohibitive. In addition, the high heat used in soldering introduces the risk of injury.

Can you crimp solid wire?

Crimping of solid wire, component leads, or stranded wire that has been solder-tinned, is prohibited. The wire ends shall be visible. The conductor should extend a minimum of even with, and a maximum of one wire diameter beyond, the conductor crimp edge.

Article first time published on

What can I use if I don't have a crimping tool?

As for doing this without a crimper, have fun! If you are going to try it, use a small flat-head screwdriver to push down the pins into the wires. You will need to push down all 8 pins into the 8 wires.

Does 45 70 need to be crimped?

SS rifle, no need to crimp. Just “bump” case in size die to close mouth so you can chamber the round. I use the Lee FCD for my ’86 loads and it works very well.

What does a Cannelure do?

In cartridges, the cannelure is a band pressed into the case which helps prevents cartridge setback when the case mouth is properly crimped onto the cannelure. Bullet setback of . 1″ can increase pressure beyond safe limits and possibly cause a catastrophic failure.

Should you crimp 6.5 Creedmoor?

Description. Lee 6.5 Creedmoor factory crimp die crimps the bullet in place more firmly than any other tool. … A firm crimp improves accuracy because pressure must build to a higher level before the bullet begins to move. This higher start pressure insures a more uniform pressure curve and less velocity variation.

What is firing pin mark?

Firing pin impressions are indentations created when the firing pin of a firearm strikes the primer of centerfire cartridge case or the rim of a rimfire cartridge case. … Imperfections in the surface of the nose of the firing pin consistently produced these impressed marks.

Does seating a bullet deeper increase pressure?

Seating a bullet against the rifling causes pressures to be elevated noticeably higher than if the bullet were seated just a few thousandths of an inch off the rifling. … Many times the best seating depth is with the bullet touching or very near the rifling.

How much does seating depth affect accuracy?

“Now and then, 2-3 thousandths change in seating depth can make the difference between average and peak accuracy,” explains Mike Ratigan, Benchrest Hall of Famer and World Champion, in Extreme Rifle Accuracy. Wow, 0.002-0.003 inches in bullet jump can sometimes make the difference!

What does COL mean in reloading?

Cartridge overall length, or “COL”, is important to safe functioning of reloads in firearms.

Should you tin wires before crimping?

On many industrial installations the wires will be pin-crimped before insertion. This reduces the risk of stray strands left out of the terminals. Some crimpers result in a square cross-section on the crimp and these work well with the flats grips on the terminals. You should absolutely NOT tin the wires.

Are crimp connectors good?

Crimped connections, done correctly, can be superior to soldered connections. … A good crimp connection is gas tight and won’t wick: it is sometimes referred to as a “cold weld”. Like the solder method, it can be used on solid or stranded conductors, and provides a good mechanical and electrical connection.

Does soldering a wire increase resistance?

Resistance. At a first glance, it might seem like soldering provides a lower resistance than crimping. Surprisingly, reality differs. A properly crimped connection actually creates a metal-metal colloidal bond at the surface between the wire and the terminal.

Can you put 2 wires in one end of a butt connector?

You can twist two wires together and insert them into one end of the butt connector, and insert one wire in the other. Just be sure to properly size the connector. Blues or yellows will probably both work.

What is a parallel splice?

Parallel splices are used to dress and terminate multiple conductors, of the same or different gauges, in a parallel configuration. See Section 2.01 “Crimped Terminations – General Requirements” for common accept/reject criteria. … Indents are symmetrical and centered on the crimp barrel.

What is a ratchet crimper?

The ratchet crimp tool is a will crimp insulated and non-insulated terminals and butt splices. The crimper offers a ratcheting mechanism that provides a consistent and complete crimp cycle each time. Heavy duty design will stand up to years of use.

Can I crimp Romex wire?

2 Answers. There are lots of devices besides wire nuts you can use to splice Romex in a junction box, but generally splices outside of a box are prohibited. The Spliceline push in connectors, insulated crimp connectors, any of them – has to be in a box.

Can I use butt connectors on solid wire?

Both stranded wire or solid wires can be safely spliced together with an insulated butt connector. … Compression that is attained by crimping the butt connector is key to getting a solid connection. Crimping pliers are the best way to crimp the insulated connector together to provide a safe and secure wire connection.

Can I crimp wires with pliers?

To achieve the necessary compressive force, it’s best to use a crimping tool when attaching crimp connectors to a wire. Pliers or a hammer will work in a pinch, but using such tools can result in a loose connection that ultimately results in an open circuit.

What is the difference between swaging and crimping?

“In swaging, a machine pushes a fitting and ferrule through a fixed split die bed to reduce the OD of the ferrule, compressing the hose into the stem serrations, while a crimping machine has any number of segment dies that close around the ferrule or sleeve and reducing it to a predetermined OD.

What is more common 568A or 568B?

The 568A wiring pattern is recognised as the preferred wiring scheme for standard use because it provides backward compatibility for both one pair and two pair Universal Service Order codes (AT&T) USOC wiring. … However, N-Tron adopted the 568B standard since it is the most widely used in the industry today.

Can you join CAT-5 cable?

A CAT-5 cable should only be spliced as a temporary fix. … That being said, when a cable is damaged and needs to be repaired quickly, it can be spliced as a temporary measure that will perform well enough to carry network traffic reliably until new cable can be run.
