What is K value Eigrp
Sarah Marsh EIGRP K values. EIGRP uses a composite metric and K-values to calculate the preferred path to a destination.
How do you calculate EIGRP metric and K values?
- Metric = [K1*bandwidth + ((K2*bandwidth)/(256-load))+K3*delay]
- Metric = Metric*[K5/(reliability+K4)]
- Metric = bandwidth (slowest link) + delay (sum of delays)
- Metric = (107 / minimum bandwidth) * 256 + (sum of delays) * 256.
What are EIGRP metrics?
EIGRP determines the value of the path using five metrics: bandwidth, load, delay, reliability and MTU. EIGRP uses Five different messages to communicate with its neighbor routers. EIGRP messages are Hello, Update, Query, Reply, and Acknowledgement.
What is K6 in EIGRP?
K6 has been introduced with Wide Metric support and is used to allow for Extended Attributes, which can be used to reflect in a higher aggregate metric than those having lower energy usage. Currently there are two Extended Attributes, jitter and energy, defined in the scope of this document.”
How do I check EIGRP metric?
EIGRP Metric = 256*(Bandwidth + Delay) destination network, in tens of microseconds.
What is K values in networking?
K values are integers from 0 to 128; these integers, in conjunction with variables like bandwidth and delay, are used to calculate the overall EIGRP composite cost metric.

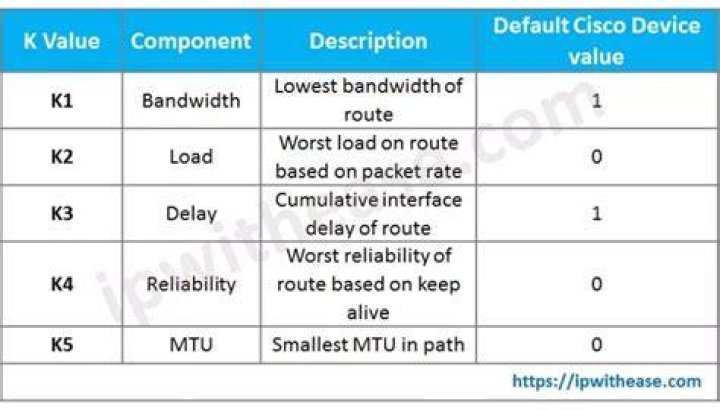

What are Cisco k values?
K ValueComponentDescriptionK2LoadWorst load on route based on packet rateK3DelayCumulative interface delay of routeK4ReliabilityWorst reliability of route based on keep aliveK5MTUSmallest MTU in path [Not used in route calculation]
What is OSPF metric?
The OSPF metric for a route is the sum of the interface costs for all outgoing interfaces in the route. By default, a router’s OSPF interface cost is actually derived from the interface bandwidth: The faster the bandwidth, the lower the cost.
What is OSPF in networking?
Open Shortest Path First (OSPF) is a link-state routing protocol that was developed for IP networks and is based on the Shortest Path First (SPF) algorithm. … In an OSPF network, routers or systems within the same area maintain an identical link-state database that describes the topology of the area.
What is tos in EIGRP?
The metric weights TOS K1 K2 K3 K4 K5 command issued in EIGRP router configuration mode can be used to set the K-values EIGRP uses in its calculation. The TOS parameter was intended to be used for a quality of service marking (where TOS stands for the Type of Service Byte in an IPv4 header).
Article first time published on
Which one is better OSPF or EIGRP?
The scalability of the OSPF is higher than EIGRP because EIGRP is complicated and vendor-specific and incapable of migrating from one vendor to the other. Conversely, OSPF is an open standard and simple protocol through which the network can be scaled easily.
Why does EIGRP use lowest bandwidth?
“EIGRP uses the minimum bandwidth on the path to a destination network and the total delay to compute routing metrics. … The bandwidth and delay metrics are determined from values configured on the interfaces of routers in the path to the destination network.”
How does EIGRP calculate feasible distance?
feasible distance: Best metric among all path to a network. It is calculated by adding the advertised/reported distance advertised by the neighbor and the cost calculated by that current router to reach the neighbor. successor: It is the (lowest) best path to reach to any specific destination network.
How does EIGRP calculate delay?
The delay value used in the EIGRP metric calculation is the delay in 10’s of microseconds. So to calculate the Delay value, simply divide the DLY in the show interface command by 10. The Delay Value of 10 will be plugged into our simplified EIGRP Metric formula we derived earlier.
What are LSA types?
- Type1 is a Router LSA. All OSPF speaker types generate LSAs of this type. …
- Type2 is a Network LSA. …
- Type3 is a Network summary LSA. …
- Type4 is the ASBR summary. …
- Type5 is an external summary. …
- Type7 is therefore written to the OSPF standard. …
- Learn More:
What port does EIGRP use?
For example, IP is protocol number 4, ICMP is 1, EIGRP is 88, and OSPF is protocol number 89. IANA’s Web site offers a complete list of assigned protocol numbers.
What are the different types of EIGRP packets?
EIGRP sends out five different types of packets—hello, update, query, reply, and acknowledge (ACK)—that are used to establish the initial adjacency between neighbors and to keep the topology and routing tables current.
What are the states in EIGRP?
A Passive state indicates that a route is reachable, and that EIGRP is fully converged. A stable EIGRP network will have all routes in a Passive state. A route is placed in an Active state when the Successor and any Feasible Successors fail, forcing the EIGRP to send out Query packets and re- converge.
What is the default metric for EIGRP?
Default Seed Metric Interestingly, both RIP and EIGRP have default seed metrics of infinity, meaning that any route redistributed into those routing protocols will be considered unreachable, by default, and therefore not advertised to any other routers.
How do I change bandwidth in EIGRP?
To configure the percentage of bandwidth that can be used by EIGRP for IPv6 on an interface, use the ipv6 bandwidth-percent eigrp command in interface configuration mode. To restore the default value, use the no form of this command.
Why is OSPF used?
The OSPF (Open Shortest Path First) protocol is one of a family of IP Routing protocols, and is an Interior Gateway Protocol (IGP) for the Internet, used to distribute IP routing information throughout a single Autonomous System (AS) in an IP network.
What layer is OSPF?
OSPF and BGP belong to the Application Layer.
What port does OSPF use?
S.NOOSPF6.In OSPF internet protocol is used.7.It works in 89 port number.8.OSPF is a Link State type.9.In OSPF Dijkstra algorithm is used.
What is RIP and OSPF?
RIP (Routing Information Protocol) is one of the oldest routing protocols in service, whereas OSPF (Open Shortest Path First) serves as the most widely adopted IGP for large enterprise networks. Network managers may find themselves in a dilemma when choosing between RIP vs OSPF.
What is a metric value?
A metric is a value that’s assigned to an IP route for a particular network interface. It identifies the cost that’s associated with using that route. For example, the metric can be valued in terms of link speed, hop count, or time delay.
What is DR and BDR in OSPF?
In an OSPF broadcast network, OSPF elects one router to serve as the designated router (DR) and another router on the segment to act as the backup designated router (BDR). This minimizes the amount of repetitive information that is forwarded on the network. OSPF forwards all messages to the designated router.
What is composite metric in EIGRP?
Well, composite means it is made up of several different parts. Metric just means that is how the EIGRP routing protocol determines which routes are “better” or more preferred than others. If you have two EIGRP routes to the same place, the one with the lowest composite metric wins.
Why we use BGP instead of OSPF?
BGP is considered to be more flexible as well as scalable than OSPF and it would be also used on a larger network. OSPF would be used to determine the fastest route whereas the BGP would be putting emphasis on determining the best path. Well, Because OSPF stub areas which would be a total mess to configure.
What is the difference between Eigrp and BGP?
SR.NOEIGRPBGP1.EIGRP stands for Enhanced Interior Gateway Routing Protocol.BGP stands for Border Gateway Protocol.
What is an advantage of using Eigrp?
Benefits of EIGRP It makes use of link more effectively through (ECMP) Equal-Cost Multi-Path and unequal cost load sharing. It performs a much easier transition with a multi-address family. It supports both IPV4 and IPV6 networks. It provides encryption for security and can be used with iBGP for WAN routing.
What is the maximum hop count for EIGRP?
Similar to its predecessor IGRP, EIGRP has a maximum hop count of 224 and a default maximum hop count of 100. EIGRP has administrative distance of 90.
