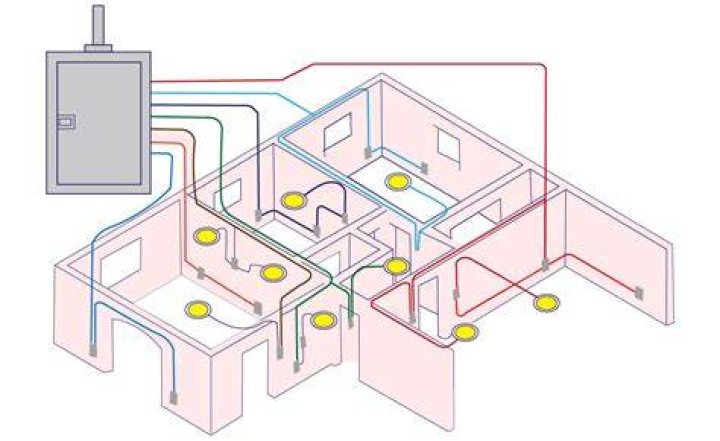

A circuit consists of a hot (usually black) wire that goes from the main panel to a series of lights, receptacles, or appliances, and a neutral (usually white) wire that returns to the main panel. In addition to the neutral wire, a grounding wire also returns to the main panel and, from there, to the earth.

What is a home circuit?

A circuit consists of a hot (usually black) wire that goes from the main panel to a series of lights, receptacles, or appliances, and a neutral (usually white) wire that returns to the main panel. In addition to the neutral wire, a grounding wire also returns to the main panel and, from there, to the earth.

How do I find a circuit in my house?

You plug a sending unit into a receptacle and run a detection probe over individual breakers until you find the right one. A circuit tracing kit may include additional accessories, such as a signal generator that you clip into a circuit — this is useful for devices that are hard-wired (vs. devices that plug in).

What circuit does a house use?

Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.

What are the two types of circuits in your home?

Series and parallel circuits There are two types of circuit we can make, called series and parallel. If there are no branches then it’s a series circuit. If there are branches it’s a parallel circuit.

Is house electricity AC or DC?

Home and office outlets are almost always AC. This is because generating and transporting AC across long distances is relatively easy. At high voltages (over 110kV), less energy is lost in electrical power transmission.

What is a normal circuit?

A normally open or N.O. momentary switch has one or more circuits that are open when the switch actuator is at its normal or rest position. … Therefore a normally open circuit can also be referred to as “normally OFF”.

Which circuit is the best?

Explanation: As mentioned above, parallel circuits are the most well known in homes and office buildings. They are used so that every appliance you purchase locally will be powered with the correct voltage at any outlet in the house, with special plugs for high voltage heaters (ovens and dryers).

What are the types of circuit?

There are actually 5 main types of electrical circuits: Close circuit, open circuit, short circuit, series circuit, and parallel circuit. Each type of circuit is designed to create a conductive path of current or electricity.

How many amps is a house circuit?

Most modern residential circuits are 15 or 20 amps, so we’re looking at a max load of either (15A x 120V =) 1800 watts or (20A x 120V =) 2400 watts before the breaker trips. The breaker will be labeled either 15 or 20.

Article first time published on

What are the 3 types of circuits?

If you have a break in this circuit somewhere, you’ll have a break in the electrical flow. This is also known as an ‘open’ circuit. Open circuit voltage is measured when there is no current flow through the circuit. There are three basic types of circuits: Series, Parallel, and Series-Parallel.

What 3 things are needed to complete a circuit?

• a conductive “path,” such as wire, or printed etches on a circuit board;
• a “source” of electrical power, such as a battery or household wall outlet, and,
• a “load” that needs electrical power to operate, such as a lamp.

What happens when the circuit is closed?

A closed circuit has a complete path for current to flow. … This can happen when two bare wires in a circuit touch each other. The part of the circuit bypassed by the short circuit ceases to function, and a large amount of current could start to flow. This can generate a lot of heat in the wires and cause a fire.

What voltage is used in houses?

Today, virtually all American homes and businesses have access to 120 and 240 V at 60 Hz. Both voltages are available on the three wires (two “hot” legs of opposite phase and one “neutral” leg).

How many volts are in a house circuit?

Household wiring carries 120 volts. (Actual voltage varies constantly but stays within an acceptable range, from 115 to 125 volts.) Most outlets supply 120 volts, which is provided by one hot wire bringing the power to the outlet and one neutral wire carrying it back to the service panel.

How many volts does a house need?

In the United States, your house voltage comes from a step-down power transformer (usually on a line pole) that converts 10 KV (10,000 volts) to 120/240 volts on three wires going to the house utility meter and house distribution panel – two 120 volt hot wires and one neutral wire in the center.

How do I know if AC or DC?

One way to determine if you have an AC-DC power supply or a DC-DC model is to look at the device itself. Often, the input and output information will appear somewhere on the surface. If the input is AC, you have an AC-DC power supply, and you have a DC-DC model if the input and output both are DC.

Is light switch AC or DC?

The first thing you need to know is that light switches are rated based on the electrical current type. For example, the two most common types of lighting switches are DC (direct current) and AC (alternating current).

Why is AC used in houses?

Because high voltages are more efficient for sending electricity over long distances, AC has an advantage over DC. This is because the high voltages from the power plant for home use can be easily reduced to a safer voltage. The voltage is changed with a transformer.

What are the 4 parts of a circuit?

Every electric circuit, regardless of where it is or how large or small it is, has four basic parts: an energy source (AC or DC), a conductor (wire), an electrical load (device), and at least one controller (switch). Visualize what happens when you switch on a room light.

What are the 4 types of electricity?

• Static Electricity. Static Electricity is nothing but the contact between equal amount of protons and electrons (positively and negatively charged subatomic particles). …
• Current Electricity. Current Electricity is a flow of electric charge across an electrical field. …
• Hydro Electricity. …
• Solar Electricity.

How many circuits are there?

The courts are divided into 13 circuits, and each hears appeals from the district courts within its borders, or in some instances from other designated federal courts and administrative agencies. Appeals from the circuit courts are taken to the Supreme Court of the United States.

Which type of MCB is used in home?

The best-suited type of MCB for domestic appliances, where the current load is medium, is type C. Type C MCB trips off when the flow of current is 5-10 times more than normal. Type D MCB has a high resistance as they can withstand up to 10-20 times the current rate.

Why parallel circuits are used in homes?

Parallel circuits are used in homes because the loads can be operated independently of each other. … They are wired in a parallel circuit to a single switch. If one of those light bulbs burns out, the other lights continue to work.

How are the circuits wired in houses?

Circuits in houses are generally wired in parallel, which allows you to operate each light or power point independently of the others.

How many amps does a 3 bedroom house need?

In a modern 3-4 bedroom home, the average demand works out around 80-100 Amps.

How many watts is a 240v circuit?

25-amp 240-volt circuit: 25 amps x 240 volts = 6,000 watts.

How many amps does a TV use?

Domestic Portable ApplianceAmps UsedWatts UsedDesktop computer1.3Up to 300Television 55” UHD<0.5120Games console0.86200Washing machine102200

What type of breakers do I have?

Circuit breakers have markings stamped on the side of them and are usually located inside the panel cover door. There is a label that will tell you what type of breaker is needed for installation in that particular panel.

What is the danger of a short circuit?

Short circuits are liable to cause fires, electrical burns, and electrocution. Stray electrical currents can also cause considerable damage to appliances and a home’s electrical system.

How do I fix a short circuit in my house?

1. Shorts Occur in a Circuit. Electricity flows in a circuit. …
2. Isolate the Circuit. …
3. Check the Appliances on the Affected Circuit. …
4. You Need the Proper Tools. …
5. Remove the Wires. …
6. Check the Wires. …
7. Remove the Breaker Wires. …
8. Check the Breaker.
