ARP is the Address Resolution Protocol, used to translate between Layer 2 MAC addresses and Layer 3 IP addresses. ARP resolves IPs to MAC addresses by asking, “Who has IP address 192.168. 2.140, tell me.” An example of an ARP reply is “192.168.

How do I arp an IP address?

Open the [Start] menu and select [All Programs] or [Programs] [Accessories] [Command Prompt]. Enter “arp -s <IP address> <MAC address>” and press the [ENTER] key. Enter the IP address to assign to the machine.

What network layer is ARP?

Address Resolution Protocol (ARP) The Address Resolution Protocol is a layer 2 protocol used to map MAC addresses to IP addresses.

Is ARP only for Ethernet?

A host in an Ethernet network can communicate with another host, only if it knows the Ethernet address (MAC address) of that host. … ARP is extensively used by all the hosts in an Ethernet network.

What is arp example?

In the example above you see an example of an ARP table on a H1. As you can see there is only one entry, this computer has learned that the IP address 192.168. 1.2 has been mapped to the MAC address 00:0C:29:63:AF:D0. In this example we have two computers and you can see their IP address and MAC address.

How do you read arp commands?

To display the ARP table on a Unix system, just type “arp -a” (this same command will show the arp table in the command prompt on a Windows box, by the way). The output from arp -a will list the network interface, target system and physical (MAC) address of each system.

How do I scan arp on Windows?

1. Open a Command Prompt window.
2. On Windows or macOS type ipconfig or on Linux type ifconfig. …
3. Enter the command arp -a to get a list of all other IP addresses active on your network.

How does ARP work on router?

. So if host 1 sends another IP packet to host 2, host 1 searches its ARP table for the router 1 MAC address.

Is ARP IP packet?

While a standard ip packet / frame has different purposes – carry data for one, using Ip addresses for identifying end points. 4. However, an ARP packet is trying to find information about the point using the IP address. Therefore it is different from a standard IP packet.

What is ARP IP?

Address Resolution Protocol (ARP) is a protocol or procedure that connects an ever-changing Internet Protocol (IP) address to a fixed physical machine address, also known as a media access control (MAC) address, in a local-area network (LAN).

Article first time published on

What is the ARP process?

As we’ve learned before, the Address Resolution Protocol (ARP) is the process by which a known L3 address is mapped to an unknown L2 address. … If a host is speaking to another host on the same IP network, the target for the ARP request is the other host’s IP address.

Is ARP Layer 3 protocol?

ARP (Address Resolution Protocol) is the protocol that bridges Layer 2 and Layer 3 of the OSI model, which in the typical TCP/IP stack is effectively gluing together the Ethernet and Internet Protocol layers.

Where is ARP cache stored?

The ARP table is stored in the RAM of the device. Each entry, or row, of the ARP table binds an IP address with a MAC address.

How do I use CMD to scan my IP?

1. Open the command prompt.
2. Enter the command “ipconfig” for Mac or “ifconfig” on Linux. …
3. Next, input the command “arp -a”. …
4. Optional: Input the command “ping -t”.

Do ARP Ping?

When you attempt to ping an IP address, an ARP request is sent at the same time. Your firewall may be blocking the ICMP echo, but chances are the computer will receive an ARP reply. Your computer’s ARP table will contain the IP address and MAC address of the host you are trying to reach.

What does the netstat command tell you?

The netstat command generates displays that show network status and protocol statistics. You can display the status of TCP and UDP endpoints in table format, routing table information, and interface information.

How does ARP proxy work?

Proxy ARP is a technique by which a proxy server on a given network answers the Address Resolution Protocol (ARP) queries for an IP address that is not on that network. … The traffic directed to the proxy address is then typically routed by the proxy to the intended destination via another interface or via a tunnel.

Can ARP leave the subnet?

ARP only works between devices in the same IP subnet.

How does ARP work in ipv4?

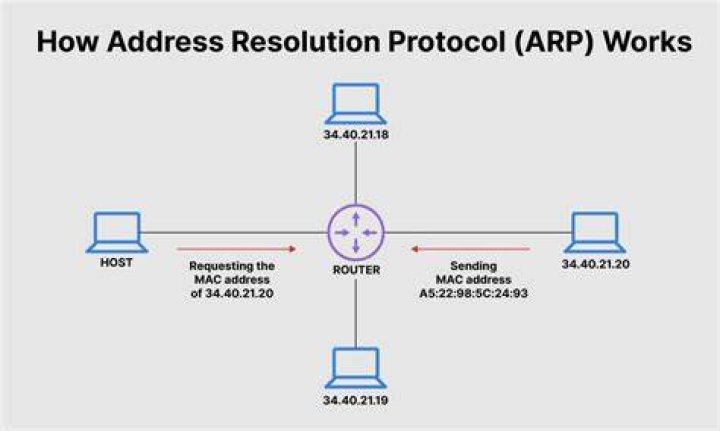

ARP broadcasts a request packet to all the machines on the LAN and asks if any of the machines are using that particular IP address. When a machine recognizes the IP address as its own, it sends a reply so ARP can update the cache for future reference and proceed with the communication.

How do I read ARP cache?

1. Click Start -> Run.
2. Type cmd and click OK to bring up the command line.
3. Type arp -d to flush the ARP cache.
4. Type arp -a to view the current ARP cache which should be empty.
5. Type arp -s 192.168. 100.23 00-13-C6-00-02-0F (Note for UNIX the syntax is: arp -s 192.168. 100.23 00:13:C6:00:02:0F)

Does router have ARP table?

The router has an ARP table for every interface, usually one for LAN and one for WAN for home routers.

What is ARP request and reply?

ARP stands for Address Resolution Protocol. In order for someone to ping an IP address to their local network, the system will need to convert an IP address into a MAC address. … Thus, any machine that has the requested IP address will reply with an ARP packet, claiming it is the IP address.

Is ARP part of TCP IP?

It’s no surprise then, that the most important address resolution protocol is the TCP/IP protocol bearing the same name as the technique itself: the Address Resolution Protocol (ARP). ARP is a full-featured dynamic resolution protocol used to match IP addresses to underlying data link layer addresses.

What is the full form of RARP?

The Reverse Address Resolution Protocol (RARP) is an obsolete computer communication protocol used by a client computer to request its Internet Protocol (IPv4) address from a computer network, when all it has available is its link layer or hardware address, such as a MAC address.

Why is an ARP cache used?

An ARP cache is a collection of Address Resolution Protocol entries (mostly dynamic) that are created when an IP address is resolved to a MAC address (so the computer can effectively communicate with the IP address). An ARP cache helps the attackers hide behind a fake IP address. …

Is ARP a TCP or UDP?

The ARP protocol is just one component of a TCP/IP or UDP/IP stack.

How do you clear an ARP table?

1. netsh interface IP delete arpcache. It should look something like this. …
2. arp –n. This line allows you to view your ARP cache. …
3. ip –s –s neigh flush all. This command is used to clear the ARP cache.
4. arp –n.

What are some security risks associated with ARP?

ARP spoofing can enable malicious parties to intercept, modify or even stop data being transmitted between parties. ARP spoofing attacks only occur on local area networks that utilize the Address Resolution Protocol.

Do computers have ARP tables?

There is a thing called Proxy ARP but that is used more in situations where a host is ARPing for a device not on its subnet and a router with a route to that network replies to the ARP with its own MAC address but that is not the case in this scenario with the switch. PCs has an ARP table that matches IPs to MAcs.
