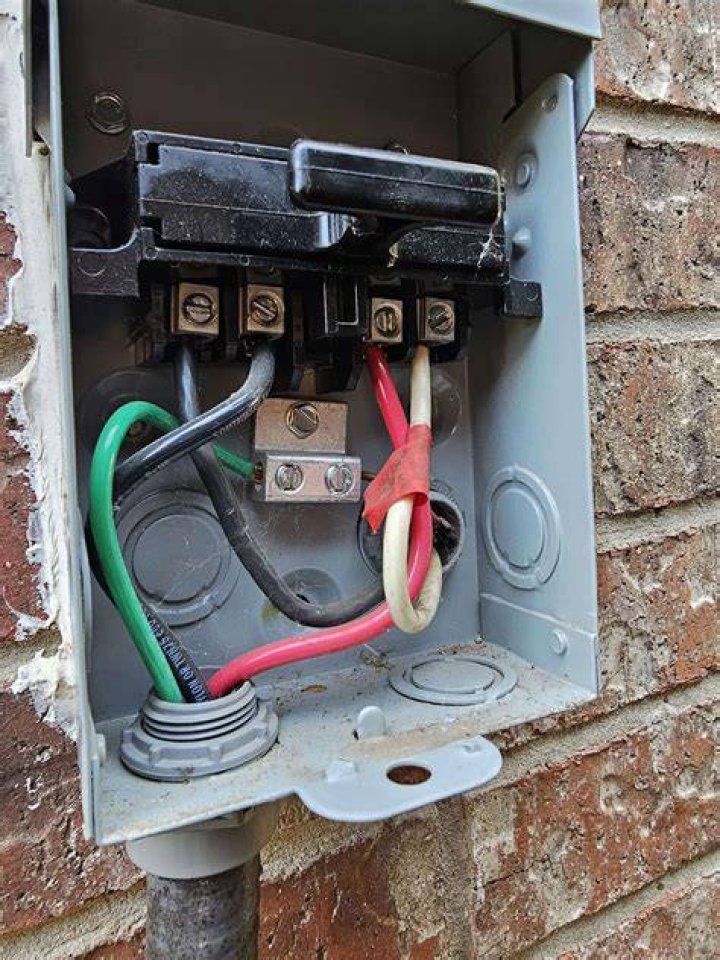

An AC disconnect separates the inverter from the electrical grid. In a solar PV system it’s usually mounted to the wall between the inverter and utility meter, and can be a standalone switch or a breaker on a service panel. DC disconnects are switches that can interrupt the flow of DC (direct current).

Do I need an AC disconnect?

Disconnects are not used for regular control of the circuit, but are employed as a safety precaution. The disconnect must be within sight from the AC unit to prevent someone who doesn’t know the technician is working on the unit from turning the power on causing unit damage or human life concerns.

Can a breaker be used as a disconnect?

When discussing a circuit breaker panel in a building, those circuit breakers can be used to disconnect power, but many are not designed to do that regularly. There are “switch rated” breakers that are, however. Using a non switch-rated breaker may lead to premature failure. Yes you can.

Can AC disconnect be inside?

The 2008 National Electric Code requires: 440.14 Location. Disconnecting means shall be located within sight from and readily accessible from the air-conditioning or refrigerating equipment. The disconnecting means shall be permitted to be installed on or within the air-conditioning or refrigerating equipment.

Why is my outside unit not turning on?

AC not turning on could be the result of a blown fuse located at something called a safety shut-off box. This should be found close to your AC unit. Check to see if you have a blown fuse, and be sure to replace it if that’s the case. Even if the fuse doesn’t appear to be damaged, go ahead and replace it anyway.

How close does AC disconnect need to be?

This distance is typically described as within 50 feet (15 meters), and in practice at most residential properties the disconnect is much closer (3-6 ft), on a wall or standard near the compressor/condenser unit.

How do you disconnect an outside AC unit?

1. remove the valve caps. …
2. Close the valve on the small (upper) line.
3. Turn the unit on, COLD cycle, and listen carefully to the outer unit. …
4. Close the valve on the lower (large) line.
5. Turn the unit off and unplug it.
6. Crack open the nut on the large line.

How high can you put a disconnect?

“The NEC does not mandate a minimum mounting height for panelboards, disconnects, or meter enclosures. But switches, and circuit breakers used as switches, shall be installed so the center of the grip of the operating handle of the switch or circuit breaker, when in its highest position, is not more than 6 ft 7 in.

Do I need an AC disconnect for mini split?

You might be wondering, “Do I really need a disconnect?” All mini split systems require a dedicated circuit to supply power to the system. A disconnect box is required by code to be installed near the outdoor unit and allows for a technician to shut off power to the system when performing any service or repairs.

How do I know if my AC fuse is blown?

Test the load: If you saw a voltage reading during the previous step, run the same test on the “load” side of the fuses. You should again see a reading between 220 and 240. If you see a voltage reading on the “line” side but not the “load” side, it means you have a blown fuse.

Article first time published on

Where are fuses in AC unit?

What is an AC fuse? The fuse is a wire inside a glass casing, found in the disconnection box connected to your AC. The fuse is a protective measure meant to protect your air conditioner from electrical damage.

Why is my AC fan not running?

One of the most common reasons fans stop spinning is because of a dead capacitor. … Each air conditioning system has several capacitors, including the start capacitor, which sends signals to the motor, and the run capacitor, which keeps the motor running. Capacitors can go bad over time and need to be replaced.

Where is the AC shut off switch?

Many outdoor AC units have a shut-off switch. These switches are typically located near the unit and are inside a metal box mounted to the exterior of your home. They are sometimes labeled as an emergency shut-off.

How high should a AC disconnect?

Minimum mounting height is not mandated by the NEC. When in its highest position, the center of the operating handle of the switch or circuit breaker should not be more than 6 ft 7 in.

What does a disconnect do?

Electrical disconnects are switches that isolate all wiring in a home or other building from the source of power, typically the utility power service. … This disconnect may be a special breaker switch housed in an exterior box enclosure, or it may simply be the main circuit breaker on the home’s main service panel.

When should you use a disconnect switch?

In industrial applications disconnect switches may be used to interrupt power to machinery and motors when there is a safety hazard or when repair is needed. In fact, disconnect switches are mandated by the National Electrical Code (NEC) to be used in all industrial and manufacturing facilities.

What is the purpose of disconnect switch?

A safety disconnect switch provides a means of quickly disconnecting mechanical or electronic systems from their primary power source safely. These switches operate both automatically, to protect against circuit faults, as well as manually in case an emergency stop or planned maintenance is required.

Is there a breaker on the outside AC unit?

Your air conditioning unit has two breakers; one operates the outside unit while the other operates the inside. If the breakers appear tripped, turn the breakers off and then back on to reset them.

When should you use a fused disconnect?

Fused (or “fusible disconnects”) switches are most typically used in systems that carry an exceptionally high load, such as what can be found in major industrial equipment. This is because fused disconnects naturally carry a higher “Amps Interrupting Capacity,” or AIC.

Can I install a mini split myself?

It is possible to install the air handler and condenser unit on your own and bring in a professional to complete the refrigerant line setup. DIY mini splits come with the refrigerant line already charged and do not require a professional to charge them.

What size breaker do I need for a 36000 mini split?

Since the AC current is converted to DC current as soon as it enters the unit and everything operates on DC volts (automobile current), All 36,000 btu units require 220 volts ac, so you can install a double 20 amp breaker in your panel box or power supply.

How far can a disconnect be from equipment?

The disconnect that is provided to meet the requirements of 430.102(A) can also serve as the disconnect for the motor if it is located within sight from and not at a distance greater than 15 m (50 ft) from the motor and equipment.

What is maximum mounting height for electrical panel?

A height limit applies to mounting a panel box. The circuit breaker at the top of the box may not be higher than 6-foot 7-inches from the floor. A permanent platform must be below the panel box if the top circuit breaker exceeds this specific height. No defining height is mandated from floor to panel box base.

How far does an electrical panel have to be off the ground?

An electrical panel must be installed at least 4 feet off the ground, but cannot be higher than 6 feet. You need to also allow for the panel door to open at least 90 degrees.

How much does it cost to replace an AC fuse?

It costs between $15 and $300 to replace fuses, circuit breakers or relays in an AC unit. These projects are relatively fast and most take just a couple of hours to complete.

How long does AC fuse last?

The lifespan of a fuse can be up to 20 years. AC fuses are usually what is known as ‘slo-blow’ or ‘time delay’ fuses. This means that they are at work every time you turn the machine on and off and eventually, will simply wear out due to the strain of the operation.
