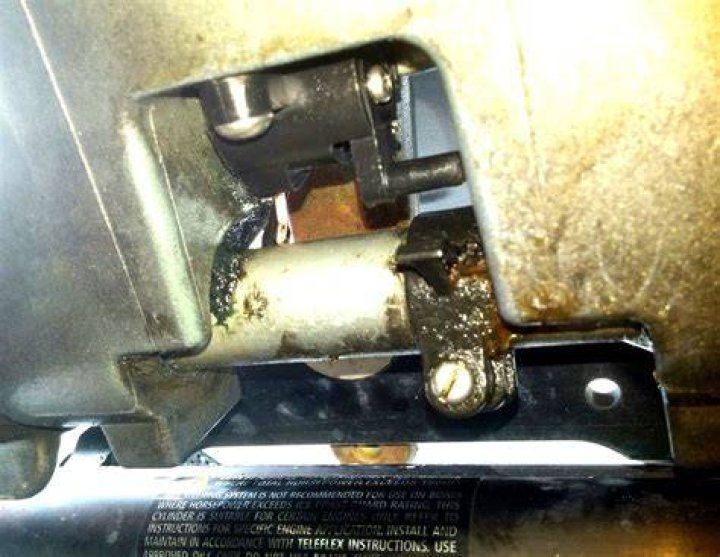

The trim sender switch is used to send a signal to the Trim Gauge so you can see the level of the drive. And the Trim Limit Switch is a safety device which keeps the driver from over-trimming while under way.

What are trim senders?

The trim sender switch is used to send a signal to the Trim Gauge so you can see the level of the drive. And the Trim Limit Switch is a safety device which keeps the driver from over-trimming while under way.

How do I test trim sending unit?

Disconnect the wires either at the sender itself or at the dash. Using an ohmmeter across the wires, you should see approx 1 ohm in the full up position and 88 ohms in the full down position. Also, as you move the sender arm, you should see the ohmmeter reflect a smooth reading up and down on the meter.

What does a trim gauge do?

Trim level gauges are designed to display the trim and / or tilt angle of the outboard motor or outdrive unit. … Trim level gauges are designed to display the trim and / or tilt angle of the outboard motor or outdrive unit. These trim gauges are available from Faria Beede and Kus.

Where is the trim limit switch?

The trim limit (TL) switch is located on the left side of the gimbal housing.

How do you adjust the trim sender on a Mercury outboard?

The steps are: (1) turn boat key to the on position, (2) raise motor up to where you can see the trim sending unit, (3) loosen the two screws on the trim sending unit so you can move it in it’s positioning slots, (4) move it a little, (5) lower the motor to the fully down position and go look at trim gauge needle and ( …

What is a trim trailer switch?

The trim switch on the throttle is the trim you use when in the water with engine in gear running.It will only go so high as to avoid over stressing the u-joints while running. The trailer switch is used when the boat engine is off mainly.It is for pulling the drive all the way up to pull out of the water.

How do I test my Wema fuel sender?

1. Disconnect the two wires on top of the sender.
2. Remove the sender from the tank.
3. Connect the wires on the sender to a multimeter.
4. Set the multimeter to resistance [Ω ohms]
5. Move the float to the top of the sender and take a reading on the multimeter:

How does an outboard trim work?

Trim is controlled with a toggle button on the control lever or on the dash. The trim system uses hydraulic rams to change the angle of the outboard motor or sterndrive gearcase—and with it the angle of the propeller shaft—relative to the boat transom, through a range of about 20 degrees.

Why do boat gauges stop working?

The two major problems that gauges usually have is that they are either inoperative or they read incorrectly. … When the ignition is on, the pointer on the gauge should be all the way to the left. If it is not, you need to check the ignition voltage by connection a multimeter between the Ignition and Ground terminals.

Article first time published on

How do you test a 2 wire trim motor?

Touch the other end to the blue wire on the motor. As soon as you touch the battery cable to the blue wire, the motor should start to spin clockwise. If the motor fails to spin, then it is defective and needs to be replaced.

What is the trailer button on my boat shifter for?

The trailer button will lift it all the way up, for trailering. When in the water, you need to lower it all the way.

What is trailer mode on a boat?

The Trailer button bypasses this limiter and allows you to raise the drive all the way out for either trailering or floating in shallow water.

How do I check my Mercruiser power trim fluid?

Remove the fill screw from the top of the trim pump using a flat screwdriver. Check the fluid level. Open the cap of the translucent plastic reservoir next to the pump if the system is equipped with one. Check the fluid level using the fill mark on the side of the reservoir.

How do you bleed a Mercruiser power trim pump?

Items you will need Turn the fill screw on the top-right side of the trim pump tank counterclockwise with a flathead screwdriver. Pour hydraulic fluid into the tank until the level reaches the “Full” line. Replace the fill screw. Disconnect the leftmost (Up) line from the trim cylinder with an adjustable wrench.

Why is my trim gauge reading backwards?

Re: trim gauge reading backwards (Alf) This most likely is broke or needs adjustment ( hence, what the screw is for ).

What is the difference between trim and tilt on a boat?

The difference between tilt and trim on a boat is referencing the location of the outboard or the drive of the inboard. Trimming is used when underway and goes about 20 degrees of the way up and tilting is coming all the way up for storage. Did you know there are ways to use your trim to improve your fuel economy?

Should you leave your outboard up or down?

It’s best to tilt your outboard up when leaving your boat in the water to prevent marine growth from forming and from corrosion eating away at its metal parts.

What causes a boat not to plane?

A boat won’t plane out either due to a bad propeller, improper motor placement on the transom, wrong trim position, uneven weight distribution in the boat, low engine performance. However, there could be many other reasons, but primarily those elements will cause a boat not to plane.

How do you know if your outboard is too low?

An outboard that is mounted too low will limit your boat’s optimal operation. You can often tell that an outboard is too low if you are experiencing sluggish speeds, poor handling, excessive spray, porpoising, or even water pushing up into the cowling.

When should I trim my outboard motor?

Once a boat is on plane and operating at a consistent speed, trim out to raise the outboard a bit. Doing so raises the bow and leaves less of the lower unit in the water, which reduces drag. Cruising speed picks up, and fuel economy improves as a result.

Is it bad to run an outboard engine at full throttle?

Does this mean an engine should never run at wide-open throttle (WOT)? Absolutely not. Modern engines are designed to handle WOT. Also, during break-in going to WOT, as prescribed by the owner’s manual, is necessary to properly seat the pistons’ rings.

How do you know if your outboard is too high?

Too high usually results in low water pressure, prop letting go in turns, or lack of bow lift are usually the telltale signs. Sometimes porpoising is caused by too much bow lift and dropping the motor will give it more bite and make it worse.

How does Wema fuel sender work?

#2 WEMA Type The WEMA sender uses a float that rides up and down a sealed dip tube. No electrical components are inside the tank and exposed to fuel. They are very, very reliable. These senders are sold by WEMA (now KUS), the actual manufacturer, and re-labeled by companies such as Moeller and others.

How does a fuel sender unit work?

How does a fuel sender work? Fuel senders have a rheostat that provides a resistance to ground. As the fuel arm moves from the empty to the full position a contact is moved across the board on the rheostat which varies the resistance seen by the fuel gauge. For example a 69 Camaro has a 0-90 ohm fuel sender.
