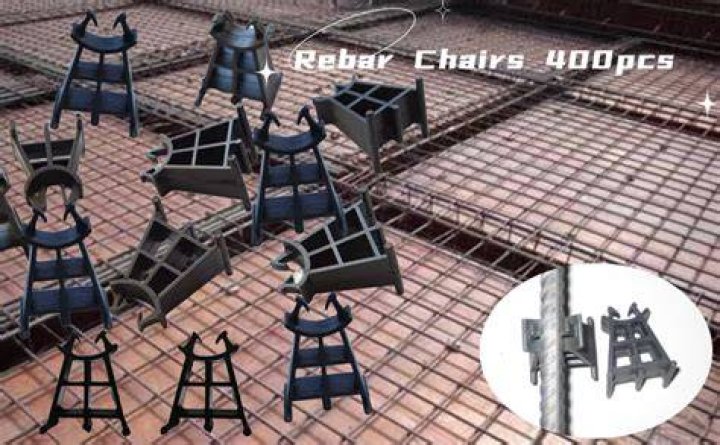

What Are Rebar Chairs Used For? Rebar chairs are specially-designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete.

What is a rebar chair used for?

What Are Rebar Chairs Used For? Rebar chairs are specially-designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete.

What is a chair in construction?

Chair reinforcement or simply chair bars are small structural elements used to properly place reinforcement bars in position and maintain the proper space between the top and bottom reinforcements. Chair bars are mainly used in slab and footing. It is one of the most important parts of the raft foundations.

What is a chair in concrete?

are specially designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete. Rebars are laid out in a crisscross grid pattern and are locked together with the rebar chairs before the fresh concrete is poured over them.

How far apart are rebar chairs?

Rebar support chairs should be installed by laborers who have experience with steel reinforcement placement. The maximum spacing of chairs should be 48 inches.

Are rebar chairs left in concrete?

Standard Rebar Chairs The most common type of chair simply suspends the rebar off the ground so that it becomes fully embedded in the concrete as it is poured. They are often used on foundation footings, concrete slabs, and other flatwork. The chairs may be made of metal or plastic or other non-corrosive material.

How far should rebar be off the ground?

Reinforcement should also be placed low enough so saw cutting does not cut the reinforcement. For welded wire reinforcement, the Wire Reinforcement Institute recommends steel placement 2 inches below the surface or within the upper third of the slab thickness, whichever is closer to the surface.

Does rebar sink in concrete?

And when steel corrodes, it creates iron oxide that expands inside the concrete. … Neglecting these steps can cause rebar to sink to the bottom of a slab or come too close to an outside surface before the concrete cures, eventually leading to premature corrosion of the reinforcement due to lack of cover.

Why are chairs used when placing steel reinforcing?

Conclusion. Spacers and chairs provide the much-needed support to the reinforcement bar ensuring proper concrete cover. Sometimes, the bars can be too heavy for the plastic chairs, in which case, Aspros are used.

How many chairs do I need for wire mesh?

RE: Spacing for wire mesh chairs should have about 1,250+ chairs to handle the 5,000 sq ft of mesh . . . that would be 24″ spacing ~~ 4 sq ft per chair.

Article first time published on

How do you walk on rebar?

Always wear gloves and eye protection when handling and tying rebar. Wear additional PPE as required, which may include a hard hat, high-visibility safety vest, hearing protection and work boots. Tuck in shoelaces and pant legs to prevent hang-ups when walking through flatwork.

Can you put rebar in the ground?

Assuming you are talking about small-diamter bar, which seems likely as you are concerned about bending it, I would suggest a long (12-18″ or so) drill bit and drilling a hole in the ground to get the rebar started straight, before finishing with a hammer.

What's the average height of a chair?

Similar to table height, there is no definite industry standard for chair heights. Chair heights generally range up to 17–19 inches (43–48cm) from the chair leg to the top of the seat. Stool heights range from 16–23 inches (40–58cm). These chair heights are standard to fit under tables from 28–30 inches (71–76cm).

Why do we put chair in slab?

5) chair bar provided in footing and slab reduce the chance of collapsing and touching of upper cage reinforcement and lower cage reinforcement to one another and reduce the failure of compression and tension zone in concrete structure.

Why do we provide chairs?

Chairs are provided to keep the top reinforcement in place and maintain proper spacing between top and bottom reinforcement.

Is code a reinforcement?

IS: 456 – code of practice for plain and reinforced concrete.

How are slab chairs calculated?

The equation is quite simple, which is good news. First, divide the length of your slab’s perimeter beam by 1.2; this will give you the total amount of trench mesh chairs. Next, you need to multiply the number of waffle pods by 4 to find the total number of bar chairs you’ll need.

Is rebar necessary in footings?

Including rebar in a concrete footing means that you can reduce the risk of the concrete being pushed and pulled apart – cracking – from ground force pressures. Knowing this, it is generally a good idea to use rebar in footings for any structure. However, it is not required in many cases.

Does a 4 inch slab need rebar?

The thickness of rebar should be no more than 1/8 that of the slab, so a 4” slab shouldn’t have steel greater than #4 or 1/2″ bar. It’s best to check with a Structural Engineer if your slab will bridge or cantilever. What is this? For 4” concrete slabs used for driveways and patios, #3 rebar is common.

How much rebar is in a footing?

Determine the amount of rebar needed for the footings. Generally, one stick of rebar per 8 inches of footing width will suffice. If your footings are 16 inches wide, you will need to add two sticks of rebar along the width of the footing; however, if your footings are 24 inches wide, you will need three sticks.

How far apart should rebar be in concrete?

Place rebar in a grid pattern with a spacing between bars of approximately 12 inches. In either case, blocks should be used under the reinforcement to keep centered within the concrete. Synthetic fibers have also proven to be beneficial in driveways as a way to reduce shrinkage cracks.

Can I use brick to support rebar?

A 1988 Portland Cement Association publication “Building with Concrete, Brick, and Stone” states: “In laying out the reinforcement, support the rebar on wire stilts (bar supports) made specifically for the purpose, or on pieces of broken concrete or rocks. Never use clay brick for this purpose.”

What is ACI 117?

Specification synopsis: This specification provides standard tolerances for concrete construction and materials. This document is intended to be used by specification writers and ACI committees writing standards as the reference document for establishing tolerances for concrete construction and materials.

Why rebar cover is required?

to protect the steel reinforcement bars (rebars) from environmental effects to prevent their corrosion; to provide thermal insulation, which protects the reinforcement bars from fire, and; to give reinforcing bars sufficient embedding to enable them to be stressed without slipping.

Is rusty rebar OK to use?

The ASTM standard for deformed steel reinforcement (A706) and the Concrete Reinforcement Steel Institute (CRSI) Manual of Standard Practice both give the same recommendation: Reinforcing bar with rust, mill scale, or a combination of both is satisfactory, provided the minimum dimensions, weight, and height of the …

How do you keep rebar from rusting on concrete?

Additional measures to mitigate corrosion of steel reinforcement in concrete include the use of corrosion inhibiting admixtures, coating of reinforcement (for example, with an epoxy resin), and use of sealers and membranes on the concrete surface. Sealers and membranes, if used, have to be periodically reapplied.

Is rusty rebar bad for concrete?

Rusting rebar can expand up to 4 times its diameter – resulting in cracked and damaged concrete. As the rebar rusts, the strength of the bond between the rebar and the concrete deteriorates which ultimately results in weaker concrete. Also, corrosion and pitting contribute to structural fatigue.

How do you keep wire mesh off the ground?

Plastic stools, often referred to as mesh or rebar chairs, are used to hold the supporting steel two inches off of the ground to center the mesh within the concrete as it is being poured.

How many chairs do I need for a concrete mesh?

Generally, a minimum of 22 bar chairs per sheet of 6m x 2.4m mesh is required. Otherwise, you can divide the slab area by 0.56. Quick tip; Bar chairs are commonly sold in bags of 100, therefore, ensure you round up to the nearest hundred.

Should reinforcing bars touch the soil?

It’s not going to affect what you’re doing. It may happen where the rebar is stuck into the ground, but it’s not going to keep rusting the length of the bar after it’s encased in concrete. The rebar poking into the ground will do nothing to make your posts more stable, but it may be easier for you to pour it that way.

What size hole do you drill for 1/2 rebar?

Project Instructions Drill a hole 1/16 to 1/4 inch larger than the diameter of the threaded rod or railing you are setting. TIP: the hole depth should be a minimum of 4 1/2 times the diameter of the bolt (a 1/2 inch threaded rod would require a hole depth of 2 1/4 inches).
