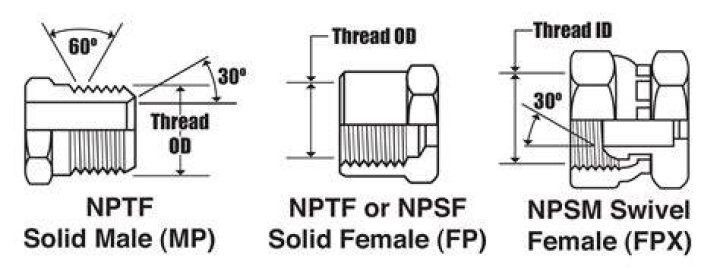

NPSF threads are generally used with soft or ductile materials which will conform at assembly to the taper of the external threads. They can also be used in applications with thick brittle material as well. They are primarily intended for assembly with NPTF external threads.

What does Npsf thread mean?

NPSF. National pipe straight–fuel. Dryseal USA (American) Standard Fuel Internal Straight Pipe Thread. Internal only, straight. NPSH.

What is the difference between Npsm and Npsf?

NPSF (Dryseal) straight pipe working gages are used to check size of the straight internal threads intended for assembly with NPTF external threads. … NPSM straight thread gages are designed for free fitting mechanical joints.

Is Npsf the same as NPT?

, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). Both threads have a 60° included angle and have flat peaks and valleys.

What is the difference between NPS and Npsf?

NPS = National Pipe Straight. … NPSF = National Pipe Straight Fuel is used in Dry Seal Applications and is defined in ANSI/ASME B1. 20.3. The NPSF gages are defined in ANSI/ASME B1.

What is the difference between NPT and BSP?

Both NPT and BSP are pipe thread standards for screw threads used on pipes and pipe fittings to seal pipes. … With NPT, the peaks and valleys of the threads are flat. In BSP, they are rounded. Secondly, the NPT angle of the thread is 60 degrees and the BSP angle is 55 degrees.

Is NPSH the same as NPT?

Fire hoses with National Pipe Straight Hose Thread (NPSH) has the same threads per inch as National Pipe Thread (NPT) but the threads do not taper. This allows a female coupling to thread onto a NPT fitting without being a permanent connection.

What is universal pipe thread?

Universal Thread Push-In Fittings Specifications Universal Threaded Push-In Fittings are designed with a lip-type seal design for exceptional sealing in both pressure and vacuum applications.

Can you thread NPT into NPS?

While NPT & NPS threads will engage and seem like they fit – they will not seal properly with each other causing leaks.

Can I mix NPT and Nptf pipe fittings?

NPTF threads will screw together with NPT threads and should have no noticeable assembly problem. There will most likely be an interference fit between the root and crest on either the major or minor diameter of the thread, depending on which part is NPTF.

Article first time published on

Can NPT seal with Npsm?

NPSM is sometimes used for fluid power systems and male NPTF pipes will seal with an NPSM female pipe. However, a male NPT pipe will not fit in a female NPSM pipe. Being straight, NPSM pipes do not seal as effectively as tapered NPT pipes do. Because of this, they will require sealants to make the connection leakproof.

Is IPS same as NPT?

National Pipe Tapered (NPT) and Iron Pipe Straight (IPS) are two commonly used thread standards in plumbing. … NPT and IPS nominal sizes are always the same.

How many different pipe threads are there?

Six Most Common Types of Threads NPT/NPTF. BSPP (BSP, parallel) BSPT (BSP, tapered) metric parallel.

What does FIP and MIP mean?

Other Notes About Thread Sizing MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads. FPT stands for Female Pipe Threads and FIP stands for Female Iron Pipe which both indicate a female fitting with NPT threads.

Are NST and NH the same?

NH stands for National Hose and NST stands for National Standard Thread. This is often referred to as “fire hose thread” because fire departments use it the most. It’s popular on many fire hydrants and accessories. Garden hose thread (GHT) is also referred to as NH.

What thread is a garden hose?

Garden hose sizes come in 1/2”, 5/8”, and 3/4“. The term for male hose thread is MHT and the term for female hose thread is FHT. The NPT is an American standard set in ANSI-ASME B1. 20.1 for joining pipes and fittings.

What threads are on fire hydrants?

Most fire hydrants have two 2.5 inch hose connection outlets with 7.5 threads per inch (TPI) and one 4.5 inch-pumper connection outlet with 4 threads per inch.

Can NPT fit into BSP?

NPT/NPS and BSP threads are not compatible due to the differences in their thread forms, and not just the fact that most sizes have a different pitch. … To determine pitch, use a thread gauge or count the number of threads that fall into a 1″ span.

Will BSP fit BSPT?

Screwing a BSPP into a BSPT is not recommended. All other mixing and matching of threads is technically cross-threading (although it may “appear” to fasten correctly)… again you’re only going to get a couple threads engaging.

Is BSP tapered?

The British BSP connections include two types of threads, BSPP which are straight (or parallel) and BSPT which are tapered.

What does NPT stand for in plumbing?

The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT.

What does NPT stand for?

NPT: National Pipe Thread (tapered) is a U.S. standard for tapered threads.

What does NPS stand for in plumbing?

DN stands for diametre nominal, which denotes the size of a pipe (specifically, its inside diameter) in millimeters (mm). NPS, or nominal pipe size, is merely the non-metric equivalent in which the diameter is measured in inches (in.).

What thread is PVC?

FPT (FIPT) – aka Female (Iron) Pipe Thread. This is a type of threading that is found on the inside lip of a fitting, allowing connection to a MPT or male pipe threaded end. FPT/FIPT threading is commonly used for PVC and CPVC piping systems.

What is UNF and UNC thread?

Unified form thread designations are represented by abbreviations such as UNC (unified coarse), UNF (unified fine), UNEF (unified extra fine), UNS (unified special) and UN (unified constant pitch), with the thread major diameter preceding the designation for example, 9/16” UNC, 9/16” UNF.

What is Nptf fitting?

National Pipe Tapered Fuel (NPTF) thread is one of the most common taper pipe threads in the United States. … NPTF fittings are used in a wide array of applications, including electrical conduits, fuel connections, hand railings, and high pressure pipes that carry gas or fluids.

Are Nptf threads reusable?

Though the same function does not happen with NPT fittings, it is not recommended that NPT fittings be reused. Overtightening is common, particularly when a fitting is reused, which can cause galling or increase the likelihood of leakage.

Can you reuse Nptf fittings?

Tapered Thread Pipe Fittings Repeated assembly and disassembly can distort the threads, so it’s important to thoroughly inspect the threads for damage before reusing one of these fittings. It would not be unwise to replace the male fitting any time you disassemble a tapered thread fitting.

What is a 1/2 Npsm thread?

Nominal DiameterMajor Diameter mmMajor Diameter Inch1/2″ – 14 NPSM21.3360.8403/4″ – 14 NPSM26.6701.0501″ – 11 1/2 NPSM33.4011.3151 1/4″ – 11 1/2 NPSM42.1641.660

Is Npsm the same as BSPP?

BSPP (parallel) male connection is comparable to NPSM male except most sizes have a different thread pitch. A captive seal is made using metal to metal angled surfaces or a combination of metal to metal and an O-ring. This fitting connection type is very similar (but not interchangeable) to the American NPSM male.

What does 1/2 inch IPS mean?

IPS refers to Iron Pipe Size. It’s the measurement of the inside diameter of the pipes. The measurement of your pipe could be ½” IPS. It means that the diameter of the inside of the pipe is ½”.
