A detail view is a view of the model that appears as a callout or section in other views. This type of view typically represents the model at finer scales of detail than in the parent view.

What is a detail view drawing?

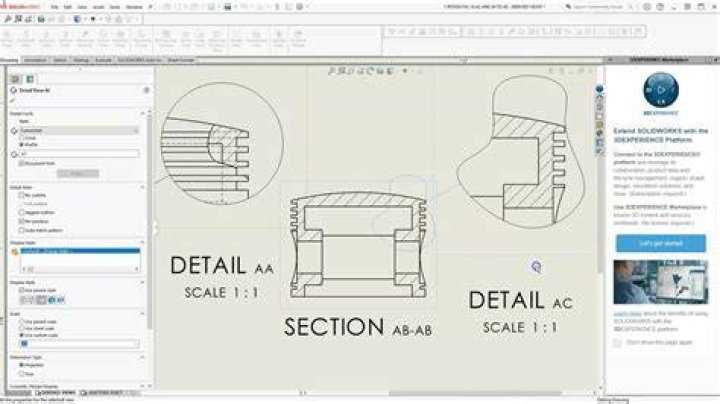

You create a detail view in a drawing to show a portion of a view, usually at an enlarged scale. This detail may be of an orthographic view, a non-planar (isometric) view, a section view, a crop view, an exploded assembly view, or another detail view.

What is the difference between detail view and section view in Solidworks?

Detail Views are used in drawings to show a portion of a view at an enlarged scale. … Section Views are used in drawings to show internal features of a part by using a straight or offset section line.

How do you create a detail view?

1. In the Drawing window, click Detail View in the Views toolbar ( Details sub-toolbar). …
2. Click the callout center. …
3. Drag to select the callout radius and click a point to end the selection. …
4. Click to generate the detail view.

Where is detail view on Solidworks?

(Drawing toolbar), or click Insert > Drawing View > Detail.

What is a detail view solidworks?

You create a detail view in a drawing to show a portion of a view, usually at an enlarged scale.

How do you do detail view in Autocad?

1. Click Layout tab > Create View panel > Detail drop-down > Rectangular. …
2. Click the view to use as the parent view. …
3. Click the center of the area to magnify.
4. Click a corner to define the area to magnify.

What is detailing in Catia?

Creating a detail drawing view allows a user to enlarge areas within a drawing view to a different scale. In CATIA V5, you can select to make a detail view area in a circular shape, or a custom shape that the user creates. … Then, complete your drawing with dimension, notes, specialty symbols, etc.

What is detail drawing in engineering?

Detail drawings provide a detailed description of the geometric form of a part of an object such as a building, bridge, tunnel, machine, plant, and so on. They tend to be large-scale drawings that show in detail parts that may be included in less detail on general arrangement drawings.

Can you section view a detail view?

You can add broken-out section views to detail views. To add a broken-out section view to a detail view: In a detail view, click Insert > Drawing View > Broken-out Section. Sketch a closed profile such as a spline.

Article first time published on

What is the difference between section and detail?

Section cuts through small portions of construction or objects, for example, are often referred to as details. But details are not always drawn in section. They may also include enlarged portions of the floor plan or elevation.

How do you zoom in on a drawing in Solidworks?

To zoom to a drawing sheet, right-click on the drawing sheet outside any drawing views and select Zoom/Pan/Rotate > Zoom to Selection. Search ‘Zoom to Selection’ in the SOLIDWORKS Knowledge Base.

What is the purpose of detail views?

A detail view is used to clarify specific areas of a drawing. Usually, an area is enlarged so that small details are easier to see.

How do I delete detail view in Solidworks?

1. Right-click anywhere in a drawing view and select Delete.
2. Click Yes to confirm the deletion. If you delete a detail or section view, select Delete detail sketch or Delete section sketch so the sketch used to create the view is also deleted.

How do I move a detail view in Solidworks?

1. Right-click the profile sketch and select Edit Sketch.
2. Edit the profile as needed to change the shape or size.
3. Click Rebuild to update the detail view.

Where is detail panel AutoCAD?

click Home tab Details panel Detail Components . right-click the tool, and choose Detail Component Manager.

How do I create a detail callout in AutoCAD?

Select the view drawing in which you want to place the detail callout, right-click, and click Open. On the Tool Palettes, click (Properties), and click Document. Click the Callouts palette. Select a detail callout tool.

What is detailing in Creo?

The Detailed Drawings Help describes how to pass the dimensions, notes, GTOLs, and other detailing items from the 3D model directly to views on the plotted sheet in Creo Parametric. You can prepare drawings of parts and assemblies to pass information forward and backward in the design workflow.

How do I edit a detail in Creo?

1. Click Annotation and then, in the Setup group, click More.
2. Click Border in the View section. …
3. Click the cutaway or the detail border to modify.
4. Click one of the modification commands:

How do you dimension a detail view in Solidworks?

Once the dimension is imported into the Section View, expand the Detail View circle to see the entire diameter, then hold Shift and drag the dimension to the Detail View. With this dimension moved, you can resize the Detail View circle and the dimension will automatically be foreshortened.

How do I create a detail view in Autocad 2018?

1. Click Layout tab > Create View panel > Detail drop-down > Rectangular. …
2. Click the view to use as the parent view. …
3. Click the center of the area to magnify.
4. Click a corner to define the area to magnify.

What does a virtual sharp represent?

Sometimes you want a point in a sketch that represents the location of 2 lines intersecting, even though they don’t actually share a point. These points can be created and are called virtual sharps in SOLIDWORKS.

What does construction detail mean?

In construction, details provide a complete description of a specific part of an object such as a building, bridge, tunnel, machine, component and so on. …

What are the three purpose of detailed working drawing?

Working drawings might be prepared for; statutory approvals, for contractors to plan the construction works, to provide instructions on site, for the procurement of components, for the preparation of shop drawings, for the appointment of subcontractors and so on.

What are detailed drawings called?

4.1 Detail drawings. Detail drawings, sometimes called manufacturing drawings, usually show a single component and give all the information necessary for the manufacture of that component. The items these drawings should specify are: • The form or shape of the component.

How do you create a detail view in Revit?

From the Type Selector, select Detail View: Detail. On the Options Bar, select an appropriate detail scale. To reference another detail or drafting view, on the Reference panel, select Reference Other View, and select a view from the drop-down list.

How do we constrain a spline in Catia?

1. Explicit : select a line or plane to which the tangent on the spline is parallel at the selected point.
2. From curve : select a curve to which the spline is tangent at the selected point.

How do you break out a section in Solidworks?

1. In a section view, click Insert > Drawing View > Broken-out Section.
2. Sketch a closed profile such as a spline.
3. In the PropertyManager, set options.
4. Click .

What is a detail section?

Reports consist of controls that provide the labels, field values, lines, page numbers, and more that make up the report. This section is the main body of the report and is usually used to display actual values. … Theoretically, you don’t need a Detail section to have a report.

What is a plan section detail?

Plan Details Details in architectural drawings are large scale drawings that typically show how something is built. Details identify all the materials and connections for construction. Details are normally 3/4″ = 1′-0″ or larger. Plan details are drawn in a plan view at a large scale to show the construction.

How do you fit a drawing to a screen in Solidworks?

Press F, click Zoom to Fit on the View toolbar, or click View > Modify > Zoom to Fit.
