, unstable GI bleeds, ruptured AAAs, or any other situation in which the necessity for rapid transfusion of blood products is anticipated. It is a short, wide, single-lumen central venous catheter

What is the difference between a Cordis and central line?

This “introducer” can be used as an additional central line regardless of whether a catheter is inserted through the centre. The introducer is often called the “Cordis”; this was the Trade name for the first product ever produced. … Thus, the catheter is called a Peripherally Inserted Central Catheter.

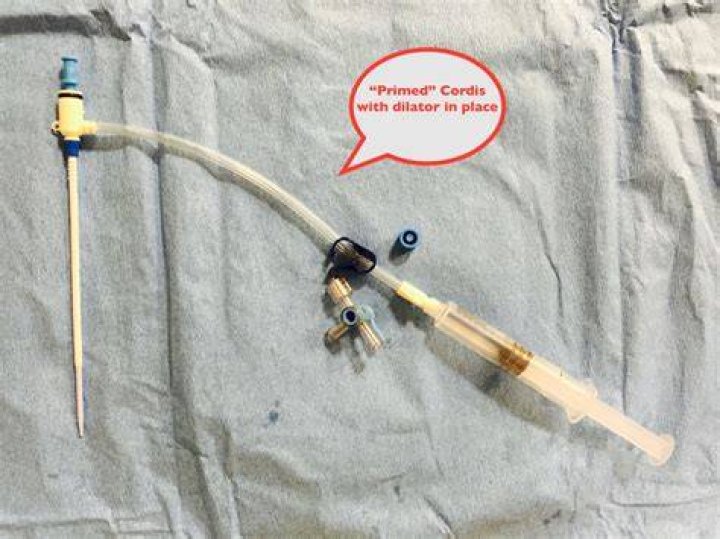

Where is a Cordis catheter placed?

Sometimes called by the brand name “Cordis” or referred to as a “sheath.” Typically inserted into the jugular, subclavian or femoral vein for the purpose of rapid fluid administration or to facilitate the placement of a pulmonary artery catheter (PAC), temporary venous pacemaker or a Single Lumen Infusion Catheter ( …

What type of catheter is a Cordis?

A Cordis is the same sheath introducer, but only has one side port. It is purely a single-lumen device. You can also float a swan ganz catheter, also known as a PA catheter, or a transvenous pacer through this puppy. This also is a type of central line.

Is cordis a central line?

cordis is the preferred central line in trauma , unstable GI bleeds, ruptured AAAs, or any other situation in which the necessity for rapid transfusion of blood products is anticipated. It is a short, wide, single-lumen central venous catheter that is perfect for rapid large-volume infusions.

Is a Cordis a venous sheath?

A nonpyrogenic polyethylene sheath system with a hemostatic valve assembly and side port extension developed by the Cordis Corporation is now routinely used for central venous access in critically ill patients.

Can you draw blood from a cordis?

a cordis is a large-bore, usually single-lumen central line. it can be placed ij, subclavian, or femoral. … the facilities i have worked in have allowed blood draws from cordis lines, with the same protocol as any other central line (5-10 cc waste, flush after blood is drawn).

What gauge is a Cordis?

It took 46 seconds when a 8.5 Fr cordis was used. At 2.8 mm in diameter, this is approximately a 12 gauge needle in size.

What products does Cordis make?

• PTCA Balloons.
• Coronary stents.
• Guiding catheters.
• Diagnostic catheters.
• Diagnostic guidewires.
• Steerable guidewires.
• Catheter sheath introducers.
• Sheathless access system.

Can you put a triple lumen through a Cordis?

First, standard single-, double-, and triple-lumen central venous access catheters are not designed to fit the cordis and so there is the risk of back leakage of blood. … Placing a standard central line catheter with any number of lumens through a Cordis creates an infection risk.

Article first time published on

What is a rapid infusion catheter?

The rapid infusion catheter (RIC) is a device used to convert standard peripheral intravenous (PIV) access into a large-volume resuscitation portal.

Is a Quinton catheter a Permacath?

Vascath (Quinton catheter) Vs Permcath (Permacath) Both of these catheters are large bore catheters although permcaths (Permacaths) tend to be slightly larger bore catheters. Both types of catheters are used for dialysis or plasmapheresis.

What is a Swan Ganz catheter used for?

Swan-Ganz catheterization (also called right heart catheterization or pulmonary artery catheterization) is the passing of a thin tube (catheter) into the right side of the heart and the arteries leading to the lungs. It is done to monitor the heart’s function and blood flow and pressures in and around the heart.

Which lumen is used for TPN?

Record intake and output. If a double- or triple-lumen catheter is used, label one lumen for total parenteral nutrition (TPN) use exclusively. Use an IV pump to maintain a constant infusion rate. If the infusion falls behind schedule, the rate can be increased by up to 20% in order to achieve the energy goal.

Are central lines Power Injectable?

Power injection of contrast media through central venous catheters for CT examinations is feasible and safe when set hospital guidelines and injection protocols are followed. This technique provides an acceptable alternative in patients without adequate peripheral IV access when bolus contrast enhancement is desired.

How many lumens can a PICC have?

PICC lines can have 1-3 lumens, which allow medications to be attached and flow through the line. Additionally, blood draws for lab purposes can also be extracted from the line. The one pictured has two lumens, which have orange “caps” to help keep the line sterile.

Can you run fluids through a Cordis?

If a venous sheath introducer (Cordis) has been placed in the Jugular vein for critically ill patients who require large volume fluid infusions or a transvenous pacer wire, the Cordis must have a continuous IV infusion maintained at all times. A Cordis must have a minimum of 30 mL/hr.

What's the difference between a central line and a PICC line?

What Are PICC Lines? A peripherally inserted central catheter (PICC line) is a type of central line. A central line (also called a central venous catheter) is like an intravenous (IV) line. But it is much longer than a regular IV and goes all the way up to a vein near the heart or just inside the heart.

Should you draw blood cultures from a central line?

a. Peripherally drawn blood cultures are the optimal specimen. Blood cultures obtained via central venous catheters are more likely to be contaminated by organisms residing in the device itself or device components (i.e., tubing, end caps).

Is a Vascath a central line?

Vas Cath for Dialysis is a Large Bore Central Venous Catheter Line placed in the Jugular Vein or Femoral Vein and used for Dialysis to address Kidney Disease and Renal Failure. Vas Cath is a temporary dialysis catheter which can typically be used for up to 30 to 45 days.

What is a triple lumen central line?

Centrally inserted, Triple Lumen Central Venous Catheter Three separate non-communicating vascular access lumens within a single catheter body. Proximal lumen for blood sampling, medications and blood administration. Distal lumen for CVP monitoring, blood administration, medications.

Who owns Cordis?

Cardinal Health and Cordis As of October 2015, Cordis is a part of Cardinal Health, bringing together two important players in the healthcare industry and creating an unmatched offering in the cardiovascular space that will ensure greater access to quality products and services worldwide.

When did Cardinal Health buy Cordis?

Cardinal Health acquired Cordis from Johnson & Johnson in 2015 for $2 billion. Cardinal Health said it was selling its Cordis cardiovascular business to private equity firm Hellman and Friedman for $1 billion. The transaction is expected to close in the first half of Cardinal Health’s fiscal year 2022.

Who bought Cordis?

DUBLIN, Ohio, March 12, 2021 /PRNewswire/ — Cardinal Health (NYSE: CAH) today announced that it has signed a definitive agreement to sell its Cordis business to Hellman & Friedman (H&F) for approximately $1 billion, which includes buyer’s assumption of certain liabilities and seller’s retention of certain working …

Can you infuse through an introducer?

It was possible to infuse fluid more rapidly through the introducer side-port while using pulmonary vascular pressure to titrate the infusion rate.

Is a triple lumen catheter a central line?

Triple-lumen catheter The most commonly used catheter for central venous access is the triple lumen catheter. They are preferred (particularly in the ICU) for their three infusion channels that allow for multiple therapies to be administered simultaneously.

What gauge is a 4 French catheter?

GaugeDia. in mmDia. in Inches41.330.053″51.670.066″620.079″72.30.092″

How big is a Mac catheter?

This may sound excessive, but critically ill trauma patients, for example those with severe head injuries, may easily end up on 5 or more infusions in ICU. This makes the MAC a multi-purpose, resus and ICU line. The main body of the catheter is 10cm long. i.e They are almost the same!

What are CVADs with multiple large bore lumens used for?

CVADs come in different sizes with either single or multiple lumens. With multiple lumens, each lumen provides independent access to the venous circulation. This allows two incompatible drugs or fluids to be infused simultaneously.

Can you have two central lines?

Using two central venous catheters on one patient at the same time can significantly increase the risk of developing a central line-associated bloodstream infection, according to a study published March 4 in JAMA Network Open.

What are midline catheters?

A midline catheter is an 8 – 12 cm catheter inserted in the upper arm with the tip located just below the axilla. Insertion should be ultrasound guided by an experienced operator to ensure large calibre basilic or brachial veins are selected to avoid thrombosis.
