The proper procedure for resyncing or relearning the crankshaft position is called the “CKP Variation Learn.” The CKP Variation Learn procedure resets the positional information in the PCM’s memory and replaces it with updated information from the new crankshaft sensor.

What is the purpose of the CKP sensor?

Function. The functional objective for the crankshaft position sensor is to determine the position and/or rotational speed (RPM) of the crank. Engine Control Units use the information transmitted by the sensor to control parameters such as ignition timing and fuel injection timing.

How do you relearn a crankshaft position sensor?

1. Turn off all of the accessories. …
2. Accelerate the vehicle to 55 mph at part throttle. …
3. Cruise at 55 mph for another 5-6 minutes.
4. Decelerate to 45 mph without using the brakes, and maintain 45 mph for 1 minute.
5. Perform 4 deceleration cycles, without using the brakes, of 25 seconds each where no specific speed is necessary.

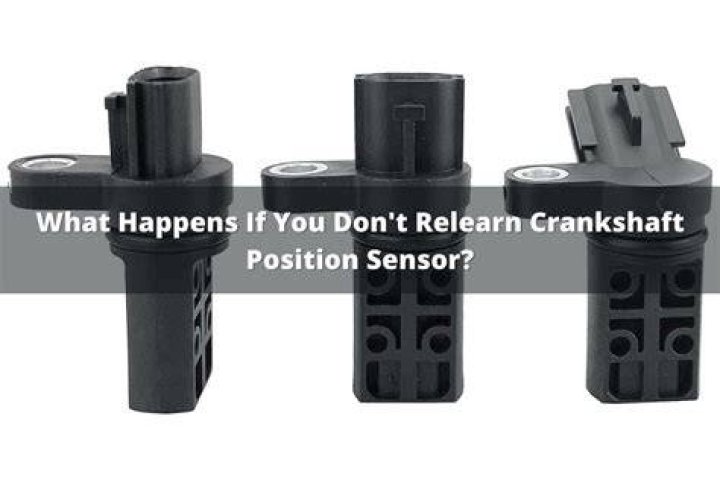

What happens if you don't do a crank relearn?

Remember: That you are going to increase the engine speed to approximately 3000 RPM, 4000 RPM, or 5150 RPM. … Failure to do such will result in over-revving of the engine, causing possible engine damage.

How do I fix code P0315?

1. Repair or replace wiring harness around crankshaft position sensor.
2. Repair or replace crankshaft position sensor.
3. Repair or replace crankshaft or related components.
4. Repair or replace timing belt.
5. Repair or replace powertrain control module.

What are the symptoms of a broken crankshaft?

• Your Check Engine Light is Blinking.
• It’s Difficult to Get Your Vehicle to Start.
• Your Vehicle is Stalling and/or Backfiring.
• The Engine is Making Your Vehicle Vibrate.

What is the 7 symptoms of a bad camshaft position sensor?

• Check Engine Light Comes On. The most common indicator that the camshaft position sensor is failing is a lit Check Engine light. …
• Poor Drivability. …
• Transmission Shifting Problems. …
• Bad Fuel Economy.

What is code P0315?

P0315 OBD-II Trouble Code (Crankshaft Position Sensor Variation Not Learned) By Jerry Renshaw. You probably know by now that an illuminated Check Engine Light (CEL) means that a sensor that monitors a system in your drivetrain has noted a reading outside of normal parameters.

What happens if crank sensor goes bad?

The most common symptom associated with a bad or failing crankshaft position sensor is difficulty starting the vehicle. … If the crankshaft position sensor is having a problem, the vehicle may have intermittent starting issues or not start at all.

What is P0365 code?

What the P0365 code means. Essentially, the P0365 code means that there has been a lack of voltage detected from the camshaft position sensor B in bank 1 by the PCM within a few seconds of the engine starting. … Bank 1 means that the sensor is located in the engine bank with cylinder 1.

Article first time published on

Can a crankshaft position sensor cause limp mode?

Limp Mode means the engine is not able to perform as it should and has been incapacitated . If the engine starts, then definitely it cannot be due Cam Position Sensor or Crank Position Sensor malfunction. It could be Coolant Temperature Sensor or the Manifold Pressure Sensor which can cause this in an engine.

What does code po336 mean?

What Does the P0336 Code Mean? Diagnostic trouble code (DTC) P0336 stands for “Crankshaft Position Sensor “A” Circuit Range/Performance.” … This engine code is set when the PCM receives a signal from the crankshaft position sensor that deviates from specification.

Should you replace both camshaft sensors?

Two on each head and one for each camshaft. … I wouldn’t recommend replacing camshaft sensors without a thorough diagnosis. The 1200 camshaft code is a cam timing problem. It could be a mechanical problem with the chain or a problem with the system that adjusts the variable valve timing.

What sensors can cause a car not to start?

A bad Crankshaft Position sensor is a common cause of no starts. The signal from this sensor goes to the PCM or ignition module that switches the ignition coil(s) on and off. If you have an RPM signal, a bad ignition module or PCM may not be switching the coil(s) on and off.

Can a camshaft position sensor cause rough idle?

Engine Idles Roughly: A rough idling engine could be caused by a failing camshaft position sensor. This issue is more evident when the engine is idling. Hesitation: Hesitation during acceleration is a common issue that you may experience with a bad camshaft sensor.

Can you replace a crankshaft without removing the engine?

In addition, at the back of the crankshaft lies an oil seal. … In either event, the only way to repair the problem is to remove the crankshaft. Although crankshafts are traditionally removed after the engine has been pulled from the engine bay, it is possible to remove the crankshaft without pulling the engine.

Where is the CKP sensor located?

Sensor Location The (CKP) sensor will be located at the lower section of the engine block. It can either be at the front; rear or middle of the engine at the crankshaft level.

How do you tell if a crank needs to be turned?

Generally speaking, if the crank shows less than 0.001-inch runout, it’s probably fine. If the crank shows more than 0.001-inch runout, it needs to be either straightened or replaced. Crank straightening is a precision task that should only be handled by a skilled specialist.

Does crank sensor control fuel pump?

Technically the crank sensor does indirectly control the fuel pump on a lot of vehicles, when the ignition is switched on the pump runs for a couple of seconds to pressurise the system, it then stops and will only start to run again when the engine starts to rotate, this rotation is sensed by the crank angle sensor …

Will a crank sensor throw a code?

From what I understand so far, they almost always throw a code when they go out.

What is code P0016?

What Does the P0016 Code Mean? Diagnostic trouble code (DTC) P0016 stands for Camshaft Position A – Camshaft Position Correlation (Bank 1). … If from the sensor data, the PCM determines the crankshaft and camshaft(s) are not in sync, it will set code P0016 and turn on the Check Engine Light.

What is code P0017?

What Does the P0017 Code Mean? Diagnostic trouble code (DTC) P0017 stands for “Camshaft Position B – Camshaft Position Correlation (Bank 1).” Like P0016, this code indicates that your car’s powertrain control module (PCM) detects a misalignment between the crankshaft and camshaft positions.

How do I fix code P0344?

1. Replacing a weak or dead battery.
2. Replacing chafed, melted, or otherwise damaged wiring.
3. Cleaning electrical connections to the camshaft position sensor.
4. Replacing the camshaft position sensor.
5. Replacing the crankshaft position sensor.

Can a bad crankshaft position sensor cause transmission problems?

Hello – No, the crankshaft position sensor will not affect your transmission at all – except when it fails, and the engine ceases to run. … The sensor may affect shifting and also the way the engine runs. Your engine may also have went into failure mode if the crankshaft sensor is failing.

Can you repair a crankshaft position sensor?

Once they have verified that it is the crankshaft position sensor causing the problem, then you can proceed to have the sensor replaced. The replacement cost of the crankshaft position sensor is anywhere from $120 to $300. The cost of the part itself will be around $75 to $120.

How do you clean a crankshaft sensor?

Spray a small amount of solvent on the sensor. Wipe it dry with another rag. Replace the camshaft sensor, and tighten the screws. Attach the three wires back into their original positions, and connect the negative battery cable.

What is code P0366?

OBD-II Code P0366 is defined as a Camshaft Position Sensor “B” Circuit Range/Performance. The Camshaft Position Sensor measures the exact rotational position of the camshaft. This provides a critical data signal used by the engine control module (PCM) to control the fuel injectors and ignition coils.

What sensors produce their own voltage?

A voltage-generating sensor generates its own voltage signal in relation to the mechanical condition it monitors. This signal in turn relays to the computer data about the condition of the system it controls. A resistive sensor reacts to changes in mechanical conditions through changes in its resistance.

What does a bad camshaft sound like?

The symptoms of a bad camshaft include frequent backfiring and popping. You may also experience cylinder misfires at low and high speeds. Additionally, if your camshaft lobes are worn, you may hear tapping and ticking noises from the upper engine.

Do you have to disconnect battery to change camshaft position sensor?

The camshaft position sensor is generally mounted in the block or cylinder head, depending on engine design. Step 2: Disconnect the negative battery cable. Disconnect the negative battery cable and set it aside.

Are there two camshaft position sensors?

Although there’s really only a need for one (the purpose of the CMP – Camshaft Position Sensor – is to interpret the CKP – Crankshaft Position Sensor – signal to figure out which cylinder of the pair coming up is doing what,) I’m sure it’s possible for some engines to have one CMP for each camshaft (meaning up to four. …
