In the Rv world, a 30-amp power service is defined as an outlet that offers 120 volts and outputs power through a three-prong male cable and a 30-amp breaker. The 30-amp Recreational Vehicle plug is usually referred to as the RV-30. The electrical cap reveals a U-shaped pin and two flat pins that are angled.

What size wire do I need for 100 amp?

When it comes to the lines connecting master and secondary panels, where the line will carry as much as a full 100 amps, use a 2-gauge non-metallic sheathed electrical cable. The cable must contain one or two hot wires depending on your needs, one neutral wire, and one ground wire. Each wire should be 2-gauge in size.

Will #8 wire carry 50 amps?

8-gauge copper will handle fifty amps, but it will get hot (75 degrees C).

What size wire do I need for 50 amps?

50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.

How many amps is 1 ought wire good for?

Wire Size75°C (167°F)AWG(mm²)Copper1(42.4)1301/0(53.5)1502/0(67.4)175

Can 12 gauge wire handle 25 amps?

A 12 gauge wire is rated for 25 amps. NEC only allows for it to be protected at a max of 20 amps (unless following an exception for motor loads).

Can I use a 50 amp breaker for a 40 amp stove?

2 Answers. Using a 50A plug and receptacle is allowed on a 40A circuit because of an exception in the Electrical Code.

Can you run a 100 amp sub panel off a 200 amp main panel?

2 Answers. Can you add a 100 amp breaker to your main panel? Yes you have 12 slots the double pole breaker will only take 2 slots.

Can I use 12 gauge wire on a 15 amp circuit?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

How many wires do I need for a 200 amp service?

RESIDENTIAL UNDERGROUND SERVICE INSTALLATION 100-200 AMP, 120/240 VOLT, 3 WIRE, SINGLE PHASE. 1 3 CONDUCTOR SERVICE TO HOUSE. SEE NOTE E. 2 NON METALLIC CONDUIT IF REQUIRED.

Article first time published on

Can you run a 100 amp sub panel off a 100 amp main panel?

First the panels you are looking at that are rated 100A simply means you can use them for any application up to 100A. You can for example add a 60A breaker to your existing panel and protect the new subpanel with a 100A rating.

What size wire do I need to run 50 amps 100 feet?

According to the American Wire Standard (AWS), a 50-amp circuit breaker requires a wire of at least 6-gauge as the conductor for the circuit. Using a thinner wire gauge will result in your electrical system not being up to code and can pose a severe safety risk.

What wire is needed for 220v 60 amp?

For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG. All household wires have a rating of at least 600V, so only amperage really matters when it comes to determining wire gauge. Therefore, the wire size for 60 amp 220v, for example, is still 6 to 4 AWG.

What wire do I use for a 40 amp breaker?

The size wire you need to operate with a 40-amp breaker safely is an 8-AWG wire. It is possible to install a 40-amp circuit breaker on a larger gauge wire such as a 6-AWG wire, but installing it on a smaller gauge wire will violate the code.

Can you use 8-gauge wire on a 30 amp breaker?

Originally Answered: Can an 8-gauge wire handle 30 amps? Yes, it can. Under the NFPA Article 70 (National Electrcal Code), #8 wire is rated for 50 amps under certain conditions, however it is usually protected at 40 amps.

Can 6 gauge wire handle 50 amps?

Yes, a 6 gauge wire can definitely handle 50 amps. A 6 gauge wire will handle amperage all the way up to 55. You will find that most appliances use a 50 amp breaker.

What size wire do I need to run 150 feet?

150 Foot Run – A 120-volt circuit on a 20 amp breaker will require 6/2 AWG wire for 150 feet.

How many amps can 350 mcm carry?

SizeTemperature Rating of Copper Conductor(AWG or kcmil)60°C (140°F)90°C (194°F)350 KCMIL260350400 KCMIL280380500 KCMIL320430

Do they make 30 amp stoves?

Shop 30 amp ranges from top brands like GE, Kenmore and Frigidaire in finishes like stainless steel, black and white, and enjoy a range that is compatible with your home’s breakers. For more great ranges, check out gas ranges and electric ranges.

What size breaker is needed for an electric range?

The industry standard for an electric stove is a 50 amp double-pole circuit breaker.

How much can you run off a 50 amp breaker?

A 50-amp breaker can run appliances like ovens, hairdryers, air conditioners, and multiple lights simultaneously while (possibly) still sparing power. The reason for this breaker’s capacity is because it can hold up to 12,000 watts running on a 240-volt circuit (50-amps x 240-volts).

Will a 12 2 wire carry 30 amps?

No. 12 gauge wire is rated for a maximum of 20 amps. You need a minimum of 10AWG wire for 30 amps.

How far can you run 12 2 wire on a 20 amp breaker?

Originally Answered: How far can you run 12 gauge wire on a 20 amp circuit? About 400 feet. After that voltage drop is a factor and the gauge will have to be increased or the voltage increased.

What is the max amps for 12 gauge wire?

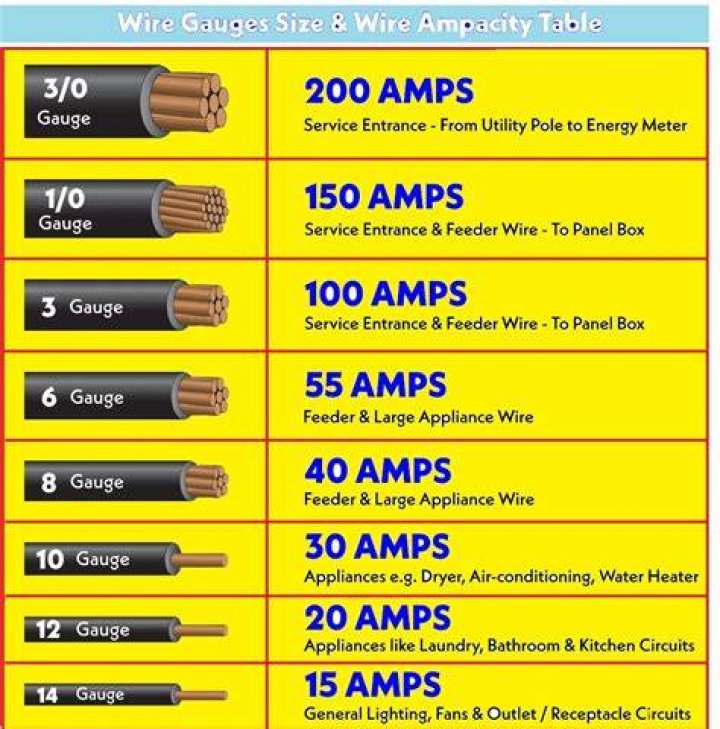

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

What is a Romex?

Romex is the trade name for a type of electrical conductor with non-metallic sheathing that is commonly used as residential branch wiring. … Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC).

What happens if you use 14 gauge wire on a 20 amp circuit?

Originally Answered: What happens if you use a 14 gauge wire on a 20 amp circuit? 14 gauge wire is rated for 15 Amps. A 20Amp breaker/fuse would risk fire. The wire gets hot enough to melt the insulation and start fire.

What happens when you put a 15 amp receptacle on a 20 amp circuit?

Nothing will happen. Some people think that you ran the risk of overloading the outlet, causing it to overheat before starting a fire. You cannot completely ignore this concern. An appliance that should only draw 15 Amps can suffer a malfunction, causing it to pull more current than is safe.

Is a double 50 amp breaker 100 amps?

No. It is 100 amp. And the two 50 amps breakers that are tied together are 50 amps, not 50 + 50 = ! 00.

Does a subpanel need a ground rod?

Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.

Can a main panel be used as a subpanel?

There’s no problem with having a main breaker in a subpanel. It’s required if your panel is in a separate building and has more than six breakers, but there’s nothing prohibiting it in any other case.

How far can I run 4 0 aluminum?

Result: 1 conductors per phase utilizing a #400 Aluminum conductor will limit the voltage drop to 2.94% or less when supplying 100.0 amps for 250 feet on a 120 volt system.
