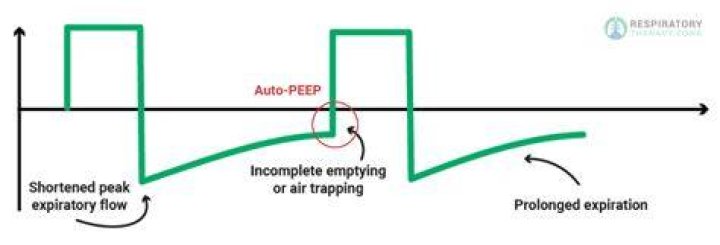

Auto-PEEP occurs in patients receiving mechanical ventilation in the acute stage of acute respiratory failure when they have excessive minute ventilation, resulting in a relatively short expiratory time. This can be explained by the common phenomenon of a time constant in the exhalation phase.

How do you stop auto-PEEP?

The following methods can be used to avoid or reduce auto-PEEP (TABLE 2): • Change the ventilator setting to provide the longest expiratory phase compatible with the patient’s comfort and adequate gas exchange • Reduce patient ventilatory demand and minute ventilation • Minimize airflow resistance.

Which is a risk factor for auto-PEEP?

Risk factors for auto-PEEP include medical conditions with severe bronchospasm (status asthmaticus or COPD exacerbation), mucous plugging, and mechanical ventilation at high respiratory rates and with long inspiratory times (short expiratory times).

How do you fix high PEEP on a ventilator?

1. Decreasing respiratory rate will increase the time between breaths and decrease the inspiratory to expiratory (I:E) ratio to 1:3 to 1:5.
2. Increasing the inspiratory rate to 60 to 100 L/min will assure fast delivery of air during inspiration, lending more time for exhalation.

What is the difference between PEEP and auto-PEEP?

The difference between PEEPtot and PEEPe corresponds with the intrinsic PEEP (PEEPi), and is also known as AutoPEEP (1). AutoPEEP may also be referred to as air-trapping, breath stacking, dynamic hyperinflation, inadvertent PEEP, or occult PEEP.

Does PEEP cause hypotension?

PEEP was subsequently increased to 20 cm H2O after which the SpO2 decreased to 79%. This was accompanied by worsening hypotension and a decrease in the central venous hemoglobin saturation (ScvO2) from 60 to 40%.

What is normal auto-PEEP?

The normal inspiratory to expiratory ratio (I:E ratio) is 1:2. In patients with obstructive airway disease, the target I:E ratio should be 1:3 to 1:4.

How is auto-PEEP measured on a ventilator?

1. PEEPi is measured by performing an end expiratory pause or hold manoeuvre.
2. expiratory circuit occlusion for 3-5 seconds allows alveolar pressure to equilibrate with airway pressure.

How do you assess for auto-PEEP?

Although not apparent during normal ventilator operation, the auto-PEEP effect can be detected and quantified by a simple bedside maneuver: expiratory port occlusion at the end of the set exhalation period. The measurement of static and dynamic auto-PEEP differs and depends upon the heterogeneity of the airways.

What does a PEEP of 5 mean?

A higher level of applied PEEP (>5 cmH2O) is sometimes used to improve hypoxemia or reduce ventilator-associated lung injury in patients with acute lung injury, acute respiratory distress syndrome, or other types of hypoxemic respiratory failure.

Article first time published on

What is Auto PEEP in COPD?

By definition, auto-PEEP occurs when air flow does not return to zero at end-exhalation. It can occur in patients with COPD during spontaneous breathing. 6,7. Dynamic lung hyperinflation caused by auto-PEEP worsens their inspiratory capacity because inhalation cannot be initiated from relaxation volume.

What causes dynamic hyperinflation?

Dynamic hyperinflation develops when there is expiratory air-flow limitation in the face of decreased time for exhalation. Expiratory flow is determined by airway resistance and driving pressure for air movement (which is the difference between mouth and alveolar pressure).

What are the indication for mechanical ventilation?

Common indications for mechanical ventilation include the following: Bradypnea or apnea with respiratory arrest. Acute lung injury and the acute respiratory distress syndrome. Tachypnea (respiratory rate >30 breaths per minute)

Where in the lung is ventilation highest?

Ventilation is 50% greater at the base of the lung than at the apex. The weight of fluid in the pleural cavity increases the intrapleural pressure at the base to a less negative value.

Is CPAP a ventilator?

CPAP is Continuous Positive Airway Pressure. It is a type of non-invasive ventilation (NIV) or breathing support.

What causes breath stacking on vent?

Breath dyssynchrony stacking (BDS) refers to the unintended high tidal volumes that occur as a consequence of incomplete exhalation between consecutive inspiratory cycles delivered by the ventilator. This can commonly occur during volume-preset assist control modes during lung protective ventilation for ARDS.

Can high PEEP cause pneumothorax?

High PEEP had been reported to be associated with pneumothorax[1] but several studies have found no such relationship[15,17,23,28,37]. Increased pressure is not enough by itself to produce alveolar rupture, with some studies demonstrating that pneumothorax is related to high tidal volume[37].

How do you treat air trapping in your lungs?

Your doctor may prescribe a type of medicine called a bronchodilator. It can open up your airways and help reverse the effects of hyperinflated lungs by allowing the trapped air to escape. Certain types of exercise might also help.

What is PIP lungs?

The peak inspiratory pressure (PIP) is the highest pressure measured during the respiratory cycle and is a function of both the resistance of the airways and the compliance of the respiratory system. From: Essential Emergency Medicine, 2007.

Can high PEEP cause atelectasis?

The application of positive end-expiratory pressure (PEEP) has been tested in several studies. On the average, arterial oxygenation does not improve markedly, and atelectasis may persist. Further, reopened lung units re-collapse rapidly after discontinuation of PEEP.

Can high PEEP cause hypertension?

High levels of PEEP can significantly influence changes in blood pressure and heart function in elderly patients with hypertension.

What is risk of keeping high PEEP?

Pulmonary barotrauma is a frequent complication of PEEP therapy. Pneumothorax, pneumomediastinum, and interstitial emphysema may lead to rapid deterioration of a patient maintained on mechanical ventilation with an already compromised respiratory status.

How do you fix high plateau pressure?

If barotrauma develops, it may be beneficial to reduce the plateau pressures further by decreasing the tidal volume, PEEP, or flow or by increasing the patient’s sedation.

How do I lower my plateau pressure?

Lower tidal volume (6 mL/kg per predicted body weight) ventilation is a strategy to reduce plateau pressure and driving pressure, roughly reflecting the level of alveolar overdistension.

Which ventilator setting should be changed first for refractory hypoxemia?

Various authors have recommended early (up to 36 h after intubation), high dose prone ventilation (for 12–18 consecutive h/day) as a rescue strategy in patients with severe hypoxemia.

What is refractory hypoxemia?

There is no standard definition of refractory hypoxemia, and this term usually considered when there is inadequate arterial oxygenation despite optimal levels of inspired oxygen. There is significant heterogeneity in opinions among intensivists regarding the definition, as demonstrated by a recent survey.

What is FiO2 on ventilator?

FiO2: Percentage of oxygen in the air mixture that is delivered to the patient. Flow: Speed in liters per minute at which the ventilator delivers breaths.

What does FiO2 70 mean?

70 Comments / Respiratory / By Joanne Reading. Oxygen, we all need it! We do not need a lot of it under normal circumstances, with 0.21 being the fraction of inspired oxygen (FiO2) of room air. FiO2 is defined as the concentration of oxygen that a person inhales.

What are normal ventilator settings?

Ventilator settings Sensitivity adjusts the level of negative pressure required to trigger the ventilator. A typical setting is –2 cm H2O. Too high a setting (eg, more negative than –2 cm H2O) causes weak patients to be unable to trigger a breath.

Is a peep of 15 bad?

To determine optimum PEEP, Gaussian mixture model was applied to the adjusted means of cardiac output and oxygen delivery. Increasing PEEP to 10 and higher resulted in significant declines in cardiac output. A PEEP of 15 and higher resulted in significant declines in oxygen delivery.

How is dynamic hyperinflation treated?

Dynamic hyperinflation can be reduced by either improving airflow during expiration or by reducing the rate of breathing to increase the time for expiration. Bronchodilators and heliox decrease airflow resistance, allowing more rapid airflow during expiration.
