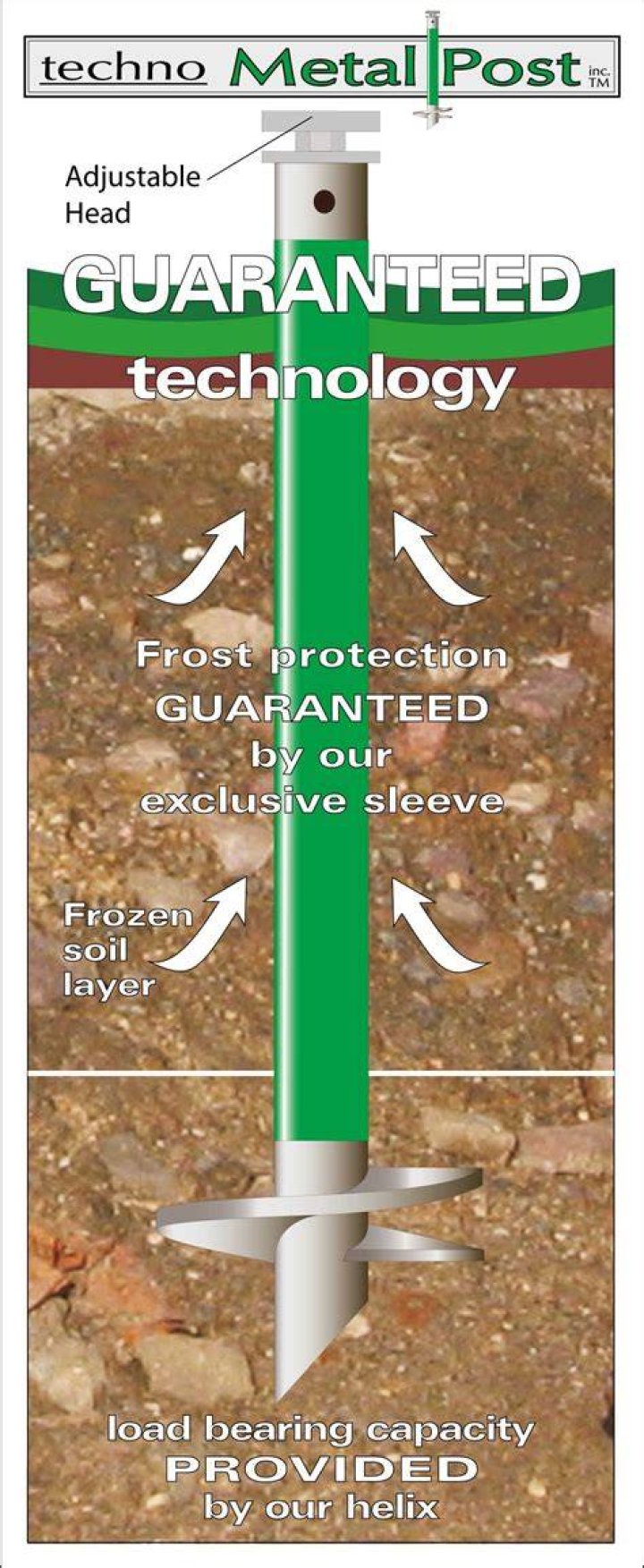

The Techno Metal Post helical pile is like a giant metal screw that is installed by a certified technician using proprietary hydraulic machinery. … No other company can guarantee that your building or structure is anchored on a solid base using Techno Metal Post helical pile technology.

Are helical piers better than concrete?

Using Helical Piles instead of Concrete Benefits: Helicals are a permanent foundation solution, that will last you a lifetime. The installation is clean and no excessive excavating is needed. … You will save on labor costs, when using helical piles. Helicals can be installed in all weather conditions, year round.

How do helical piles work?

Helical piles are installed by twisting them into the soil, just like a corkscrew is twisted into a bottle of wine. … In many cases, the steel pile itself is enough to meet the load requirements of the project. However, for more robust deep foundation systems, concrete (also known as grout) can be incorporated.

What is a helical pier?

Helical piers are shafts with helical plates that make them look like giant screws. This shape allows them to be screwed into the ground instead of pushed. They’re hydraulically rotated into the ground without applying any force to your foundation, and a pressure gauge system determines when the required depth is met.

How are helical piles installed?

Helical piles are installed by rotating the shaft of the pile. As the shaft rotates, the helical plate advances into the ground “pulling” the shaft with it. This action is much like a wood screw. A Helical Pile is generally used to resist compression and lateral loading.

How much does helical piers cost?

The cost of a helical pier depends on the design, size, and weight of the structure and the adjacent soil conditions. Due to these many variables, an installed helical pier can range in price from $15-$30 per foot. So, a typical 20-foot helical pier can cost between $300 – $600 each.

Can you build a house on helical piles?

Helical piers provide precise and dependable deep foundation anchoring in all kinds of unfavorable soil conditions, allowing builders to confidently build new projects anywhere. They’re inexpensive to install, require minimal disturbance to the property and can be customized to address any local site requirements.

Are helical piers good?

They’re important because they transfer the load of a structure or building deep into the ground rather than having the load sit on the surface. Helical piers are a great choice for deep foundation projects and structures that involve poor soil conditions, site-unique constraints, and large loads.

Are helical piers better than push piers?

Helical piers hold your home in place just like screws hold a shelf up. Installing helical piers is a faster, more efficient process than push piers. There will be minimal excavation, noise pollution, and can be installed inside or outside the home.

What is the difference between helical piers and push piers?

The primary difference between Push Piers and Helical Piers is their installation method. Push Piers are quite literally pushed deep into the earth by the hydraulic press. … Some homes are too light to use this method, which is where helical piers can come into play.

Article first time published on

Can you use helical piles for fence posts?

A fence made ​​with helical piles will remain strong and its foundations will withstand the weather. Solid, stable, straight.

Are screw piles better than concrete piles?

Although there were some significant quality differences between pile manufacturers. I did conclude that the inherent design helical screw piles is a far more reliable than using traditional concrete foundations. … Needless to say, after carefully considering the pros and cons of concrete vs screw piles.

Do I need helical piles?

When to use helical piles? Helical piles are a perfect foundation anchor solution when soil conditions aren’t suitable for the weight of a structure. When soil is soft or oversaturated, it will settle and pack down over time. This can cause the entire structure to move out of alignment, which can be dangerous.

How do micropiles work?

Micropiles are small diameter drilled and grouted friction piles. Each pile includes steel elements that are bonded into the bearing soil or rock – usually with cement grout. The bearing stratum is logged during installation drilling to assure that bearing capacity is adequate.

What is driven H pile?

A driven pile is a long, slender column made of preformed material and having a predetermined shape and size that can be installed by impact hammering, vibrating or pushing it into the ground to a design depth or resistance.

Why are screw piles used?

Screw piles are wound into the ground, much like a screw is wound into wood. This is an efficient means of installation and coupled with their mechanism of dispersing load, provides effective in-ground performance in a range of soils, including earthquake zones with liquefaction potential.

How much weight can a helical pier support?

Maximum Capacity A single helical pier may hold up to 500 tons of weight, but when together in a foundation atop a system of helical piers, the number may be even higher.

How deep do screw piles go?

Most are installed between 10 to 25 feet below the soil but may be required to extend deeper if the required torque is not met. We have had some piles installed as deep as 100 feet.

How far apart should house piers be?

While 8 to 10 feet apart is a sufficient distance for foundation piers to support most structures that would sit atop a post and pier foundation, if the building is particularly tall or made of heavier materials such as brick or metal, it’s not uncommon to place the foundation piers even closer together.

How far apart should push piers be?

Push piers are designed to lift your foundation back to its proper alignment. The process is repeated as additional piers are placed roughly 5 to 7 feet apart in the affected area. Using multiple piers allows the weight of the structure to be evenly distributed.

Why do you get helical piers?

Helical piers are used to support structures especially where soil conditions are challenging, making it hard to set up a traditional foundation system. … They are also used to repair to repair existing foundations that have problems such as cracks or are weak.

Can helical piers fail?

Helical pier failure is nearly unheard of because helical piers are drilled into load-bearing soil with a drive head drill that hooks to a mini excavator. … That is why Forever Foundation Repair uses helical piers for sinking foundations.

How many helical piers does a house need?

Assuming each pier has a bearing area of 1.6 sq ft (two helices of 12” diameter each), there must be a minimum of 405,000 lbs/12,000 psf divided by 1.6 ft2/pier, or 21 piers around the perimeter. For a safety factor of 2, there should be 42 piers.

How much does it cost to install helical piles?

How much does it cost to install helical piers? Cost per helical pier installed ranges drastically depending up the required support, soil encountered at the site, and a multitude of other factors. However, you can typically anticipate an installed fee per pile to be between $400-$2,000 for lightly loaded structures.

How long do push piers last?

Push pier manufacturers recommend that their installation should be warrantied for a minimum of 10 years.

What are push piers used for?

Push piers are foundation stabilization products that can be used to correct foundation settlement. Foundation settlement occurs when the soil under a structure can no longer uphold its weight. Some signs of foundation settlement are sticking doors and windows and cracked walls.

What is the difference between footings and piers?

A pier is a concrete columns that’s cast atop of a footing and is connected to the footing by steel rebar. … When pouring a footing that will support a pier, rebar is placed into the footing, which extends vertically out of the surface of the footing, according to the BestDeckSite website.

Are screw piles good for fence posts?

Putting up the fence’s posts is the most crucial phase of the installation. The posts’ base much reach down below the ground’s frost line if you want your fence to be sturdy and stable. That’s exactly what screw piles will allow you to do.

How long does it take concrete to set in a post hole?

Typically, you can apply some weight to the posts after 4 hours, but it’s a good idea to wait at least 24 hours before resuming fence construction. Standard concrete mixes may take up to two hours to set and should cure for 24 to 48 hours before any forces are applied to the posts.

Can I install screw piles myself?

The design of the screw pile is simple, which is what makes it a great option for many DIYers. My friend was able to pick up some screw piles at a local Home Depot and install them himself the same day.

Can you build a house on screw piles?

During construction, screw piles can be installed to support a concrete slab or the foundation’s footing. In both cases, the piles will be solidly anchored below the ground’s frost line thanks to the helix plate at the bottom the pile’s shaft.
