What are rebar chairs

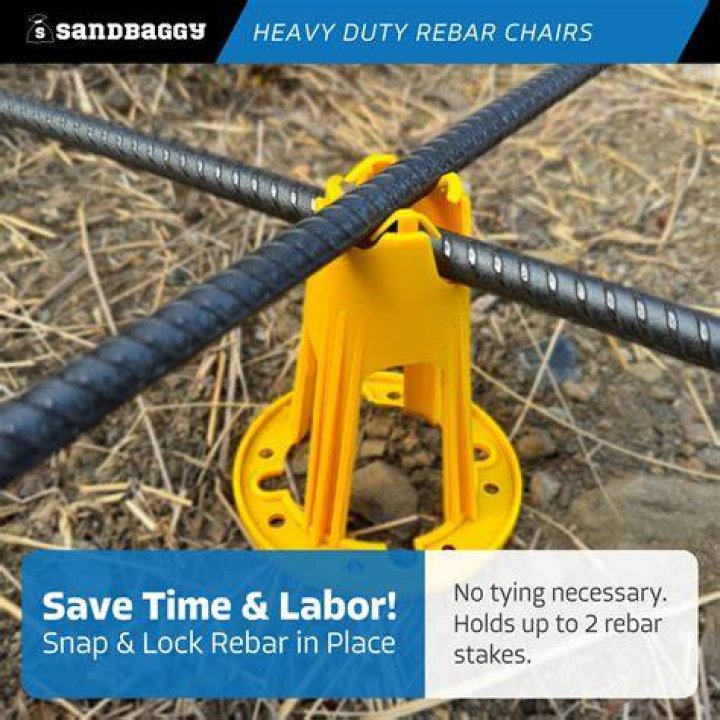

Matthew Elliott Rebar chairs are specially designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete.
What is the purpose of rebar chairs?
Rebar chairs are specially designed components made for supporting rebars, which are embedded metal bars used to reinforce newly-poured concrete.
What are reinforcing chairs?
What is a Bar Chair? Bar chairs are a spacer used to set the reinforcing bar and reinforcing mesh to the correct position in a variety of steel reinforcement applications, preventing exposure to the environment.
What are chairs in concrete?
The most common type of chair simply suspends the rebar off the ground so that it becomes fully embedded in the concrete as it is poured. They are often used on foundation footings, concrete slabs, and other flatwork. The chairs may be made of metal or plastic or other non-corrosive material.
What is chair in steel reinforcement?
Chair reinforcement or simply chair bars are small structural elements used to properly place reinforcement bars in position and maintain the proper space between the top and bottom reinforcements.
How far apart do you space rebar chairs?
Only laborers who are experienced with steel reinforcement placement, should install rebar support chairs. Maximum spacing of chairs should not exceed 48 inches.
How far apart are rebar chairs?
Rebar support chairs should be installed by laborers who have experience with steel reinforcement placement. The maximum spacing of chairs should be 48 inches.
How are slab chairs calculated?
The equation is quite simple, which is good news. First, divide the length of your slab’s perimeter beam by 1.2; this will give you the total amount of trench mesh chairs. Next, you need to multiply the number of waffle pods by 4 to find the total number of bar chairs you’ll need.
What is the meaning of chair in construction?
Wire chair is used to support horizontal reinforcing steel, wire mesh or post tension cable and mainly employed for building foundation, underground works, bridge, large building industry-layer or multi-layer steel connection or supporting wide-spaced light steel in slab or deck construction.
What size rebar should I use for a footing?
What Size Rebar for Footings? For most house and garage footings, #4 rebar – or ½” diameter – is used.
Article first time published on
What is spacer bar?
A spacer bar, known as a profile, is the continuous hollow frame which separates the two glass panes in a double glazing window. The spacer bar is bonded to the glass panes via a primary and secondary seal, creating an airtight cavity which is filled with air or gas. … They are used for double glass production.
What is spacer bar in beam?
A steel bar placed in between the two layers of the main reinforcement in the beam is called a spacer bar. Mostly, it used in Beams to space the reinforcements of the different layer as shown in the image below. They are in a tapered position or inserted perpendicularly in between the two layers.
What's the average height of a chair?
Similar to table height, there is no definite industry standard for chair heights. Chair heights generally range up to 17–19 inches (43–48cm) from the chair leg to the top of the seat. Stool heights range from 16–23 inches (40–58cm). These chair heights are standard to fit under tables from 28–30 inches (71–76cm).
What is chair bar in slab?
Chair reinforcement or simply chair rods are small structural elements that are used to place the reinforcement bars in the correct position and maintains the correct space between the top and bottom reinforcements. Chair bars are used primarily on the slab and flooring.
How close to the edge should rebar be?
Reinforcement should also be placed low enough so saw cutting does not cut the reinforcement. For welded wire reinforcement, the Wire Reinforcement Institute recommends steel placement 2 inches below the surface or within the upper third of the slab thickness, whichever is closer to the surface.
How many chairs do I need for wire mesh?
RE: Spacing for wire mesh chairs should have about 1,250+ chairs to handle the 5,000 sq ft of mesh . . . that would be 24″ spacing ~~ 4 sq ft per chair.
What size rebar would be used on a 4 slab?
If you want to make a driveway or patio, you should use a #3 rebar which is 3/8 inch in diameter. If you are constructing walls, piers or columns, I recommend the use of a small piece of reinforcement. I use a 5 inch rebar for building footings.
Is code a reinforcement?
IS: 456 – code of practice for plain and reinforced concrete.
What are Dowelbars?
Dowel bars are short steel bars that are installed in concrete slabs to provide a mechanical connection that doesn’t restrict horizontal joint movement. They are designed to reduce joint deflection and stress in the approach and leave slab by increasing load transfer efficiency.
How many reinforcements are in a slab?
As per ACI Code, In slab, minimum reinforcement shall be 0.18% of gross sectional area (B×D), taking B= 1m width of slab and D= overall depth including cover, then minimum reinforcement will be = 0.18/100× × 100× D = 0.18D sq.
How much should you overlap reinforcing mesh?
Parex USA Standard Mesh (4.5 oz.): Standard mesh seams should overlap a minimum of 2 1/2 inches (6.5 cm) at all edges and meeting ends. Areas where mesh edges overlap should be reviewed to ensure they are acceptably flat before proceeding.
Is code a chair?
HS CodeDescriptionGST%16055500OTHER SEATS Products Include: Plastic Chairs, Massage Chair, Revolving Chair12%16055700BARBERS OR SIMILAR CHAIRS AND PARTS THEREOF Products Include: Massage Chair12%16055800OTHERS Products Include: Ruler, Revolving Chair12%
How do I calculate how much rebar I need?
- find out the total length of rebar.
- multiply that length of rebar by the weight per length associated with the size of rebar that is used.
How far apart do you put rebar in concrete?
Place rebar in a grid pattern with a spacing between bars of approximately 12 inches. In either case, blocks should be used under the reinforcement to keep centered within the concrete.
Can you put too much rebar in concrete?
Using more than recommended will be uneconomical. Moreover, providing adequate spacing between the rebars will be difficult. IS 456:2000 recommends minimum and maximum spacing which has to be fulfilled. One more disadvantage of providing excess rebar is that the placement of concrete will become difficult.
How far apart should rebar be in a block wall?
Spacing. Typical spacing of rebar in a house wall is one bar at every corner, one on each side of every opening for a door or window and bars 4 feet apart between those bars.
What is a spacer block?
Spacer blocks push your blinds away from your wall or door. You need spacer blocks when your trim or molding might keep your blinds from hanging straight down when mounted directly on the wall or door. … One spacer block will push your blinds or shades about 1/4-3/8 of an inch away from the wall.
Why do we use stirrups in beams?
The main aim of providing stirrups in beam is to hold the main reinforcement rebars together in RCC structure. They are provided at proper intervals to beam and columns for preventing them from buckling. Stirrups also protect the RCC structures from getting collapsed during earthquakes.
What are different types of reinforcement steel that we place in beam?
- Hot Rolled Deformed Bars.
- Cold Rolled Steel Bars.
- Mild Steel Bars.
- Twisted Steel Bars.
- Welded Steel Wire.
When side face reinforcement is provided in a beam?
Beams exceeding the depth of 750 mm and subjected to bending moment and shear shall have side face reinforcement. However, if the beams are having torsional moment also, the side face reinforcement shall be provided for the overall depth exceeding 450 mm.
How deep should chairs be?
A seat depth of 15 to 18 inches is recommended for most adults. The width of the seat often tapers by 2″ to 3″ from the front to the rear to allow clearance for legs and clothes in front while allowing elbow room in back. Many chairs have seats that are about 15″ wide in the rear and 18″ wide in the front.
