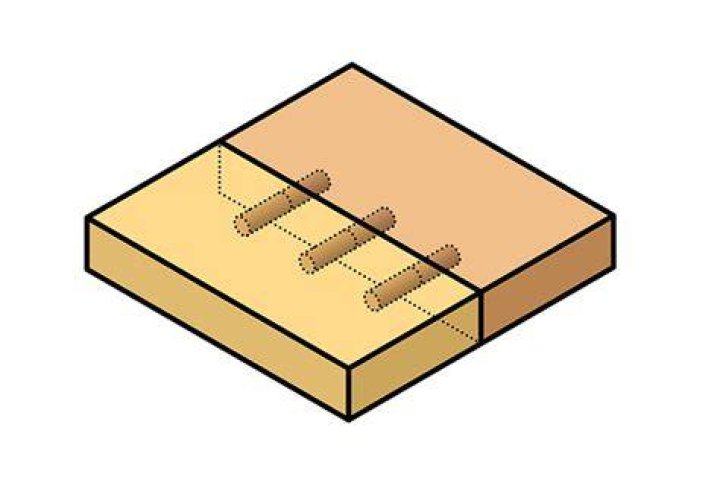

A dowel joint is a wooden joint that is partially or totally held in place by the addition of small round wooden rods called dowels. A dowel construction can provide added stability for the joint of two wood pieces. This kind of joint is popular in many kinds of woodworking.

What are dowel joints used in?

Dowel joints are most commonly used in carpentry and woodworking applications to join two or more pieces of wood. Typical applications where dowel joints are used include (but are not limited to) furniture making, constructing shelves, to reinforce butt joints and toy making.

Are dowel joints strong?

Regarding a dowel pin joint, the glue bond at the bottom of the dowel provides 80 percent of the total holding strength, with a spiral dowel, the sides provide 15 percent of the total strength, and 5 percent comes from the joint between the two core materials.

Where are dowel joints most commonly used?

By far the most common use for dowels is joining together two workpieces with a butt joint. It’s an economical way for the home craftsman to produce a strong, clean looking joint free of nails, staples and screws.

Why are dowels used?

Dowels are used for making strong, accurate joints in wood. They are thicker and sturdier than nails or screws and therefore less prone to breakage. They provide a stronger joint than just using glue as they insert into both the pieces of wood being joined together. This means they cannot easily snap apart.

How many dowels are in a joint?

You’ll need to use at least two dowels for each joint, more if the joint is particularly wide. One rule of thumb is that if the board(s) are less than 6 inches wide, place one dowel 1/4 of the way across the joint, and a second dowel 1/4 of the width in from the opposite side.

Why are wood joints used?

The purpose of wood joints is to provide strength, flexibility, toughness, appearance etc. to the project. So, your joints should offer these characteristics. Some wood joints use fasteners, adhesives, or bindings while others use only the wood elements.

Are dowels better than screws?

. The increased glue surface caused by the glue deeply penetrating the wood gives the dowel more holding power. … Dowels also have superior holding power in modern composite materials such as particleboard and plywood.

What is disadvantage of a dowel joint?

There are two main cons to dowel joints, they can be hard for beginners to make and dowels are not as strong as a dovetail joint or a mortise and tenon joint.

What are the pros and cons of a dowel joint?

• Dowling is a quick process.
• It helps to ensure a neat finish.
• There is no need for screws, nails or other equipment.
• Dowel joints are the strongest type of joints when it comes to woodworking, especially when using multiple rows of dowels.

Article first time published on

How long should dowel joints be?

Twice this length is a common rule of thumb for determining dowel length. For example, if your shortest member is 1” thick and you know your safest drilling depth is 3/4”, then a 1-1/2” dowel should be used. A 1-1/2” length equates to two times the 3/4” thickness. The longer the dowel, the greater the holding strength.

What is another word for dowel?

fastenerrodpegpincylinderboltrivetscrewtholeshaft

When were dowel joints used?

Wooden dowels have been used in manufacturing and woodworking for many centuries. One of the earliest documented uses of wooden dowels was in Japanese shrines in AD 690, which were constructed using only wood, wooden dowels and pegs, and interlocking joints.

What is a wood joint called?

JointDescriptionBiscuitA wooden oval is glued into two crescent-shaped holes.Floating tenon jointAlso known as a loose tenon joint, a type of mortise and tenon joint where both pieces are mortised and the tenon is a separate piece that fits into both mortises.

Which wood joint is strongest?

Mortise and Tenon Woodworking Joints One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years.

What sizes do dowels come in?

Dowel rods usually come in widths between 3.175mm (1/8″) and 50.8mm (2″), but they can be as wide as 304.8mm (12″). They are usually between 304.8mm (12″) and 2.4m (9431/64) long.

Can dowels be loose?

If your dowel is now too small for its hole, wind cotton or linen thread around the tip of the dowel to make it thicker. Then coat the wood and thread with glue, and reassemble. Another way to fit a shrunken dowel into the hole is with a shim. Shims can be purchased where wood is sold.

Can I use dowels in plywood?

Wooden dowels can be used in a variety of ways. They can be used with mitered joints and end to end joints, but I see them most commonly used in edge to face joints. And this doesn’t relate only to plywood, either! You can even use these dowel to connect plywood (or other wood types) to concrete as well.

Which is stronger dowels or pocket holes?

Mortise and tenons were twice as strong as pocket holes. That said, half as strong as a mortise and tenon joint is actually pretty good for something quick and dirty. … The dowel joints were 1.5x stronger than the pocket hole joints.

Are dowel joints as strong as mortise and tenon?

If you have a doweling jig, a dowel joint can be faster. If you have good mortise and tenon equipment, the mortise and tenon is probably quicker. Both joint types are strong enough for most applications, so it’s best to base your choice on how fast and accurately you can make them.

What are dowel screws?

Dowel screws are a headless fastener with a lag thread at both ends. Dowel screws are designed to be inserted into a predrilled pilot hole. The end of the wood thread is designed as a taper that is threaded all the way to its blunt tip. Dowel screws are used as wood to wood fasteners for joining two pieces of wood.

How tight should a dowel fit?

Dowels can run a few thousandths of an inch larger or smaller than their specified diameter, leaving them tight or loose in the mating holes. Here’s an easy way to make sure that the dowels fit snug. For a 1⁄ 4 ” dowel, for example, drill a 1⁄ 4 ” hole in scrap. Test-fit the dowel in the hole.

How much weight can a 3/4 inch dowel hold?

A 1/2″ dowel would be plenty, and I think a 3/4″ dowel (at 3-4″) would be able to hold me without breaking (200 lbs.) I would recommend 1/2″ since that would be plenty strong and still small enough not to be obvious for your display.

Should there be clearance at the bottom of the dowel hole?

However, in reality, dowel pins are commonly up to 0.0002 inches oversized, which becomes an absolute minimum oversize to ensure a clearance hole (slip fit). Beyond that, you should allow maximum manufacturing variation.
