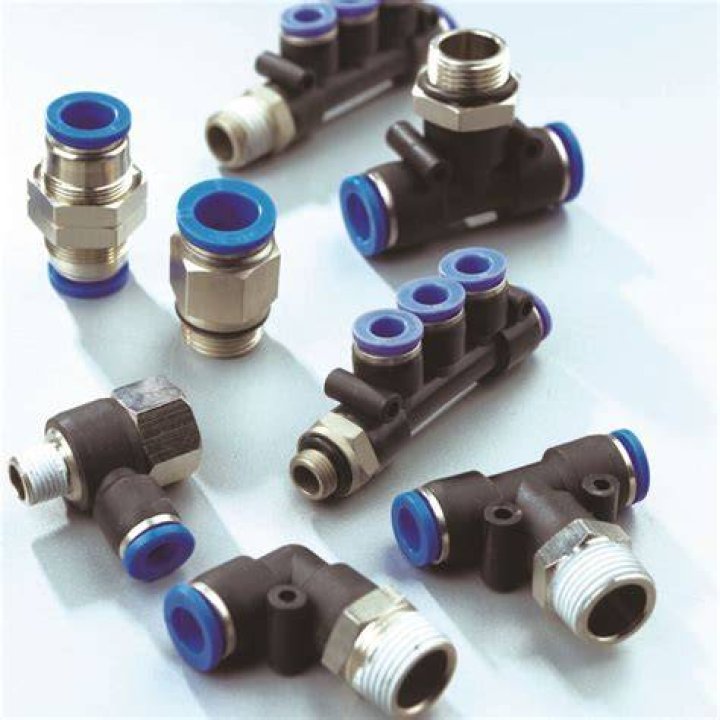

Air fittings feature tighter seals and have lower pressure requirements than hydraulic fittings and are typically offered in various connector types. In addition to connecting pneumatic components and stopping the flow of unused ports, miniature fittings are also used to control air flow pressure and directional flow.

What are air fittings used for?

MST-SCR’s tech blog tells us that air fittings are standardized parts of a piping system that are used for attaching sections of pipe together. Much like an elbow, cross, or coupling, air fittings are an essential part of any pipe system that uses air compression.

What are air compressor fittings?

Air compressor fittings are attachments that maintain a consistent flow of air and pressure throughout the compressor. … Most air compressor fitting sizes follow the National Pipe Tapered (NPT) standard, which denotes the thread size.

What is an air fitting called?

is used to connect compressed air tools to a compressed air line. … In the pneumatics industry, a pneumatic coupling can be referred to by numerous names. For example, an air hose coupling, compressed air coupling, pneumatic coupling or compressor coupling refer to the same product.

Can I use air fitting for water?

Yes and they are the best fittings to use for a system as 99% of the time they are leak free,I’ve got John guest fittings in my van and static system and they have never leaked I’ve always used them.

What thread are air fittings?

Thread sizes are typically 1/8″, 1/4″, 3/8″, 1/2″ or 3/4″ pipe thread. A fitting that has female pipe threads (FPT) can only mate to something with male pipe threads (MPT) that are of the same pipe thread size. Nominal – the inner diameter size that the compressed air passes through.

What are the two types of air couplings?

There are two main types of air compressor couplers : Automotive and Industrial. The chart below shows how to identify which connector style you have. As you can see, Industrial style couplers have two striped going across the fitting, whereas the automotive style only has one.

How do I know if my air line fittings?

1. Take your hose and a length of string.
2. Wrap the string around the hose.
3. Keep the string running around the diameter straight and true.
4. Mark the string across both ends.
5. Layout the sting next to a tape measure.
6. Read the length of the string from mark to mark.

What are the different styles of air fittings?

• Common Quick Connect Plug Types (left to right): Automotive, Industrial, and ARO.
• Left: Industrial Plug. Right: High Flow Plug.
• Left: Industrial Plug. Right: High Flow Plug.
• Top: M-style Coupler, Bottom: Universal Coupler.
• Top: Manual Coupler, Bottom: Automatic Coupler.

Are air compressor fittings universal?

Most designs are standard, and it is expected that there will often be no issues when interchanging. However, small differences in fit can translate into significant changes in performance. For example, universal couplers can work with both industrial and automotive plugs.

Article first time published on

What is the difference between air duct and air connector?

What is the difference between an Air Duct and Air Connector? Both Air Ducts and Air Connectors are tested per the UL 181 standard. Air Ducts are required to pass fifteen (15) UL 181 tests whereas an Air Connector is only required to pass twelve (12) tests. … There are no installation length restrictions on Air Ducts.

Can u use air hose for pressure washer?

A pressure washer typically is a standalone unit that is connected to a water supply by a garden hose. However, you can use an air hose for a pressure washer by using a pressure washer attachment that connects to the air hose of an air compressor and to a garden hose.

What is the difference between air hose and water hose?

The compressed air may be used for functioning a nail-gun, sander, paint guns and many other appliances and tools that don’t work on electricity. Water hoses may be used to deliver water for removing loose paint, grime, mold, dust, mud, and dirt from surfaces such as vehicles, buildings, and concrete surfaces.

Are industrial or auto air fittings better?

Style: there are two basic styles of quick connect fittings – automotive and industrial style. We often get asked which style is better? There is no difference in performance or longevity between the styles. It is just a matter of preference.

Do air fittings need Teflon tape?

A customer’s recent stubborn coating leak confirmed why we discourage the use of Teflon tape on fluid fittings. … The NPT thread design makes the seal between the male and female tapered threads on the air fittings.

Is UNF and NPT the same?

UNF is Unified Fine thread, the successor to the obsolete National Fine (NF) thread. NPT National pipe thread is used (in the U.S.) for plumbing of water and gas pipes, and threaded electrical conduit. NPT is defined by ANSI/ASME standard B1. … NPTF is National Pipe Thread Fuel according to ANSI/ASME B1.

Whats the difference between NPT and Nptf?

20.3. Differences in NPT and NPTF threads lie in the major and minor diameters, as well as the root and crest of the threads. NPTF thread crests call within the same parameters as NPT requirements, but NPTF crests have a smaller range. … The difference lies in the Plug Gage Major Diameter and Ring Gage Minor Diameter.

How are air fittings measured?

To find the correct fitting size, measure the outer diameter of the threads. For a male thread, measure the outer diameter (OD) of the thread. For a female thread, measure the top diameter of the opening (OD).

Are quick-connect fittings universal?

Universal interchange quick-connect air couplings are designed to work with other interchanges accepting multiple styles of nipples, including industrial, Tru-Flate, and ARO. The push-to-connect style has a protective sleeve that slides forward until the plug ejects.

Do compressors come with hoses?

They can kink and become inflexible in colder temperatures. These qualities make PVC hoses, which are often included free with air compressors, difficult to work with, prompting many DIYers to upgrade to a different material.

How do push in fittings work?

Push-fit fittings work by gripping the pipe being fixed with their ring. The ring usually has some teeth made of steel. The fitting also has one or several O-rings within it that create a tight seal around a pipe.

What is the difference between flexible duct and flexible air connector?

The listing label on “flexible duct” is rectangular in shape and states “Listed Air Duct.” The listing label on a flexible air connector is circular in shape and states “Listed Air Connector.” Both are listed to UL 181 requirements. The length of a “flexible air connector” is limited to 14 feet maximum.

What is a flexible air connector?

FLEXIBLE AIR CONNECTOR. A conduit for transferring air between an air duct or plenum and an air terminal unit or between an air duct or plenum and an air inlet or air outlet. Such conduit is limited in its use, length and location. 603.6.1 Flexible air ducts.

What are some of the limitations on the use of flexible air connectors?

The proposed code language It says, “Length limitation: Factory-made flexible air ducts and connectors should not be more than 5 feet (1,524 mm) in length and shall not be used in lieu of rigid elbows or fittings.”
