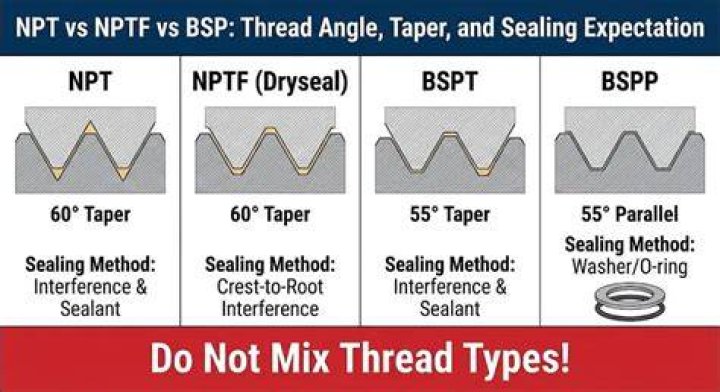

While NPT and NPTF are both designed to screw together, NPT requires a seal to be leak proof while NPTF do not. The L1 gauge requirements for NPT and NPTF differ for threads more than ½ in. in size, and thus, are not interchangeable. The difference lies in the Plug Gage Major Diameter and Ring Gage Minor Diameter.

Is NPT and pipe thread the same?

NPT is the abbreviation for National Pipe Thread Tapered, which is the U.S. standard for tapered threads used to join pipes and fittings. They were established as a standard by the American National Standard Pipe Thread, commonly referred to as the national pipe thread standards.

Is NPT and MPT the same?

Definition of Pipe Thread AcronymsNPTNational Pipe Thread (tapered)FPTFemale Pipe Thread (interchangeable with NPT)FIPFemale Iron Pipe (interchangeable with NPT)MPTMale Pipe Thread (interchangeable with NPT)

What does NPT fitting stand for?

NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.

Is IPS same as NPT?

National Pipe Tapered (NPT) and Iron Pipe Straight (IPS) are two commonly used thread standards in plumbing. … NPT and IPS nominal sizes are always the same.

Do NPT threads need Teflon tape?

NPT threads are designed to be used with a sealing compound such as Teflon tape to create a leak-free seal, whereas NPTF threads form a mechanical seal by crushing the entire thread form. If NPT is used without a sealing compound then there can be leakages or other unpleasant issues.

What is G thread?

G (supposedly from German/English “Gas”) are the cylindrical pipe threads used on originally inch based pipes. The internal (conical) pipe thread is is described as “GCon”. The size designation (like 3/8″) does not mean actual thread OD; it is the internal diameter of the pipe, on which it is used.

What is the difference between NPT and SAE?

What’s the difference between SAE & NPT threads? The biggest difference is SAE is a straight thread, it needs additional O-ring, gasket or sealing surface to form a seal; NPT thread is a taper thread, it can form a seal using its thread pitch.

What does UNF and UNC stand for?

Page 2. Unified form thread designations are represented by abbreviations such as UNC (unified coarse), UNF (unified fine), UNEF (unified extra fine), UNS (unified special) and UN (unified constant pitch), with the thread major diameter preceding the designation for example, 9/16” UNC, 9/16” UNF.

What is done with pipe threads to ensure good seals?

Simply put, thread sealant is a material that fills the gaps at threaded pipe connections, preventing fluids from leaking out. Besides creating fluid-tight seals, pipe thread sealants also lubricate the threads, making assembly quicker. Pipe thread sealants come in two general varieties—paste and tape.

Article first time published on

What is a female NPT?

Sanitary Stainless Steel Fittings National Pipe Taper (NPT) are a standardized fitting that is commonly used for joining pipe. Due to the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will tighten the further it is threaded into the female.

Why is NPT tapered?

The taper on NPT threads allows them to form a seal when torqued as the flanks of the threads compress against each other, as opposed to parallel/straight thread fittings or compression fittings in which the threads merely hold the pieces together and do not provide the seal.

What does MHT mean in plumbing?

Common acronym designations have been adopted to easily describe the different types of fittings: MHT = Male Hose Thread. FHT = Female Hose Thread. MPT= Male Pipe Thread. FPT = Female Pipe Thread.

What does FPT mean in plumbing?

FPT stands for Female Pipe Threads and FIP stands for Female Iron Pipe which both indicate a female fitting with NPT threads.

What does IPS mean in plumbing?

Iron Pipe Size (IPS) is an old pipe sizing system that came was started in the early 19th century. It remained in effect until after WWII and was mainly used in the US and UK. When IPS was introduced, pipes were cast in halves and welded together.

What is IPS supply line?

Iron pipe size, or IPS, refers to an older system that categorizes the thickness of pipe walls, still used by some manufacturers of iron and polyvinyl chloride, or PVC, piping that connects to faucets for home and business use.

What does IPS stand for on a ball valve?

AbbreviationType of ValveIPSIron Pipe SizeISRSInside Screw RSGVGate ValveMJMechanical Joint

What thread is black iron pipe?

Schedule 80 Threaded on Both Ends Pipe & Nipples.

What is a ZG thread?

ZG is commonly called tube cone, that is, the thread is made of a conical surface. … The metric thread is a 60-degree equilateral tooth type, and the inch thread is an isosceles 55-degree tooth type. 60 degrees. Metric threads are used in metric units, and American-English threads are used in imperial units.

What is an RC thread?

BSPP is parallel thread, BSPT, R and Rc are taper thread, but Rc is female BSPT thread. BSPP and BSPT (in most cases) have different threads per inch (TPI) (and consequently the pitch).

What is a PG thread?

The PG stands for Panzer-Gewinde . This is a German type thread. The Main difference on this vs NPT and Metric is that the depth of the thread is smaller but has a larger flank angle, which makes it have a wider pitch along with a straight thread.

What is the difference between white and pink Teflon tape?

Teflon tape is less messy High-density pink tape is used on water lines; yellow tape is designed for gas-line use. White tape (often low density) is used on water lines. Teflon tape, which is available in 1⁄2-in. to 1-in.

How many times should you wrap Teflon tape around pipe threads?

You always want to wrap seal tape around threaded pipe fitting in a clockwise direction. In most cases for a new joint you should apply only two or three wraps of tape. On older fitting where the threads may be damaged you may consider adding a few more wraps, but keep the number of warps to a minimum.

Do brass to brass fittings need Teflon tape?

Often referred to as a plumber’s best friend, Teflon tape or thread sealant is a simple yet effective material found in tradie toolkits worldwide. … In fact, it’s essential to use thread tape for those household brass fittings unless a rubber seal or gasket is in place.

What is the difference between UNC and NPT?

UNC is Unified Coarse thread , the successor to the obsolete National Coarse (NC) thread. … NPT National pipe thread is used (in the U.S.) for plumbing of water and gas pipes, and threaded electrical conduit. NPT is defined by ANSI/ASME standard B1. 20.1, American National Standard Taper Pipe Thread.

Is SAE thread the same as UNF?

There are two general types of SAE bolts (sometimes referred to as machine screws). UNF (fine thread pitch) has more threads per inch than the same diameter bolt in the UNC (coarse thread pitch). Nut dimensions are maximums per SAE.

What is the full form of BSW thread?

The principal features of the British Standard Whitworth (BSW) thread form are that the angle between the thread flanks is 55 degrees and the thread has radii at both the roots and the crests of the thread.

What is JIC hose?

JIC 37⁰ Flares: The Joint Industrial Conference (JIC) fitting is the most common hydraulic connection style. It consists of parallel threads and a 37⁰ cone on the fitting end that attaches to either a flared tube or hose fitting.

What is SAE Orb?

SAE Straight Thread O-ring or O-Ring Boss (ORB) is a multipurpose thread ideal for medium and high-pressure hydraulic applications. The male thread contains an o-ring at the base which mates with a chamfer machined into the female counterpoint, which makes this thread type ideal for non-leak applications.

What is SAE 8 port size?

Inch sizeDash sizeFemale thread O.D (in)1⁄4-413⁄325⁄16-515⁄323⁄8-617⁄321⁄2-811⁄16

Is pipe thread sealant better than Teflon tape?

A pipe joint compound, also called pipe glue, pipe dope, or PVC glue, is a putty-like adhesive that can be white or clear. … Pipe dope is generally stronger seal than Teflon tape, which is why plumbers and other professionals use it rather than tape for seals that are permanent.
