The definition of a solenoid valve is an electro-mechanical valve that is commonly employed to control the flow of liquid or gas. There are various solenoid valve types, but the main variants are either pilot operated or direct acting.

What type of valve is a solenoid valve?

A solenoid valve is an electromechanically operated valve. Solenoid valves differ in the characteristics of the electric current they use, the strength of the magnetic field they generate, the mechanism they use to regulate the fluid, and the type and characteristics of fluid they control.

How do solenoid valves work?

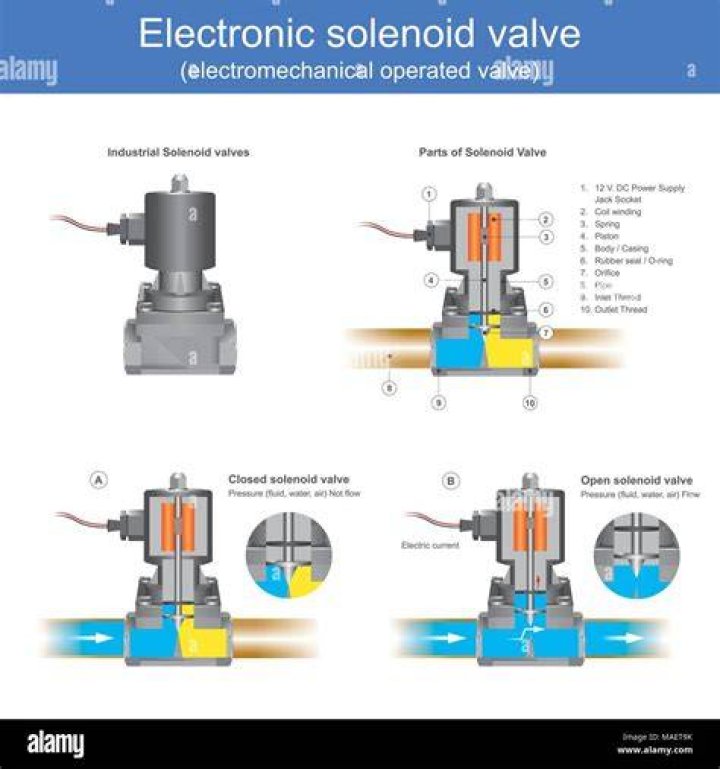

Solenoid valves work by employing the electromagnetic coil to either open or close the valve orifice. When the coil within the solenoid is energised, the plunger is lifted or lowered to open or close the orifice. This is what in turn controls flow, regulating the movement of gas or liquid.

Does control valve have solenoid?

A solenoid control valve has two main components: a solenoid on top and the valve system on the bottom. The electromagnetism caused by currents moves the plunger either up or down to pinch and control the flow.

Are solenoid valves automatic?

Solenoid valve applications Irrigation systems use solenoid valves with automatic control. Dishwashers and washing machines use solenoid valves to control the flow of water.

What is called solenoid?

solenoid in Electrical Engineering A solenoid is a coil of wire wound on a cylinder, that has a length that is large compared with its radius. A solenoid is a long, thin loop of wire, often wrapped around a metallic core, which produces a magnetic field when an electric current is passed through it.

What is valve and types?

• Isolation Valves: Ball, butterfly, diaphragm, gate, pinch, piston, and plug valves.
• Regulation Valves: Ball, butterfly, diaphragm, globe, needle, pinch, and plug valves.
• Safety Relief Valves: Pressure release and vacuum relief valves.

Why are solenoid valves used?

Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas.

What is the difference between solenoid valve and pneumatic valve?

A solenoid valve is one that operates by use of electricity. … A pneumatic valve is similar, but instead of utilizing an electromagnetic force to move the plunger and open or close the valve, a compressed air line is used to force the plunger to move.

Is solenoid a coil?

A solenoid is a long coil containing a large number of close turns of insulated copper wire. Its shape is somewhat like a spiral loop of wire. It may be regarded as a circular coil with very large number of turns.

Article first time published on

How does a valve work?

A valve is a device or natural object that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. … In an open valve, fluid flows in a direction from higher pressure to lower pressure.

What is a solenoid valve in a car?

A solenoid valve, or magnetic valve, is an electrically controlled valve to control fluid flow (liquids, gases). … They are used for various applications in the installation.

How do I know if my solenoid valve is working?

Sometimes you find a normal read on the digital multimeter but the coil is actually not functioning. At this time, you can use a screwdriver and put it near the armature then energize the solenoids. If there is a magnet in the presence, the coil is good. Otherwise, it is bad, and you need to change a new one.

What is a solenoid valve for irrigation?

A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. Solenoid valves are also called electromagnetic valve, water valve, electric valve or electro valve.

What are gate valves made of?

Gate valves are typically constructed from cast iron, cast carbon steel, ductile iron, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are used in ultra-high vacuum chambers to isolate regions of the chamber.

What are the 4 types of valves?

• Tricuspid valve. This valve is located between the right atrium and the right ventricle.
• Pulmonary valve. The pulmonary valve is located between the right ventricle and the pulmonary artery.
• Mitral valve. This valve is located between the left atrium and the left ventricle. …
• Aortic valve.

How do you identify a valve?

The tag itself should identify the valve, usually by showing the valve number. The type of valve and the system the valve is part of typically are identified. For example, the valve tag might read “200# Main Steam Shut Off.” This identifies the valve as the shutoff valve in the 200-pound main steam line.

What system is valve?

Valves are mechanical devices that controls the flow and pressure within a system or process. They are essential components of a piping system that conveys liquids, gases, vapors, slurries etc..

What is another word for solenoid?

In this page you can discover 14 synonyms, antonyms, idiomatic expressions, and related words for solenoid, like: alternator, control valve, stator, injector, voltage regulator, transformer, microswitch, wastegate, ignitor, valve and 3-phase.

What is solenoid with example?

A solenoid is just a coil of wire, but when you run a current through it, it becomes an electromagnet. … Examples of electromagnet solenoids include hotel door locks, water-pressure valves in air conditioning systems, MRI machines, hard disk drives, speakers, microphones, power plants, and cars.

What is difference between solenoid and electromagnet?

An electromagnet is an electrically induced magnet. … A solenoid is a cylindrical coil of wire acting as a magnet when carrying an electric current. A solenoid is the same as an electromagnet but without a core of material that can be magnetised i.e. iron (which is magnetically soft).

Does a solenoid valve need air?

Solenoid valves eliminate the need for manual or pneumatic control of a pneumatic circuit and only require an electrical input (and air pressure for piloted valves) to operate, this makes them easy to program and install in a wide variety of applications.

Can a solenoid valve be pneumatic?

Pneumatic solenoid valves are electromechanical devices that control the flow of air or process gas. They are mostly used for controlling pneumatic actuators such as cylinders, turbines (pneumatic motors), diaphragms, and tubes.

What is the difference between an actuator and a solenoid?

Voice coil actuators are typically used in focusing applications, oscillatory systems, mirror tilting, and miniature position control. … Solenoids consist of a coil that is contained in a ferrous steel housing and a movable steel slug or washer. An electromagnetic field is generated by current being applied to the coil.

Is a solenoid an input or output device?

Output devices considered include relays, contactors, solenoid valves and motors.

Are solenoid and coil the same?

A coil is a normal bundel of wire wrapped circularly, whereas a solenoid is the circular coil of insulated wire which acts as a magnet when electric current flows through it.

Which type of coil is solenoid?

Which type of coil is a solenoid? Explanation: Solenoid is an electromagnetic coil. When an electric current is supplied to the solenoid, the magnetic field is induced in it and due to this the spool shifts to the selected position. Explanation: The iron is used in solenoids for increasing the magnetic field strength.

What is the difference between solenoid and toroid?

SolenoidToroidMagnetic field is created outsideMagnetic field is created withinMagnetic field is created outsideIt does not have a uniform magnetic field inside it.Has uniform magnetic field inside it.Magnetic feild Outside :- magnetic field (B)

What are the parts of a solenoid?

• Coil. The coil is one of the main parts of the solenoid which consists of an insulated copper wire wound tightly around a core tube. …
• Core. The core, also referred to as the armature or plunger, is the moving part of a solenoid. …
• Core Spring. …
• Core Tube. …
• Fixed core. …
• Diaphragm. …
• Stem. …
• Disc.

Do all cars have a solenoid?

All modern cars also use the starter solenoid to move the starter pinion into engagement with the ring gear of the engine. The starter solenoid is sometimes called the starter relay, but many cars reserve that name for a separate relay which supplies power to the starter solenoid.

What kind of solenoids are in a car?

Furthermore, there are various kinds of solenoids, including the transmission shift solenoid, the lockup solenoid, and the transmission control solenoid. There are a variety of reasons as to why one or more of your transmission’s solenoids can fail.
