Dry cell batteries create electrical energy by converting chemical energy into electricity. … These materials are placed within the electrolyte paste within the battery. They react with each other through a chemical process in which the electrolyte (carbon or manganese dioxide) reacts with the zinc, creating electricity.

How is electricity generated in a dry cell?

Electricity is produced through the dry cells from electrochemical energy. Hence, Option 1 is correct. A common dry cell is a zinc-carbon cell. The electrolyte is immobilized as a paste by a dry cell, with just enough humidity in it to allow current to flow.

How do wet cells work?

Wet-cell batteries — such as lead-acid — contain a mixture of lead (unsurprisingly), lead oxide, plates, and then an electrolyte solution containing a water and acid mix. … When a load is attached to the terminals, a chemical reaction occurs between the lead, lead oxide, and electrolyte solution (water and acid).

What is the function of the dry cell in an electric circuit?

(How They Generate Electrical Power) The common battery (dry cell) is a device that changes chemical energy to electrical energy. Dry cells are widely used in toys, flashlights, portable radios, cameras, hearing aids, and other devices in common use.

Are dry cell actually dry?

Dry cell are not actually dry because they contain electrolyte in the form of paste or gel with enough moisture.

How does an alkaline dry cell work?

These free electrons congregate inside the anode (the bottom, flat part of an alkaline battery). As a result, the two electrodes have different charges: The anode becomes negatively charged as electrons are released, and the cathode becomes positively charged as electrons (which are negatively charged) are consumed.

Are dry cells rechargeable?

A dry cell battery is one that cannot be recharged and is also known as a primary battery. … A primary or dry cell battery is a one that is designed to be used once and then discarded. Drycell batteries cannot be recharged with electricity and reused like secondary cell or rechargeable batteries.

What energy is stored in a dry cell?

The energy stored in a dry cell is in the form of chemical energy. The cell consists of one or more electrochemical cells that convert the chemical energy into electrical energy.

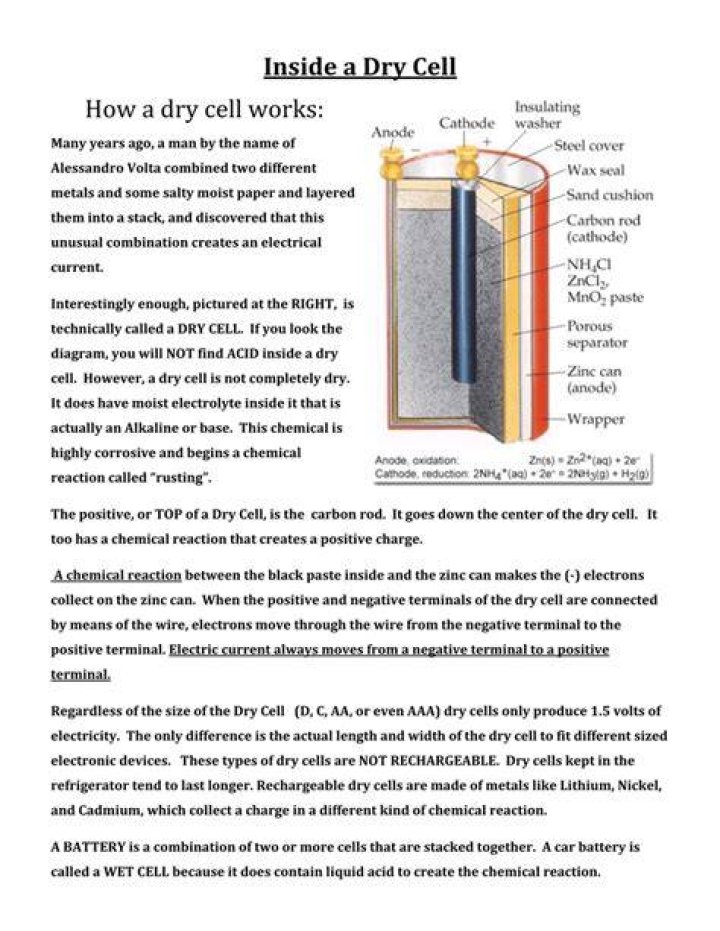

What is inside a dry cell?

A standard dry cell comprises a zinc anode, usually in the form of a cylindrical pot, with a carbon cathode in the form of a central rod. The electrolyte is ammonium chloride in the form of a paste next to the zinc anode.

Why zinc is used in dry cell?

Zinc is a medium reactive metal and is oxidized slowly by air.It is electropositive as compared to carbon which is used as positive electrode in dry cell.So, it donates electrons and a current is produced. It is not very reactive and is consumed slowly, so it is used in dry cells.

Article first time published on

Where are dry cells used?

Leclanché battery, now called a dry cell, is produced in great quantities and is widely used in devices such as flashlights and portable radios.

What are two terminals of a dry cell?

A cathode is called the positive terminal and an anode is called the negative terminal.

Are car batteries wet or dry cell?

Lead-acid wet cell batteries are still commonly used as car batteries and for backup power in buildings. In this type of wet cell battery, both electrodes are lead plates, which are suspended in a tank of sulphuric acid, acting as the electrolyte.

Is Lithium Ion a wet cell?

A wet-cell battery is the original type of rechargeable battery. … Smaller dry-cell batteries, such as alkaline or lithium ion, are typically used in portable electronics, such as toys, phones and laptops.

What is the best electrolyte for a wet cell?

The electrolyte solution is any common non-neutral pH liquid, such as citrus juice (lemon or lime works well) or vinegar for the acids, or ammonia as a base. The other essential materials for making the wet cell are two metals, each of which loses electrons at a different rate.

Are lithium ion batteries dry cell?

Lithium ion batteries represent a type of dry cell battery well-suited for use in cell phones, due to its high energy density, or its power stored versus weight.

Can you jump a dry cell battery?

Important Jumpstarting Safety Tips Never try to jump corroded, cracked, leaking or visibly damaged batteries. Never try to jump frozen batteries. Never try to jump dry batteries. Don’t touch the clips together.

Can you revive a dry cell battery?

In many cases, however, you can revive or recondition a NiCad battery and extend its usable life without too much trouble. … Insert the NiCad batteries into the charger. Charge the batteries until 100 percent full. Reinsert the batteries into the device.

Which one is oxidized in dry cell?

For a dry-cell battery to operate, oxidation will occur from the zinc anode and reduction will take place in the cathode. The most common type of cathode is a carbon graphite. Once reactants have been turned into products, the dry-cell battery will work to produce electricity.

What's inside a AA battery?

The average alkaline AAA, AA, C, D, 9-volt or button-cell battery is made of steel and a mix of zinc/manganese/potassium/graphite, with the remaining balance made up of paper and plastic.

Why do batteries go flat?

Batteries go flat as a result of the electrolyte’s chemicals drying up within the battery. In the case of alkaline batteries, this is when all of the manganese dioxide has been converted.

Why do AA batteries corrode?

Why Does Battery Corrosion Occur? Science! Corrosion is caused by a completely expected chemical reaction due to hydrogen gas building pressure and ultimately needing to escape from inside a battery. Batteries (especially alkaline batteries) have a tendency to leak with age and other factors, such as humidity.

Is Dry Cell A galvanic cell?

Zinc–carbon batteries or ‘dry’ cells are galvanic cells that have been well known for 140 years. There are two types of zinc–carbon batteries in use today, the zinc chloride and the Leclanché systems, providing an economical power source.

Who invented dry cell?

Further improvements came in the 1880’s when Carl Gassner, a German scientist, invented the first dry cell.

Why ammonium chloride is used in dry cell?

A dry cell is a battery which comprises zinc anode and carbon cathode with ammonium chloride being used as a semi-solid paste between both the electrodes. It is used to facilitate ion mobility through the system to pass the required charges to the electrodes. as an electrolyte for the whole system.

What is cathode in dry cell?

The cathode is a central carbon rod, surrounded by a mixture of carbon and manganese(IV) dioxide (MnO2). … A zinc-carbon dry-cell batteryAn illustration of a zinc-carbon dry cell. In it, a zinc casing acts as the anode, surrounding a carbon rod, which acts as a cathode.

Why is a battery called a dry cell?

Batteries: Dry Cells Many common batteries, such as those used in a flashlight or remote control, are voltaic dry cells. These batteries are called dry cells because the electrolyte is a paste. They are relatively inexpensive, but do not last a long time and are not rechargeable.

What kind of cell is used in a wrist watch?

Button cells are used to power small portable electronics devices such as wrist watches.

How are cells joined in a torch?

A torch bulb is made up of spherical glass which is attached to a metallic base. … The positive pole of the cell should be connected to the positive terminal of the bulb. Similarly, the negative pole of the cell should be connected to the negative terminal of the bulb.

How many electrodes are there in a dry cell?

A dry cell is a device that generates electricity based on chemical reactions. When the two electrodes of the cell are connected via a closed path, then the cell forces the electrons to flow from one end to the other. The flow of electrons causes the current to flow in the closed circuit.

Is a flashlight a wet or dry cell?

A flashlight battery is a “dry” cell that has a limited life. The “wet” cell battery used in automobiles can be re-charged and used for years. Wet cell batteries contain liquid, usually acid. The chemical reactions occur more efficiently in liquid.
