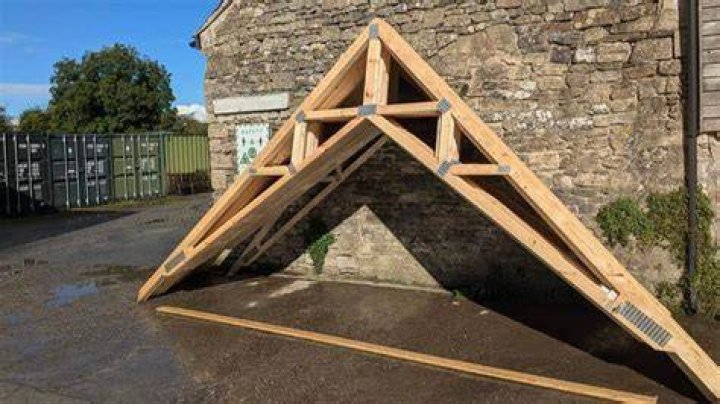

Can you sister trusses

Sister refers to attaching an additional framing member alongside an existing member. With roofs, this is done to improve the load value of rafters when installing roof-mount air conditioning equipment or cutting openings for skylights. In some cases, you may sister rafters to repair a sagging roof.

Can you sister roof trusses?

Can you splice a truss?

Field splicing is a method used to connect two or more truss sections into a single component. There are many reasons why field splicing may be used. … Whatever the reason, field splices are another way to allow for greater flexibility in truss manufacturing, shipping and installation.

How much does it cost to sister a truss?

Fixing roof structures generally starts at between $350 and $800. Repairing the truss may require going into the highest level of the interior of the home and performing other repairs on the exterior of the home.

How long does a sister rafter have to be?

To sister roof rafters, you should use the same sized lumber as the rafter. The length of the sistered rafter should extend at least 3′ past the problem area on the existing rafter, on both sides.

Are trusses cheaper than rafters?

Price: When the cost of a prefabricated truss package is compared to the material and labor costs to build rafters on site, the cost of trusses is 30% to 50% less.

Is it cheaper to build or buy trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

Can you splice the bottom chord of a truss?

A bottom chord can be multiple pieces of lumber secured by a metal plate known as a splice, either at a joint or mid panel. While a vast majority of trusses will have bottom chords of the same species and grade, changes in both lumber species and grade are possible at splice points.

Can I make my own roof trusses?

Yes. 2x4s are commonly used to build trusses for smaller structures like carports, detached garages, and sheds. How big of a truss do I need for a 10×16 shed? The bottom chord of the truss will need to be the same length as the floor of the shed, plus 0.25 inches to ensure a proper fit.

How much do Sistering joists overlap?

How much sister should joists overlap? There is no need for sister joists to overlap for more than 6 inches. Many overlaps are also wrong because if you place the load in the joist’s center, the end of the overlap may sag slightly.

Article first time published on

What is the difference between a ridge board and a ridge beam?

A ridge beam is a structural member used to support the ends of the rafters at the ridge, transferring it’s loads to posts or gable end walls. … A ridge board is a non-structural member that serves as a prop for opposing rafters to rest against and connect to.

Can trusses be repaired?

A great benefit to trusses is that, even when damaged by plumbers or water leaks, they can be repaired to perform as originally intended. Since trusses are engineered, they have a benefit over other structural members in that they offer greater flexibility when it comes to repair options.

Can you repair a broken truss?

Determine the size of the roof truss to be repaired. Trusses come in different lumber widths (2-by-6 or 2-by-8). … Secure the patch on one side of the break with the wood screws and have your helper apply up pressure until the truss in realigned. Secure the other side of the patch with wood screws.

How much does it cost to replace roof trusses?

Roof Truss Prices For a 2,000-square-foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each.

What causes roof trusses to split?

Rafters can split as a result of excessive weight on the roof or damage from fallen objects, such as trees or power poles. Regardless of the cause, a split rafter must be repaired to ensure the integrity of the roof’s support system.

Can you sister rafter tails?

The quick fix for a rotten rafter tail that’s not too far gone is to “sister” another piece of wood onto the rotten member. … Just cut a piece of two-by-four in the same shape as the exposed portion of the rafter and nail or screw the two pieces together.

What bolts to use for Sistering joists?

Ideally, the sister joint should be both glued with construction adhesive and bolted through with at least 3/8” diameter bolts, forming a “W” pattern, with the bolts spaced about 8” apart. This should extend through the entire three feet of wood that is on either side of the damaged section.

Can you sister joists with 2x4?

Nailing two 2x4s together will work to span about three joists, unless the sag is under a weight-bearing wall. … But it’s usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

Does Sistering floor joists work?

Sistering joists means beefing them up with additional material. Doing so strengthens weak joists and can help straighten sagging joists. Framing lumber is the typical choice for sistering material, but engineered lumber products actually add more stiffness than dimensional lumber.

Are trusses or rafters stronger?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

How far can a truss span without support?

A roof truss can span up to 80′ without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40′ are the most common in today’s homes.

What's the difference between rafters and trusses?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

Is it OK to cut a roof truss?

Home owners should avoid cutting or modifying their roof trusses. These trusses are usually engineered by a structural engineering company to carry a specific roof load. When a truss becomes damaged, cut or modified there is a chance of a structural overload or that they will not perform properly.

Do roof trusses need support in the middle?

Generally, you don’t need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

Do you need a ridge beam with trusses?

Manufactured roof trusses do not need a ridge rafter or ridge beam. They have triangulation built into them, so any additional structural members to resist the lateral loads are not necessary.

What are the 3 types of trusses?

Gable Trusses. A variety of the trusses shown above fit into the common or gable truss category, including the King Post, Queen Post, Howe, and Double Howe trusses. …
Hip Truss. …
Scissor Roof Truss. …
Attic Truss. …
Mono Truss. …
North Light Roof Truss. …
Flat Truss. …
Gambrel Truss.

What is the strongest truss design?

In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design. Through our experiment it was found that the bridge design that minimized the maximum compression force was the Howe Bridge.

Are trusses 2x4 or 2x6?

Trusses only use 2×4 lumber and are constructed using a “web” of 2x4s for strength. Rafters simply rely on a center ridge beam and the outside walls for support. While there are benefits to both, only rafters vary in the size of lumber that is used.

How do you strengthen the bottom chord on a truss?

Jack up the centre of the trusses, then reinforce each bottom chord with a 2×4 that spans the entire width of the garage.
Jack up the centre, reinforce (as above), and also replace any wood strapping with steel mending plates, hurricane ties, etc.)
Leave it as is, strap up drywall, pray to the gods.

What is a truss bottom chord?

BOTTOM CHORD The horizontal (and inclined, ie. scissor trusses) member defining the lower edge of a truss, carrying ceiling loads where applicable. This member is subject to tensile and bending stresses.

What are the requirements for bottom chord bracing?

A permanent bottom chord bracing system is required to restrain truss bottom chords against lateral buckling under wind uplift. A direct fixed or battened ceiling is generally sufficient to perform this function except in some situations.
